144

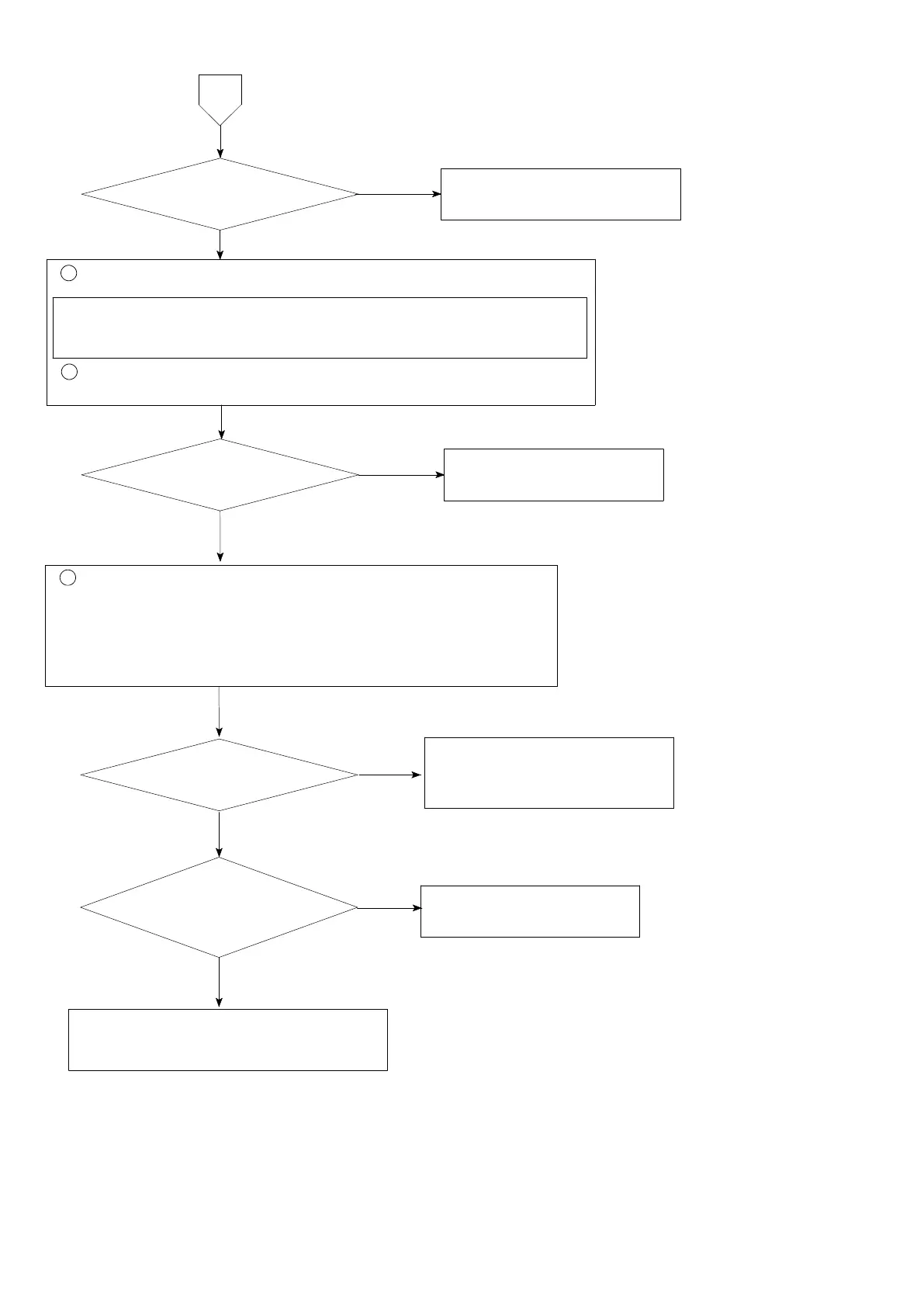

Set the connecting range to DC V for measuring instrument such
as tester and so on.
1
Measure the voltage between + and on voltage output terminal.
Load resistance
is greater than or equal
to 5 kΩ.
Setting is correct.
Varies to zero,
half and full.
2
Check the setting related with voltage output.
FUNC−16 Selection of target for analog output.
FUNC−17 Display value when analog output is minimum.
FUNC−18 Display value when analog output is maximum.
(Refer to the section 8. Function Mode.)
Contact with Minebea.
Set the load resistance greater
than or equal to 5 kΩ.
3
Check the operation on voltage output in the Check Mode.
(Refer to the paragraph 7−14)
Set correctly.
Refer to the section 8. Function
Mode and the paragraph 9−1.
Set the HOLD input open.
11
Inform Minebea about the contents of
failure and situation at site in details.
NO
YES
YES
YES
YES
NO
NO
NO
Either the HOLD
of external control input or
BCD output is used.
