Minebea CSD-814B

To Next Page

To Previous Page

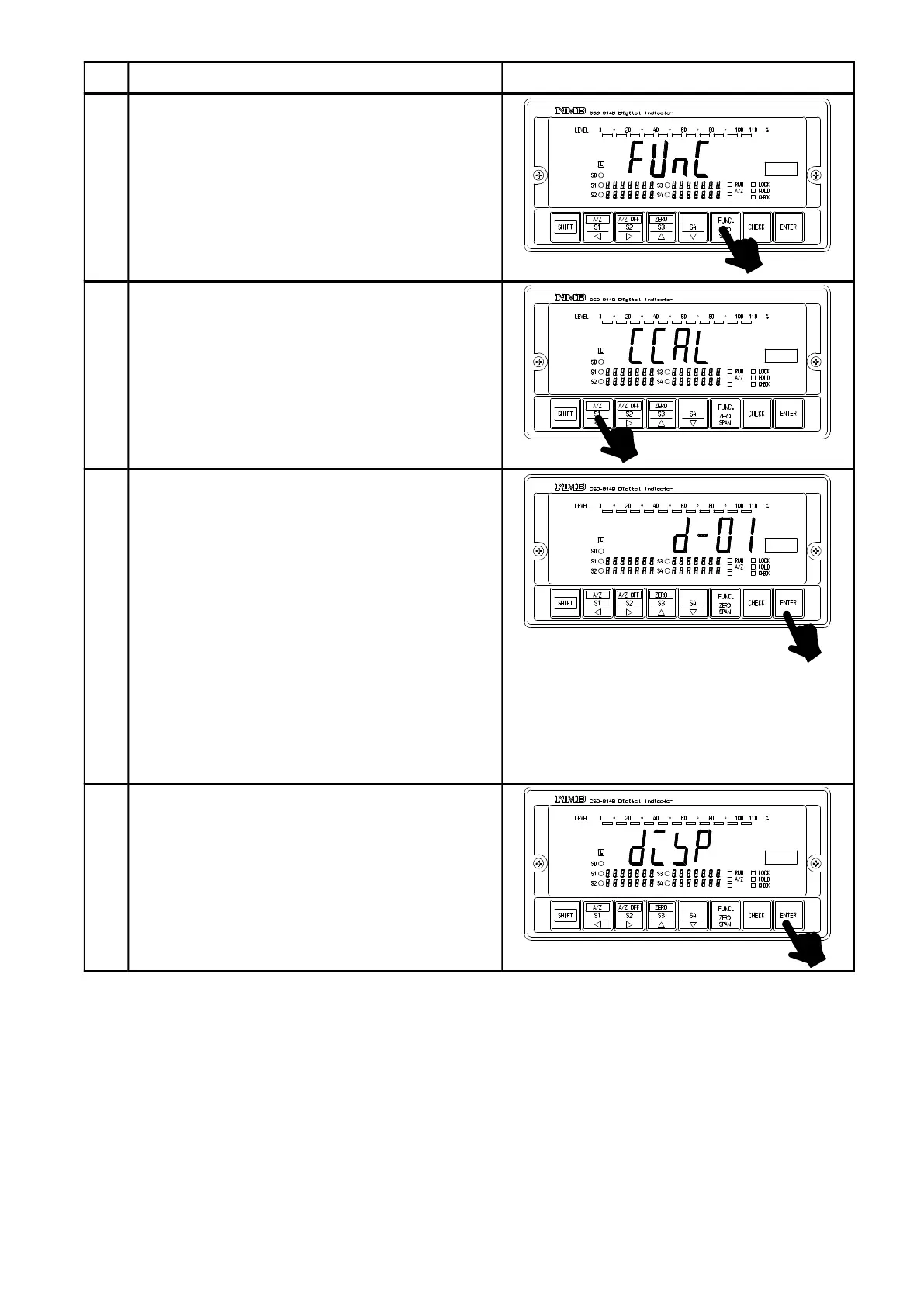

Procedures

Press the key for about one second.

Load display will show “FUNC”.

Press the key once.

Load display will show “CCAL”.

Press the key.

CCAL mode can be entered, then the load display

will show “D−01” and the digit of 10

will flash

on and off.

When the calibration has completed, the set

value of minimum scale which has registered at

that time will be displayed.

Set the minimum scale with the right keys.

Setting value for the minimum scale will be

four(4) as follows:

1, 2, 5, 10,

: Set value Increment key

: Set value Decrement key

: Set value Initialization key

Press the key.

Load display will show “DISP”.
