6 - 11
6.3 Base Unit Assignment (Base Mode)
6
I/O NUMBER ASSIGNMENT
2) When the preset number of slots is less than the number of actually used
slots
The slots other than those designated are disabled.
For example, when 8 slots are designated for a 12-slot base unit, the 4 slots
on the right of the base unit are disabled.
Mounting a module to a prohibited slot may generate an intelligent function
module assignment error (error code: 2124, SP.UNIT LAY ERR.)

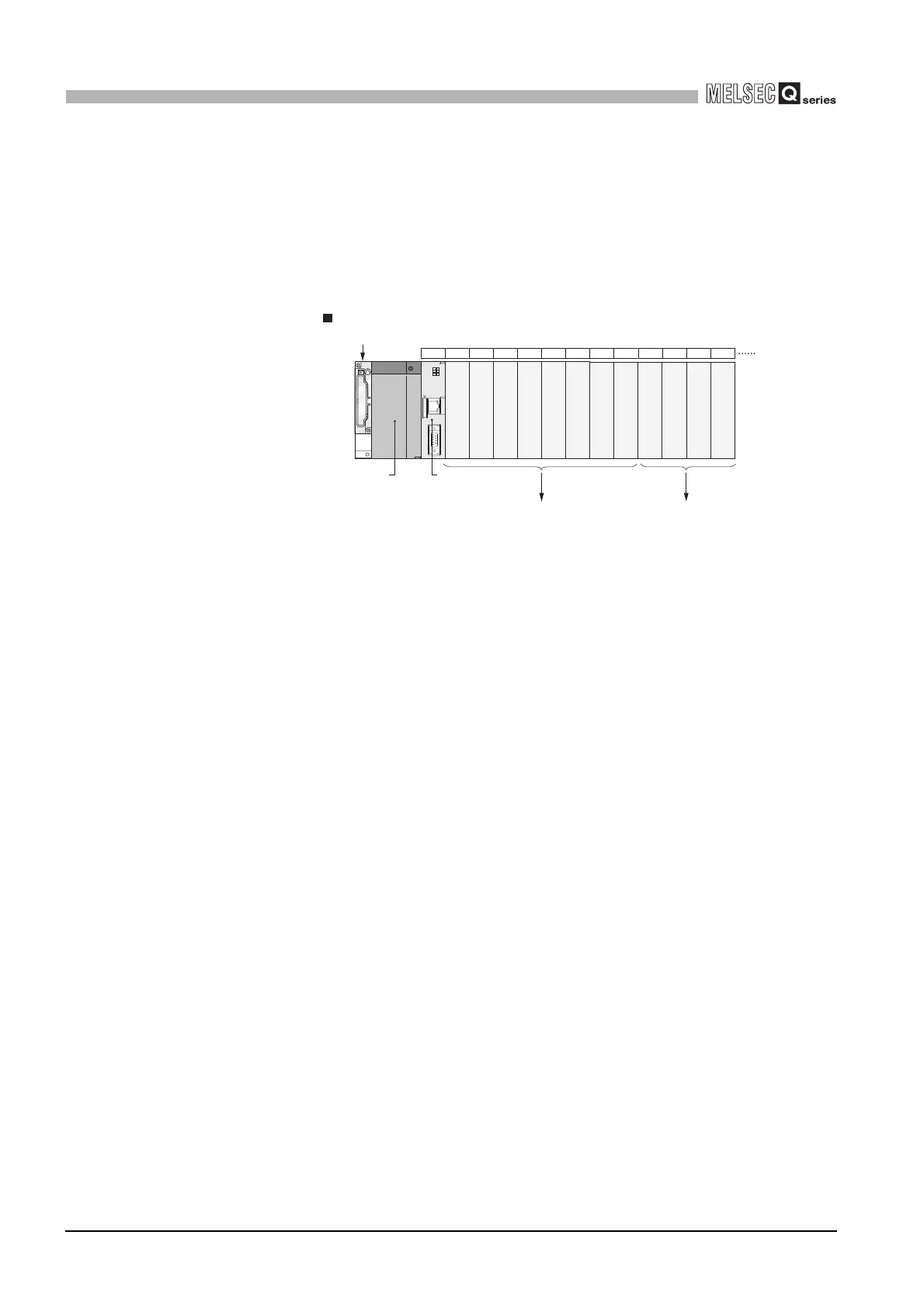

Figure 6.11 When the preset number of slots is less than the number of actually used slots
C Controller
module
CPU 0 1 2 3 4 5 6 7 8 9 10 11
Q312B
Power supply
module
Slot number
Module can be
mounted. (When 8
slots are set)
Modules cannot be mounted.
(Mounting modules will result in error.)
Invalid Invalid Invalid Invalid
Main base unit
