I/O NUMBER ASSIGNMENT
6.3 Base Unit Assignment (Base Mode)
6 - 12
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
SPECIFICATIONS
4
FUNCTIONS
5
SETTING AND PROCEDURES
6
I/O NUMBER ASSIGNMENT
7
MEMORIES AND FILES
8
INSTALLING / UNINSTALLING
(3) Base mode setting screen and settings on C Controller setting utility
(a) Base model name
Set the mounted base unit model name within 16 characters.
The C Controller module does not use the preset model name. (It is used as a
user's memo)
(b) Power model name
Set the mounted power supply module model name within 16 characters.
C Controller module does not use the preset model name. (It is used as a user's
memo)
(c) Extension cable
Set the used extension cable model name within 16 characters.
C Controller module does not use the preset model name. (It is used as a user's
memo)
(d) Slots (Used with C Controller module)
Select the number of points for the slots of the base unit being used from the
following:
•2 (2slots)
•3 (3slots)
•5 (5slots)
•8 (8slots)
• 10 (10slots)
• 12 (12slots)
(e) 8 slot default/12 slot default (Used with C Controller module)
Select either option to designate the number of slots for all base units to the same
number.
(f) Auto/Detail
Select whether base unit assignment will be made in Auto mode or Detail mode.

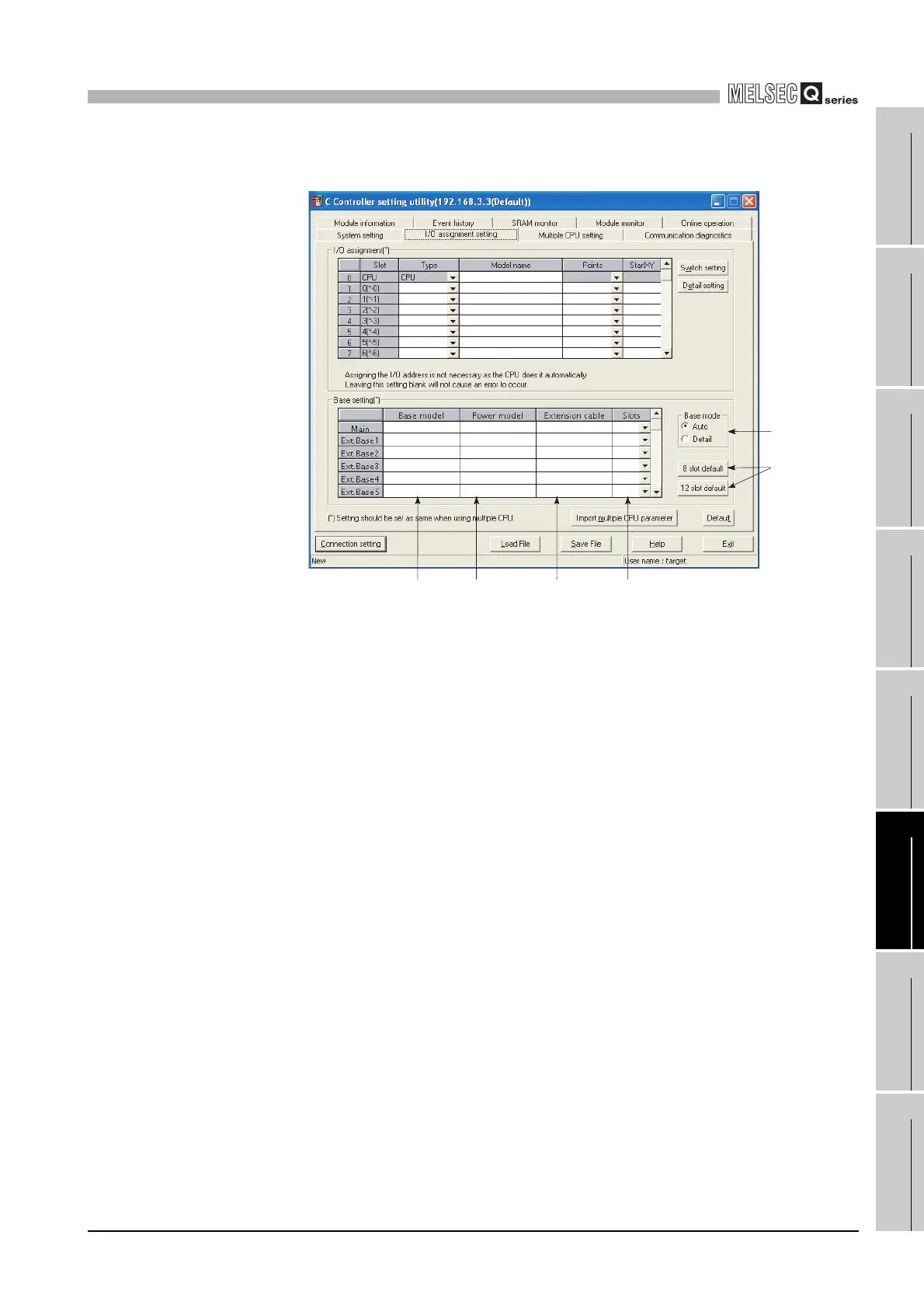

Figure 6.12 I/O assignment setting
(a) (b) (c) (d)
(e)
(f)
