9.1 Common Utility Operations
9.1.3 Setting connection target
9
UTILITY OPERATION
(3) Operating Connection target setting screen
Starting the C Controller setting utility, CC-Link utility, MELSECNET/H utility or Device
monitor utility displays the following screen.
To set the connection target, enter the IP address or host name of the execution target
(C Controller module) into the "Connection target setting" box, and click the
button.
The parameters can be read from the C Controller module when the C Controller
module is accessed from the C Controller setting utility, CC-Link utility, or
MELSECNET/H utility.
(To next page)

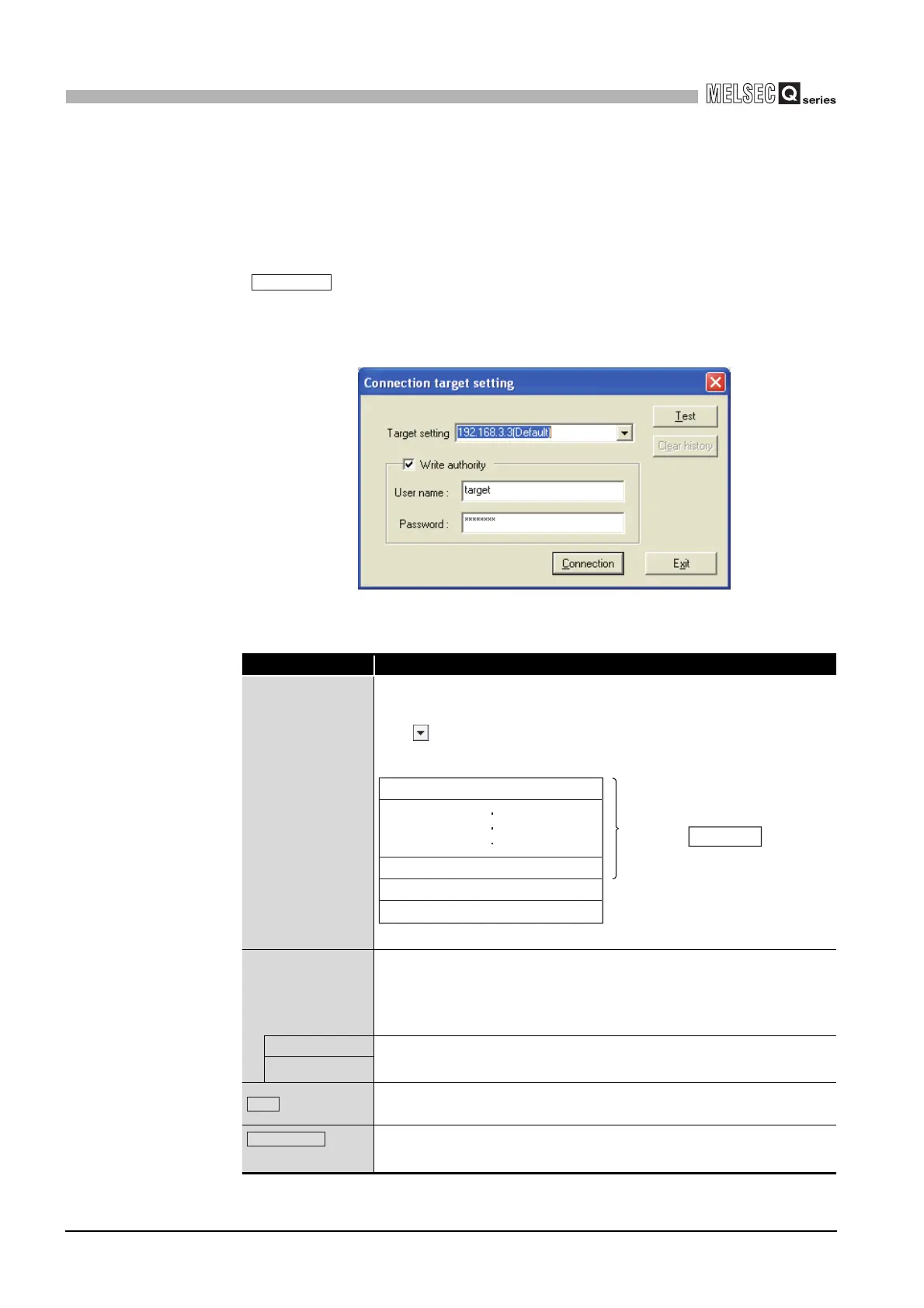

Figure 9.6 Connection target setting screen
Table9.2 Explanation of Connection target setting screen
Item Description
Target setting
*1
Enter the IP address or host name of the execution target (C Controller
module) to be connected.
Click to allow selection from the recently set IP addresses or host
names
*2
(up to 8 past data) as shown below.
(Up to 128 characters can be used. Note that a space cannot be used.)
Write authority
*6
Checking here and setting the "User name" and "Password" allows
parameters to be written to the C Controller module.
If they are not set, the parameters cannot be written to the C Controller
module.
User name
Enter the user name and password of the account
*7
set to the C
Controller module.
Password
button
Performs a communication test on the connection target set in
"Connection target setting".
button
Deletes the history of "Connection target setting".
Connection
Data in this area are deleted
by clicking Clear history button.
Connection target history (oldest)
*5
Connection target history (newest)
*3, *4
*3, *4
192.168.3.3 (Default)
Offline
Test
Clear history
