9.3 CC-Link utility
9.3.5 Operating Parameter setting screen
9 - 77
9
UTILITY OPERATION
10
FUNCTIONS AND
PROGRAMMING
11
OVERVIEW OF
MULTIPLE CPU
SYSTEM
12
MULTIPLE CPU
SYSTEM
CONFIGURATION
13
MULTIPLE CPU
SYSTEM
CONCEPT
14
COMMUNICATIONS
BETWEEN CPU
MODULES
15
PARAMETERS
ADDED FOR
MULTIPLE CPU
16
PRECAUTIONS FOR
USE OF AnS SERIES
MODULE
(2) Other setting screen
* 1 This setting is available only when "Master station" is set for "Type" on the "Parameter setting"
screen with "Remote net (Ver.2 mode)", "Remote net (Ver.1 mode)", or "Remote net (Add. mode)"
selected for "Mode setting".

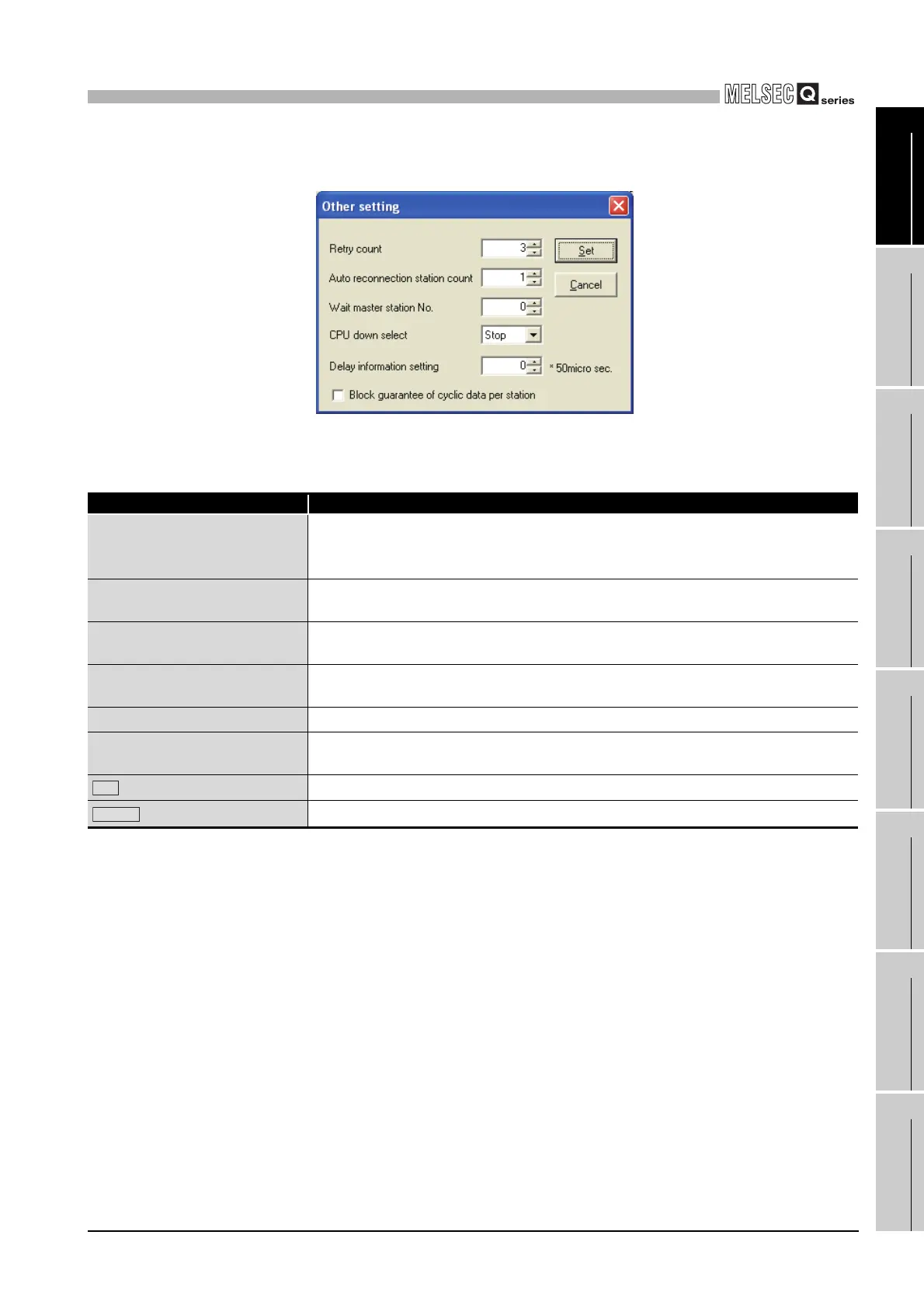

Figure 9.61 Other setting screen
Table9.51 Explanation of Other setting screen
Item Description
Retry count
*1
Set the number of retries in the case of a communication error (transient transmission
error occurrence).
(Initial value: 3, Setting range: 1 to 7)
Auto reconnection station count
*1
Set the number of modules that can be automatically reconnected in one link scan.
(Initial value: 1, Setting range: 1 to 10)
Wait master station No.
*1
Set the station No. of the standby master station
(Initial value: 0 (No setting), Setting range: 0 to 64)
CPU down select
*1
Set the data link status when an error occurs in the C Controller module.
(Initial value: "Stop", Setting range: "Continue", "Stop")
Delay information setting
*1
Set 0 to "Delay information setting".
Block guarantee of cyclic data per
station
Select whether to use the Block guarantee of cyclic data per station or not.
(Initial value: Not checked (Not used))
button
Updates the settings and closes the "Other setting" screen.
button
Closes the "Other setting" screen without updating the settings.
Set
Cancel
