9.3 CC-Link utility
9.3.6 Operating Target setting screen
9
UTILITY OPERATION
(2) Access example
Using the logical station No. "65", access can be made from a CC-Link module
controlled by the C Controller module to CPU No. 4 via another CC-Link module
(controlled by CPU No. 2).
From the Device monitor utility or user program (MELSEC data link function), access
can be made to CPU No. 4 by opening the Channel No. 81 and specifying 65.
* 1 If the CPU No.4 cannot configure the multiple CPU system, access using the logical station No.
cannot be made to the CPU No.4.
The target setting for the above access is shown below.

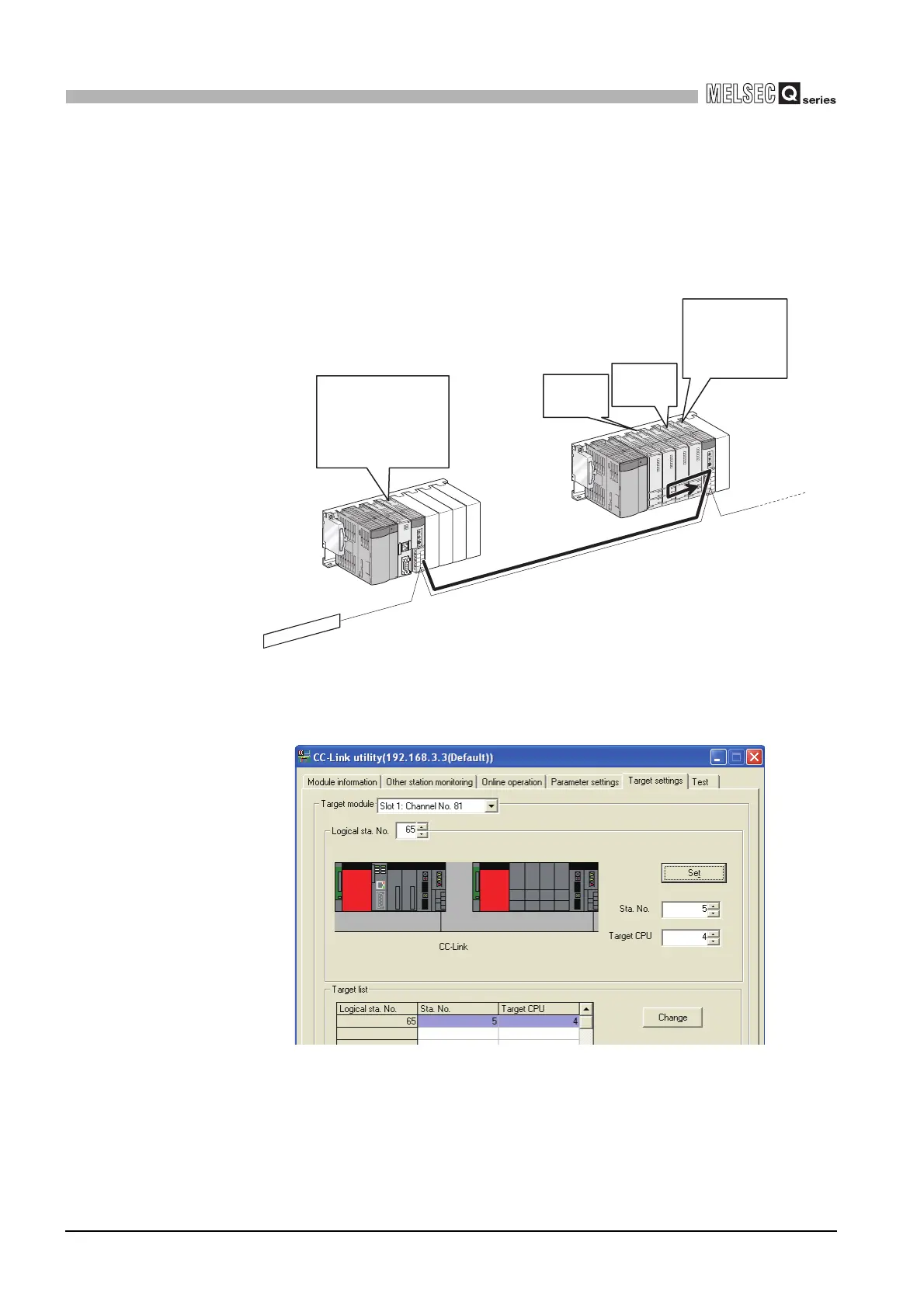

Figure 9.63 System configuration
Figure 9.64 Setting of target setting screen
Multiple CPU
system
T
e
r
min
a
t
i
ng r
e
sis
t
o
r
Master station
QJ61BT11N
1 Slot, Channel No. 81
(Controlled by C
Controller module)
Local station
QJ61BT11N
Station No.: 5
(Controlled by
CPU No. 2)
CPU No. 2
CPU
No. 4
*1
To Next Page
