9 - 84
9.3 CC-Link utility
9.3.7 Operating Test screen
9
UTILITY OPERATION
(2) Test operation procedures
(a) Line test procedure
The line test can be executed only when the data link status ( Section 9.3.2)
of the CC-Link module is "In data link" or "During Auto-Returning".
1) Setting
Select the target station of the line test and click the button to start the line
test.
2) Test result
• When the line test is executed after selection of "All stations (1-64)" in the
above step 1), the test result is displayed on the following screen.
Refer to the following for error code details.
Section 18.4.1
• When the line test is executed after selection of "Selected station" in the
above step 1), the test result is displayed on the following screen.
Refer to the following for error code details.
Section 18.4.1

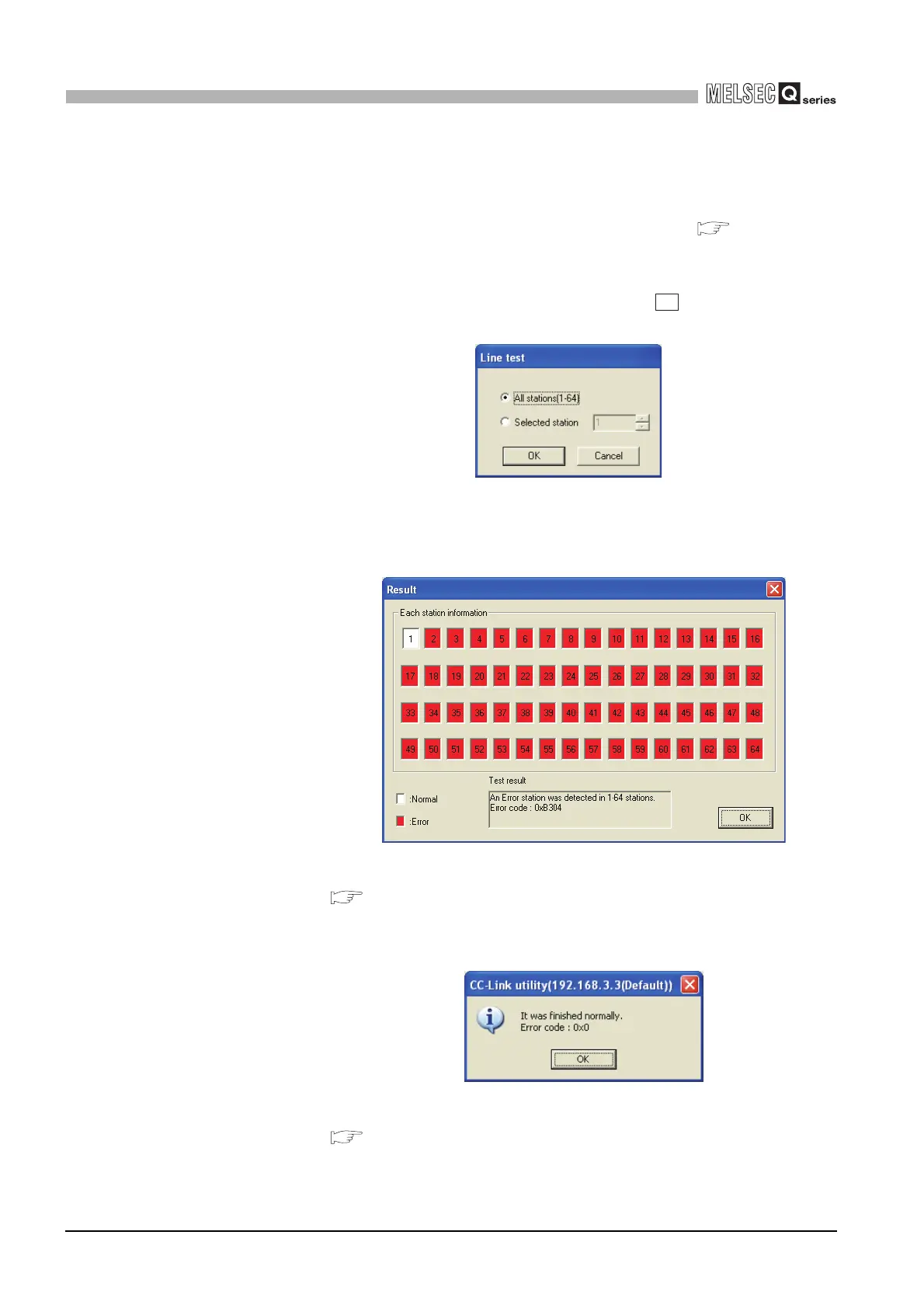

Figure 9.67 Line test screen
Figure 9.68 Line test result when "All stations (1-64)" was selected
Figure 9.69 Line test result when "Selected station" was selected
