9.4 MELSECNET/H Utility
9.4.2 Operating Module information screen
9
UTILITY OPERATION
(2) Module detail information screen
This screen displays the detailed information of the MELSECNET/H module.
(To next page)

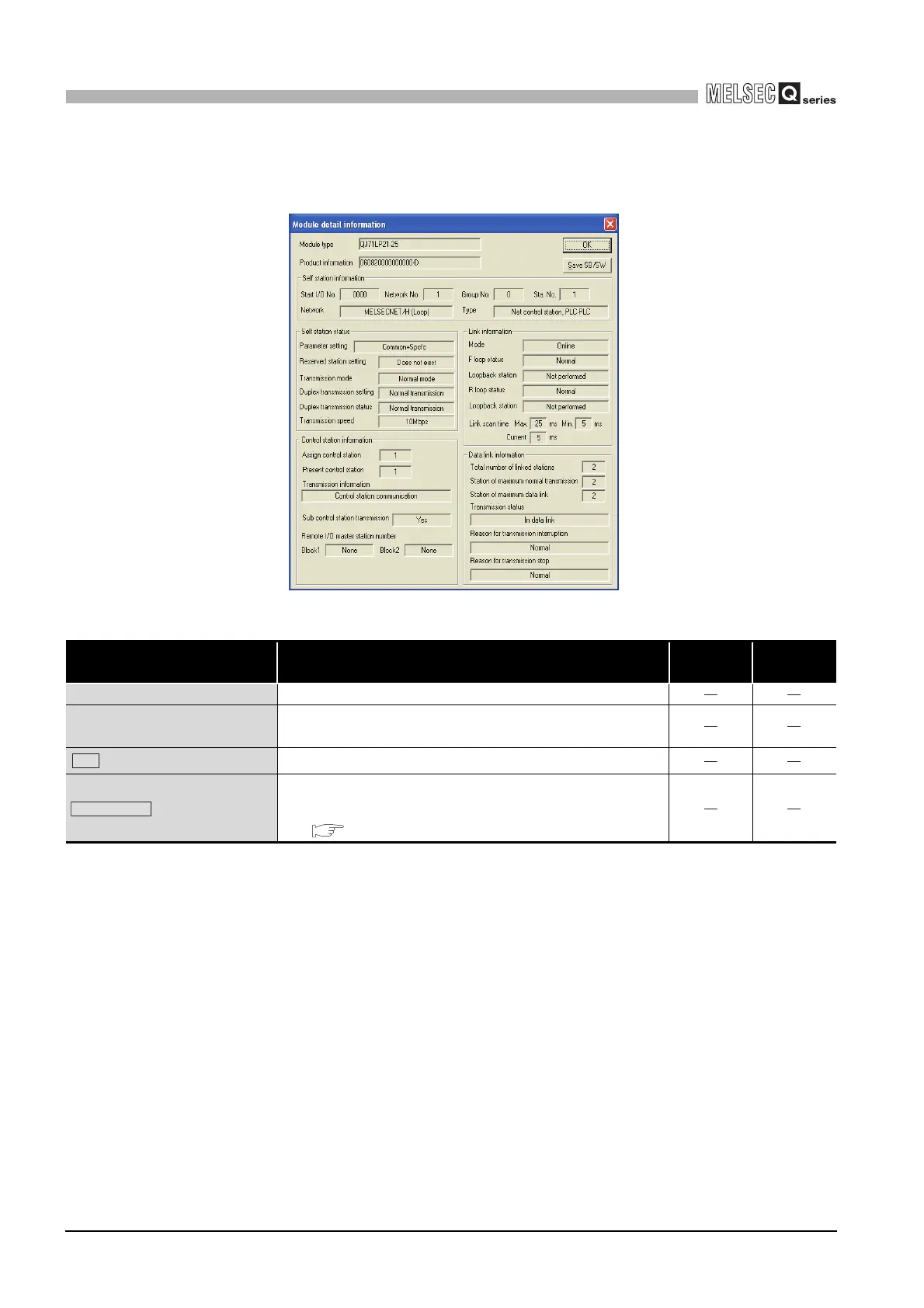

Figure 9.75 Module detail information screen
Table9.59 Explanation of Module detail information screen
Item Description
Correspon-
ding SB
Correspon-
ding SW
Model Type Displays the model name of the MELSECNET/H module.
Product information
Displays the product information (serial No. and function
version) of the MELSECNET/H module.
button
Closes the "Module detail information" screen.
button
Saves the link special relay (SB) and link special register (SW)
information of the MELSECNET/H module into a CSV format
file. ( This section (3))
OK
Save SB/SW
