9 - 114
9.4 MELSECNET/H Utility
9.4.4 Operating Other station monitor screen
9
UTILITY OPERATION
(i) Each station network type status screen
Displays whether or not the network type set for the control station is identical with
that for the normal stations.
The number of displayed stations is equal to the "Total stations" set on the
"Parameter setting" screen.

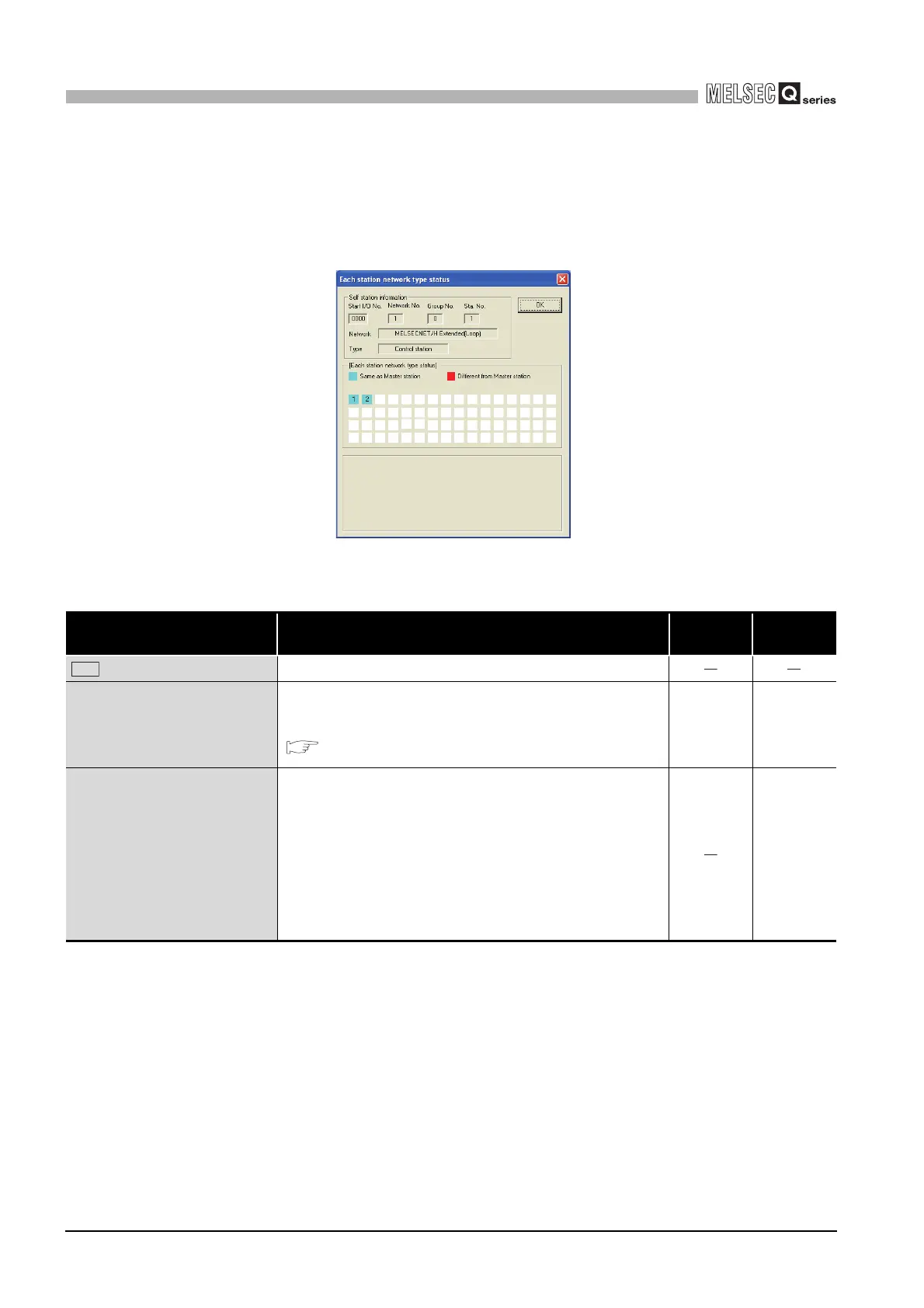

Figure 9.88 Each station network type status screen
Table9.75 Explanation of Each station network type status screen
Item Description
Correspon-
ding SB
Correspon-
ding SW
button
Closes the "Each station network type status" screen.
Self station information
Displays the self station information of the MELSECNET/H
module.
( This section (1))
SB0044,
SB0057,
SB005A
SW0040,
SW0041,
SW0042,
SW0046
Each station network type status
Displays whether or not the network type set for the control
station is identical with that for the normal stations using the
following colors.
Light blue : Normal, reserved or communication error station
whose network type is the same as that of the
control station
Red : Normal station whose network type is different
from that of the control station
SW01E0
to
SW01E3
OK
