(2) IP address setting of C Controller module
The IP address of the C Controller module must be specified for Tornado to debug the
user program by connecting the development environment (personal computer) and
C Controller module via Ethernet.
1) Start Tornado.
2) Select [Tools] [Target Server] [Configure] from the menu bar to open the
"Configure Target Severs" dialog box.
3) Select "Back End" in the "Target Server Properties" pull-down menu.
4) Select "wdbrpc" from the "Available Back Ends" list.
5) In "Target Name/IP Address", set the IP address of the C Controller module to
be connected.
As the IP address of the C Controller module, set the detailed setting screen
"IP address" value on the <<Online operation>> tab of the C Controller setting
utility.
Remark
Refer to the Tornado manual for other debugging methods.

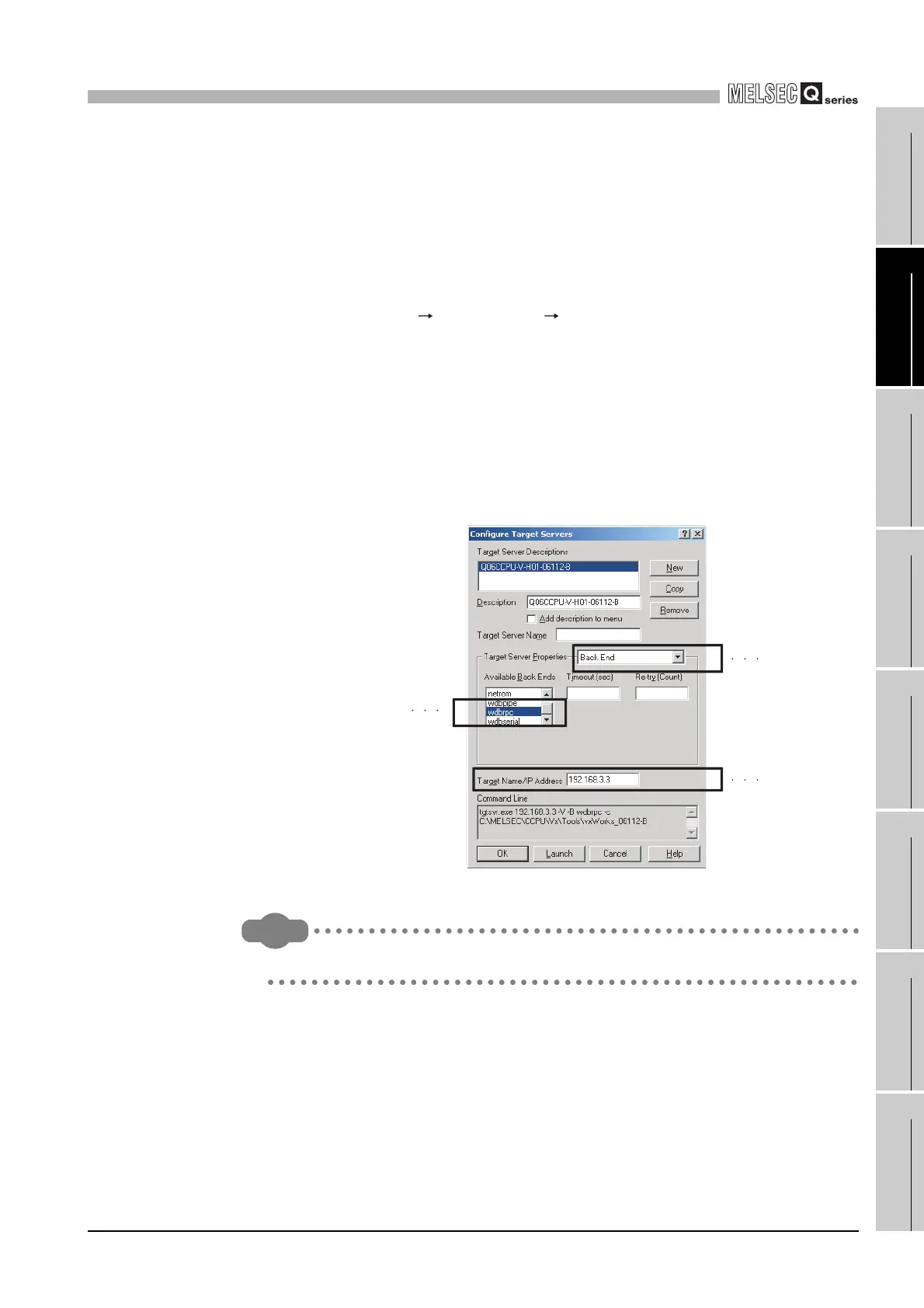

Figure 10.7 IP address setting of the C Controller module
3)
4)
5)
