Mitsubishi MELSEC Q Series User Manual

13 - 7
13.1 Mounting Position of CPU Module
13
MULTIPLE CPU SYSTEM CONCEPT
(3) When CPU No. 1 is High Performance model QCPU
The mounting position of each CPU module is shown in Table13.4.
(a) Mounting position of High Performance model QCPU
Up to four High Performance model QCPUs can be mounted to the CPU slot (the
slot on the right side of power supply module) through slot 2.
There must be no empty slot between CPU modules.
(b) Mounting position of Motion CPU
Up to 3 Motion CPU modules can be mounted to the slot located next to the High
Performance model QCPU through slot 2.
The High Performance model QCPU cannot be mounted on the right of the
Motion CPU.
(c) Mounting position of C Controller module
Up to three C Controller modules can be mounted to the slot next to the CPU
mounting starting from the right end of the slot through Slot 2.
No High Performance model QCPU/Motion CPU can be mounted on the right side
of the C Controller module.

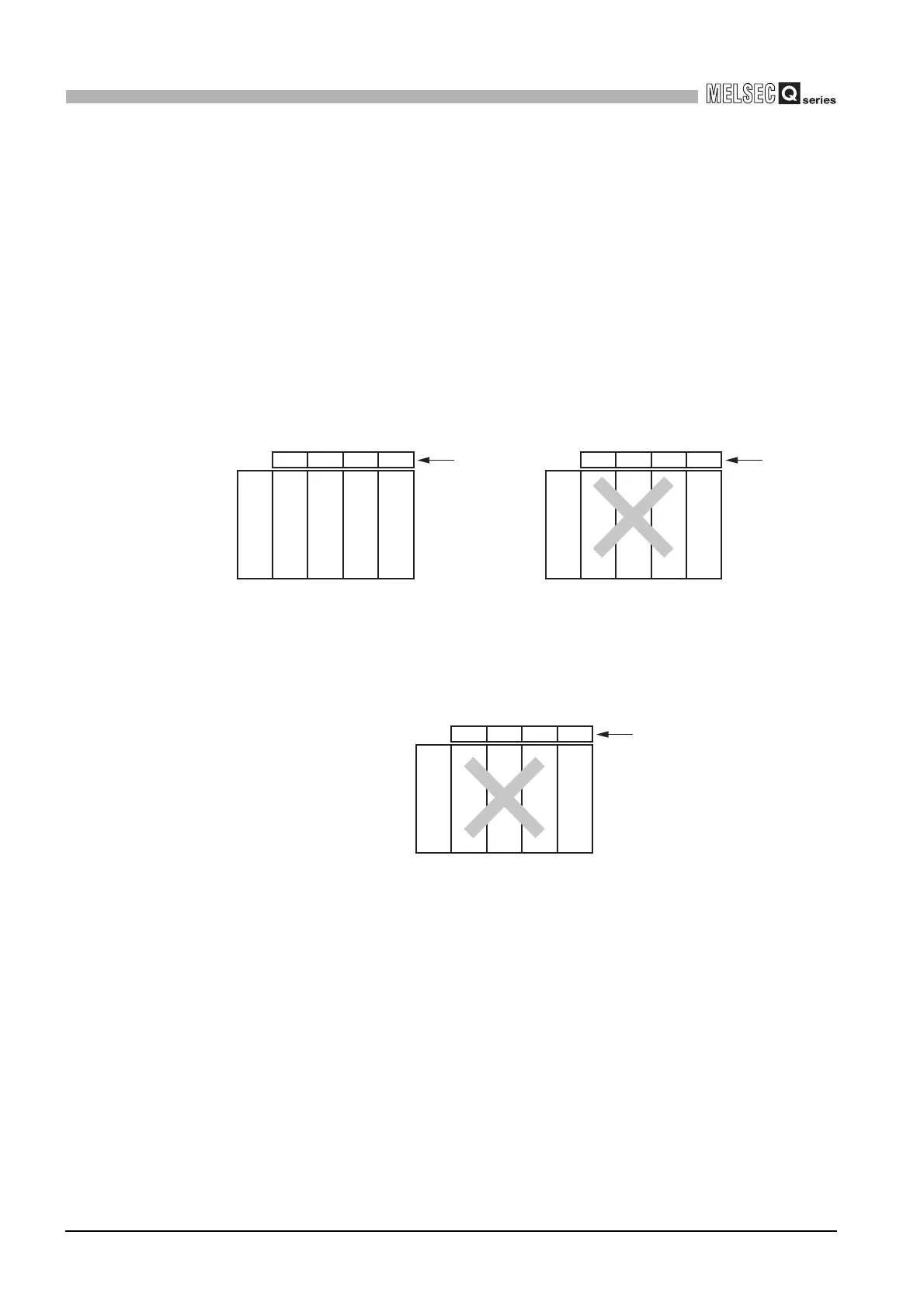

Figure 13.8 Mounting position of Motion CPU
Figure 13.9 Position not allowed for C Controller module
CPU 0 1 2 CPU 0 1 2
Mounting allowed Mounting not allowed
CPU 0 1 2
Slot numbe
r
Slot number
Power supply module High Performance model QCPU High Performance model QCPU High Performance model QCPU High Performance model QCPU Power supply module Motion CPU Motion CPU Motion CPU Motion CPU
CPU 0 1 2
Slot numbe
r
Power supply module C Controller module High Performance model QCPU Motion CPU
