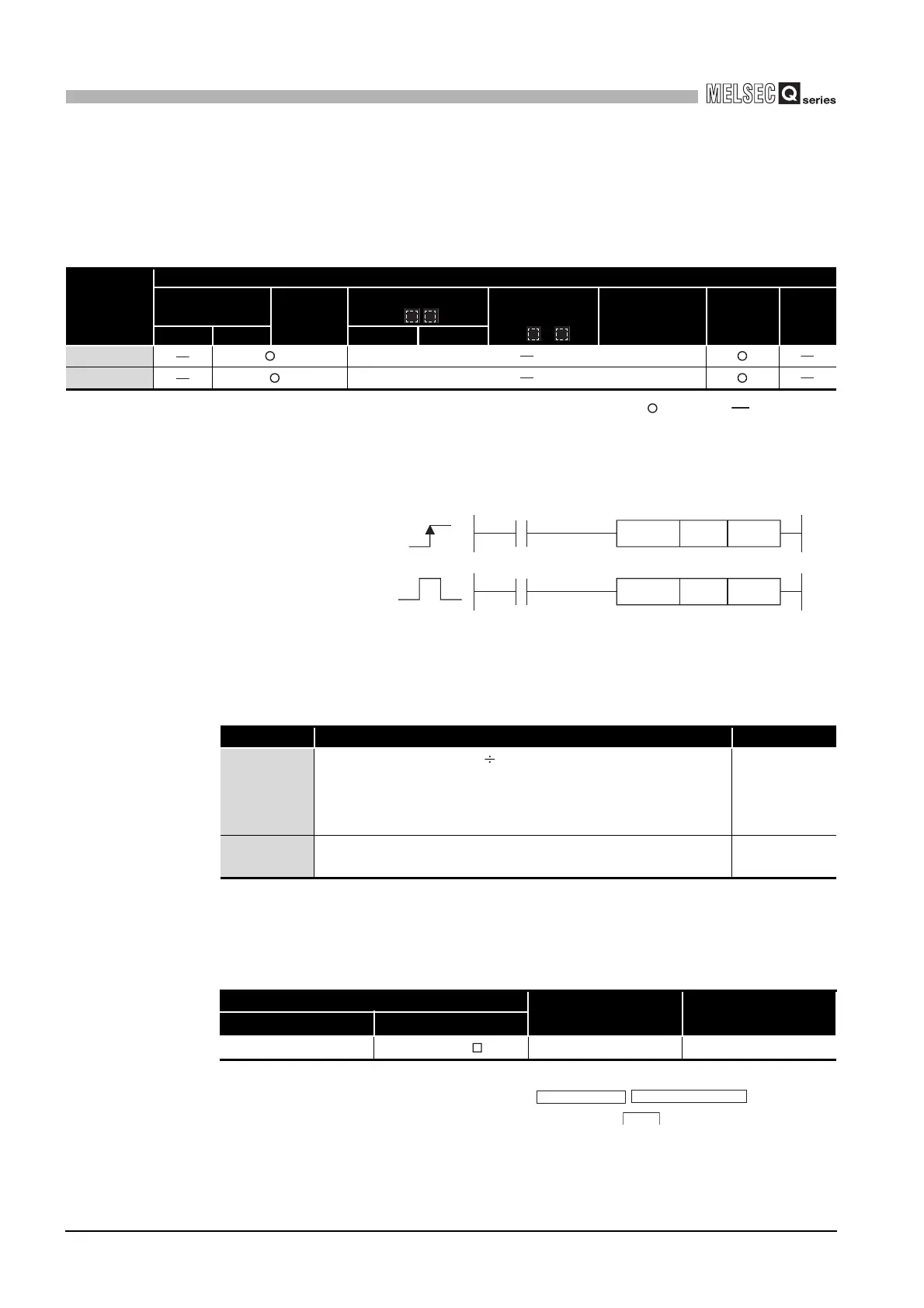

14.2 Event Notification
14
COMMUNICATIONS BETWEEN CPU MODULES
(4) Sequence program instruction (S(P).GINT) used for event notification
The following indicates the programmable controller CPU-dedicated instruction used
for event notification.
:Can be set, : Cannot be set
* 1 In the case of the High Performance model QCPU, indexing is available.
* 2 In the case of the Basic model QCPU, indexing is available.
[Setting data]
[Usable devices]
The following devices are available for dedicated instructions.
* 1 Digit specification of bit device can be used for word data.
Digits of a bit device can be specified with .
For example, 16 points from M0 to M15 are specified with .
* 2 Available devices are given in the Constant field in each section.
Table14.4 Devices applicable to S(P).GINT instruction
Setting
data
Applicable devices
Internal device
(System, user)
File
register
R, ZR
Link direct device
J\
Intelligent
function module
U\G
Index register
Zn
Constant
K, H
Others
Bit Word Bit Word
(n1)
*1*2
(n2)
*2
Figure 14.3 S(P).GINT instruction
Table14.5 Setting data in S(P).GINT instruction
Setting data Settings Data type
(n1)
Start I/O No. of target CPU 16
The following value is actually specified.
CPU No. 1: 3E0
H, CPU No. 2: 3E1H, CPU No. 3: 3E2H, CPU No.
4: 3E3
H
BIN 16 bits
(n2)
Interrupt pointer No.
(0 to 15)
BIN 16 bits
Table14.6 Usable Devices
Internal device
File register Constant*2
Bit
Word
*1
M, L, B
D, W, @
R, ZR K, H
[Instruction symbol]
SP.GINT
S.GINT
[Execution condition]
SP.GINT (n1) (n2)
S.GINT (n1) (n2)
Command
Command
Number of digits Head No. of bit device
K4M0
