ACCELERATOR CABLE AND PEDAL
REMOVAL AND INSTALLATION
Post-installation Operation
D Accelerator Pedal Position Sensor Check and
Adjustment (Refer to GROUP 13A ± On-vehicle
Service.)
D Kickdown Cable Adjustment (Refer to GROUP
23 ± On-vehicle Service.)
12 Nm
2
9
5
1
6
8
3
7
10 Nm
4

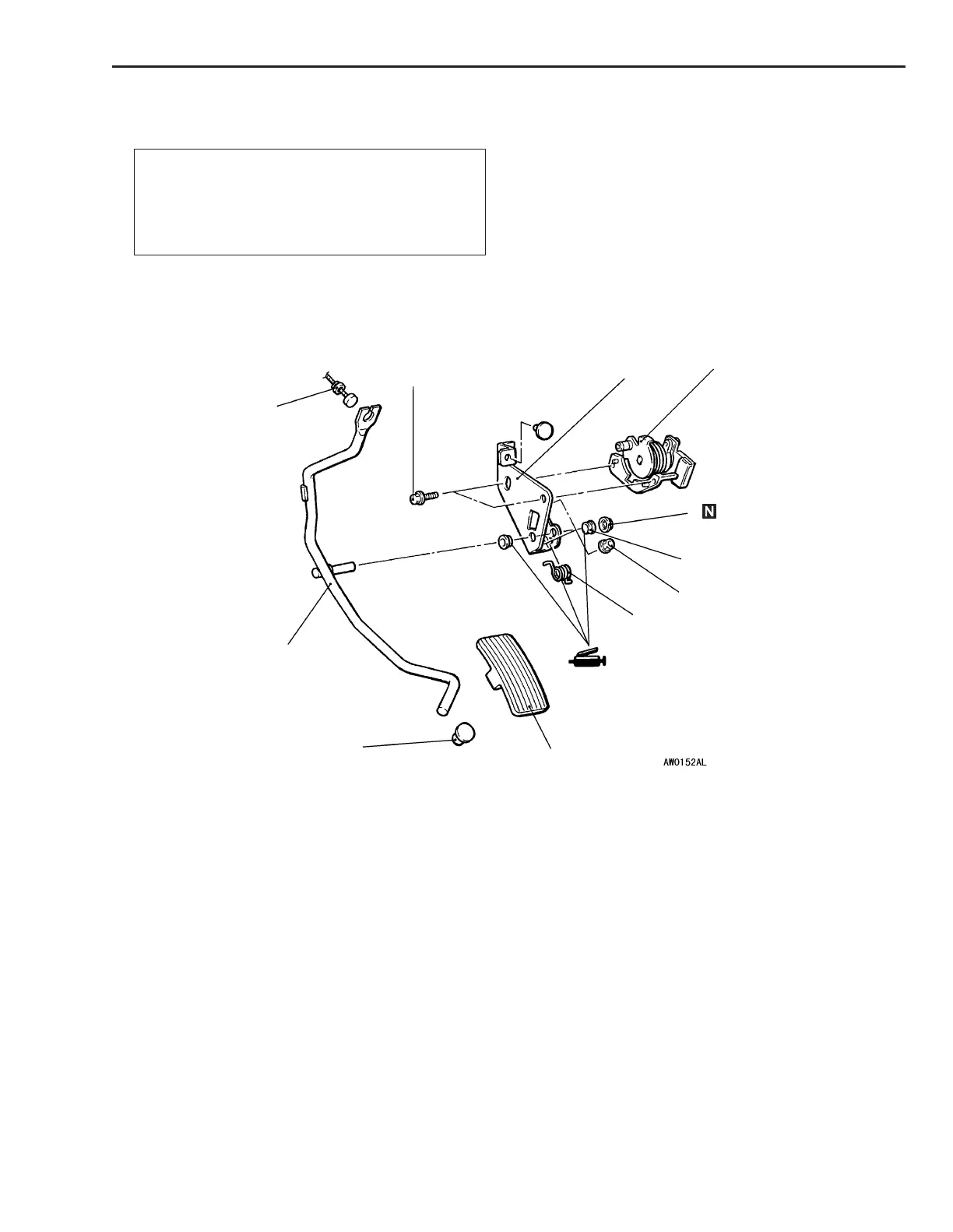

Removal steps
1. Kickdown cable connection
2. Spring nut
3. Bushing
4. Return spring
5. Accelerator pedal
6. Accelerator pedal pad
7. Accelerator pedal position sensor
8. Accelerator pedal bracket
9. Accelerator pedal stopper
