Mitsubishi Pajero Pinin 1999 - Rear Combination Lamp, Rear Fog Lamp

CHASSIS ELECTRICAL ± Rear Combination Lamp, Rear Fog Lamp
54A-39

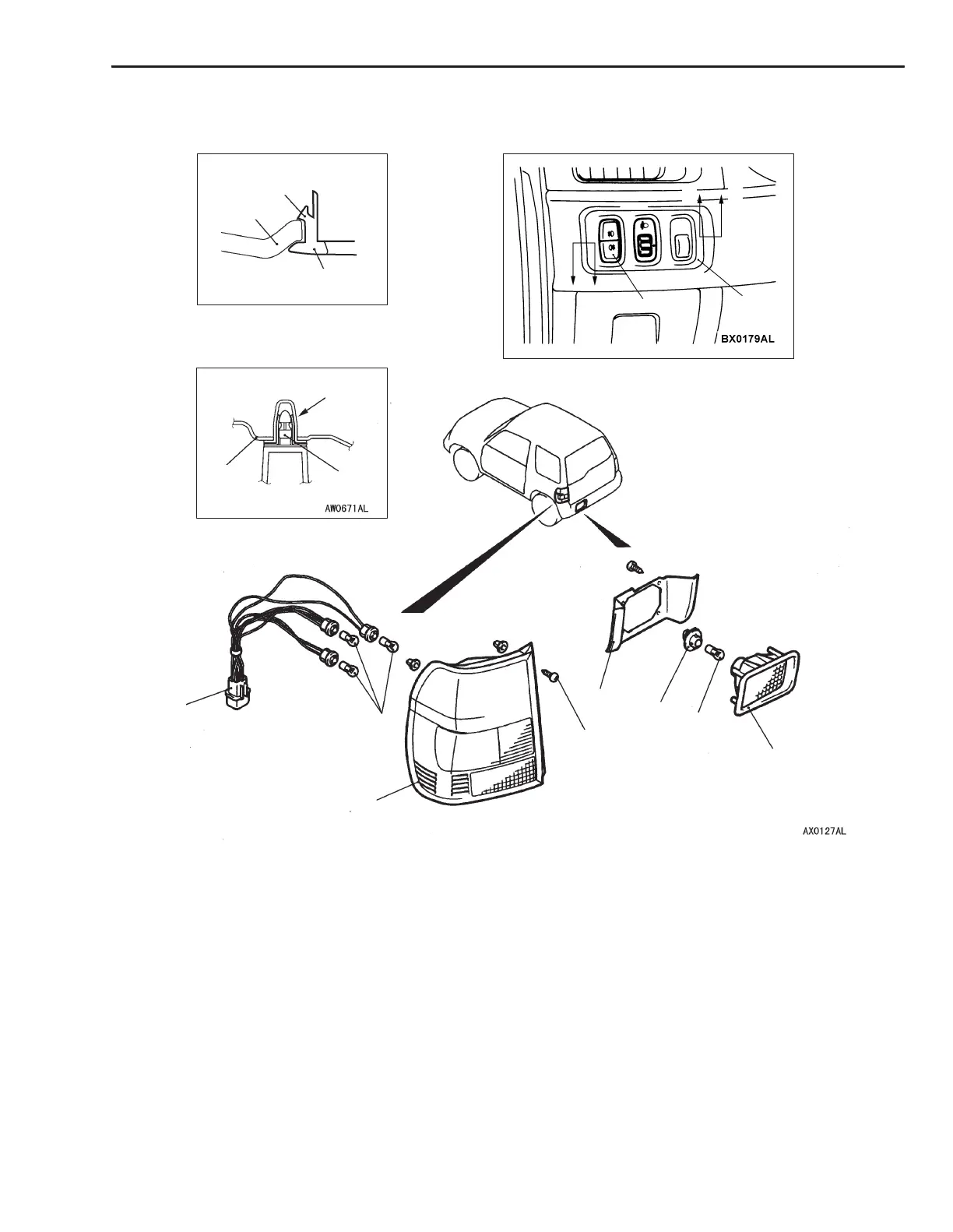

REAR COMBINATION LAMP, REAR FOG LAMP
REMOVAL AND INSTALLATION <L.H. drive vehicles>
Section A ± A
Claw
Instrument
panel
1
2
6
5
8
7
3
5
4
AA
AA
2.5 ± 0.2 Nm
Section B ± B
Body
panel
Gronmet
3
1
BX0283AL
Fog lamp switch removal steps
1. Switch panel
2. Fog lamp switch
Rear combination lamp removal
steps
D Quarter Trim Removal and Installation
(Refer to GROUP 52A)
3. Rear combination lamp
4. Socket assembly
5. Bulb
Rear fog lamp removal steps
D Rear mad guard
(Refer to GROUP 51)
D Rear splash shield
6. Rear fog lamp
7. Bracket
8. Socket
