BODY ± Door
42-26

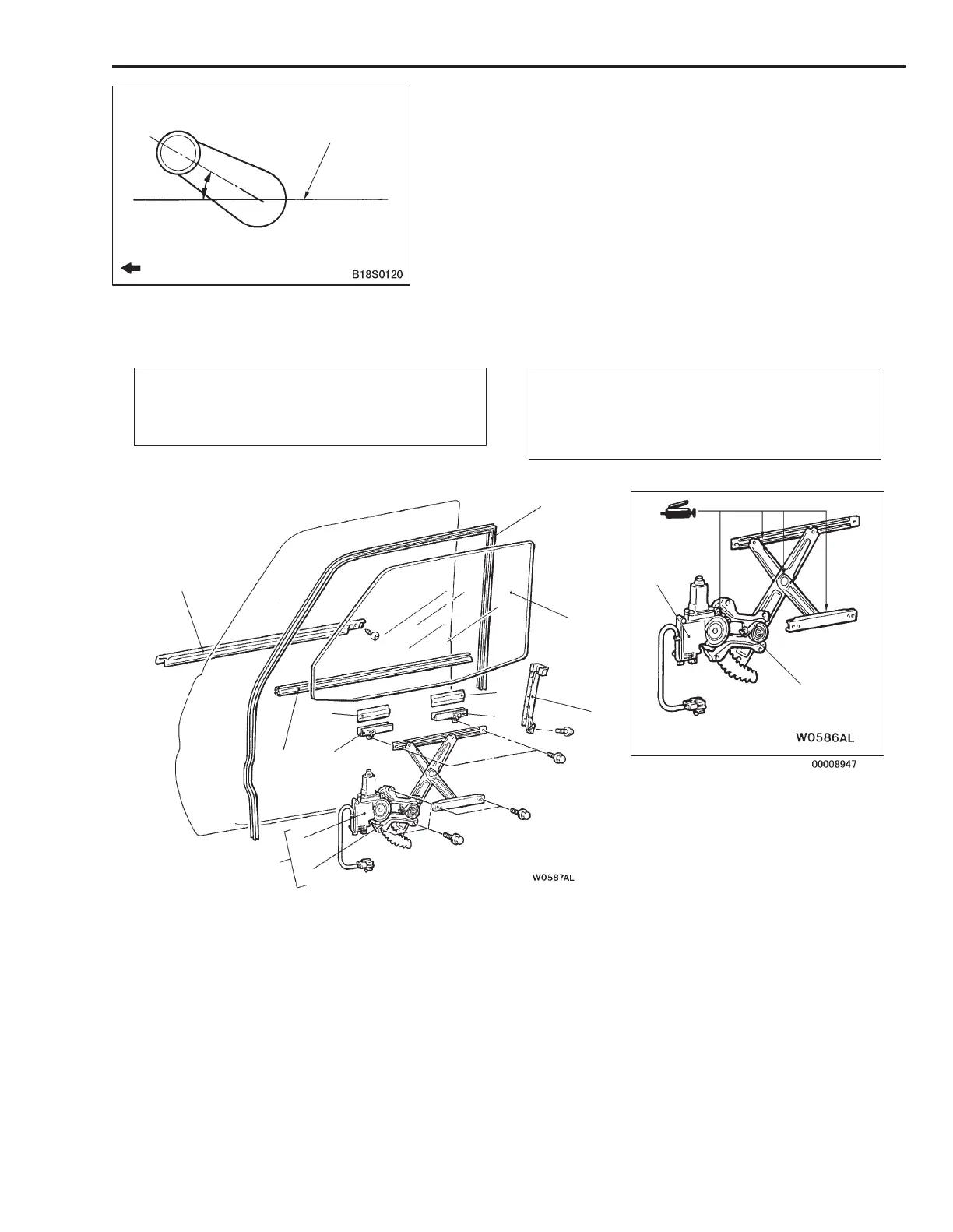

" BA REGULATOR HANDLE/ESCUTCHEON/CLIP
INSTALLATION
1. Install the clip and escutcheon to the regulator handle.
2. Close the front door window glass fully, and then install
the regulator handle as shown in the illustration.
DOOR GLASS AND REGULATOR
REMOVAL AND INSTALLATION
Pre-removal Operation
D Door Mirror Removal (Refer to GROUP 51.)
D Door Trim and Waterproof Film Removal
(Refer to P.42-23.)
Post-installation Operation
D Door Window Glass Adjustment (Refer to P.42-19.)
D Door Trim and Waterproof Film Installation
(Refer to P.42-23.)
D Door Mirror Installation (Refer to GROUP 51.)
7
8
9
7
8
2
1
3
4
10
6
5
6
5
Door window glass removal steps
" DA D limit switch set-up
1. Door window inner weather strip
2. Door belt line moulding assembly
3. Door window glass runchannel
" CA 4. Door window glass
" CA 5. Glass holder
" CA 6. Door glass pad
Power window regulator and motor
assembly removal steps
AA" 7. Power window regulator and motor
assembly
" BA 8. Power window motor assembly
" BA 9. Power window regulator assembly
" AA 10. Rear lower sash
Front of vehicle
30_
Horizontal line
