BODY ± Door
42-21
POWER WINDOW OPERATION CURRENT
CHECK

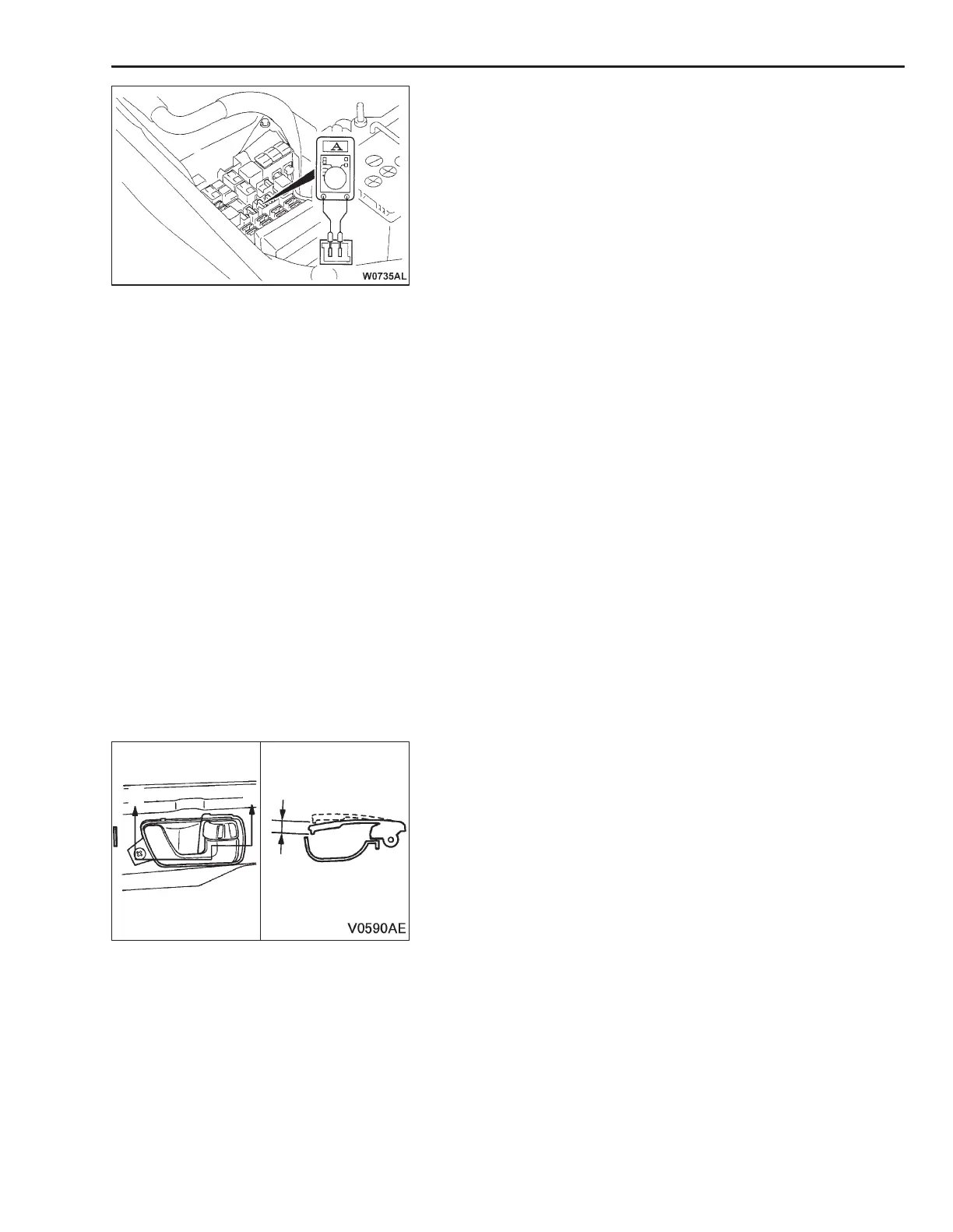

1. Remove the power window fuse and connect a circuit
tester as shown.
2. Measure the operation current. When the power window
switch is turned to UP, much current flows at the beginning
and end of the operation. So, measure the operation current
in between these points.
Standard value:
5.3 $ 2 A (power supply voltage 14.5 $ 0.3 V
at 23_C)
3. If the operation current is not within the standard value,
do troubleshooting. (Refer to GROUP 54B.)
CIRCUIT BREAKER (INCORPORATED IN
POWER WINDOW MOTOR) CHECK
1. Turn the power window switch to UP to close the window
glass. Keep the switch at the fully-closed position for
another 10 seconds.
2. Release the power window switch and immediately turn
it to DOWN. Under this condition if the window glass starts
to lower within 60 seconds, the circuit breaker can be
judged good.
DOOR INSIDE HANDLE PLAY CHECK AND
ADJUSTMENT
1. Measure the door inside handle play.
Standard value (B): 5.3 mm or more
2. If the play is not within the standard value, remove the
door trim. (REfer to P.42-23.)
3. Adjust the door inside handle play with the clip connecting
the inside handle and the rod.
B
Section A ± A
A
A
To Next Page
