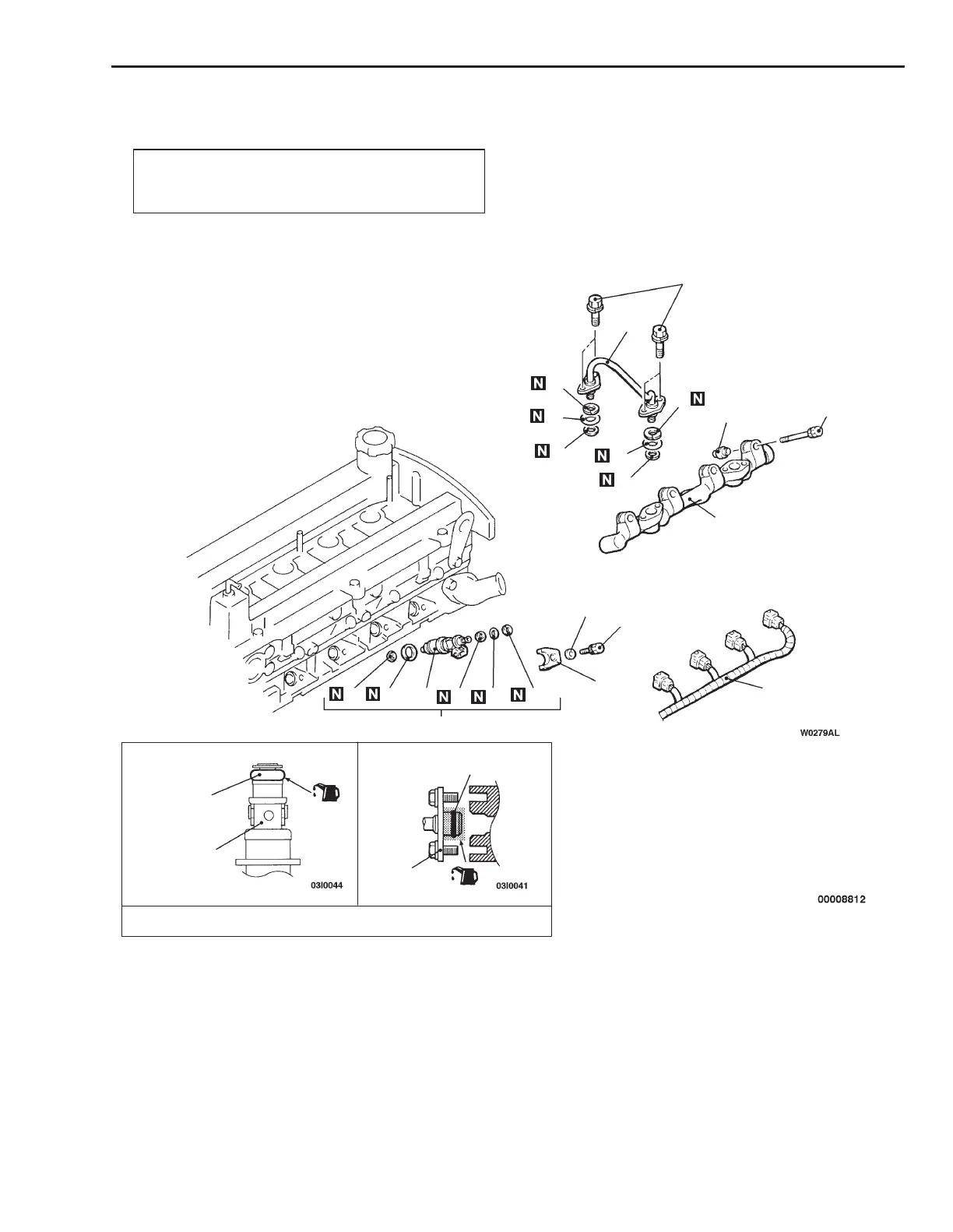

GDI ± Injector
13A-111
INJECTOR
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
Fuel Pressure Regulator (High Pressure) Removal and
Installation (Refer to P.13A-107.)
O-ring
Engine oil
1
2
3
4
5
6
11
20 ± 25
Nm
10 ± 13
Nm
7
8
9
10
12
10 ± 13
Nm
13
141516
14
1
2
3
4
O-ring
Removal steps
" DA 1. Fuel feed pipe
" CA 2. Back-up ring A
" CA 3. O-ring
" CA 4. Back-up ring B
AA" 5. Injector harness connector
6. Washer
7. Injector holder
AB" " BA 8. Delivery pipe assembly
9. Insulator
AB" " BA 10. Fuel injector assembly
11. Back-up ring
12. O-ring
13. Back-up ring
14. Fuel injector
15. Gasket
" AA 16. Corrugated washer
