EXTERIOR ± Windshield Wiper and Washer
51-11

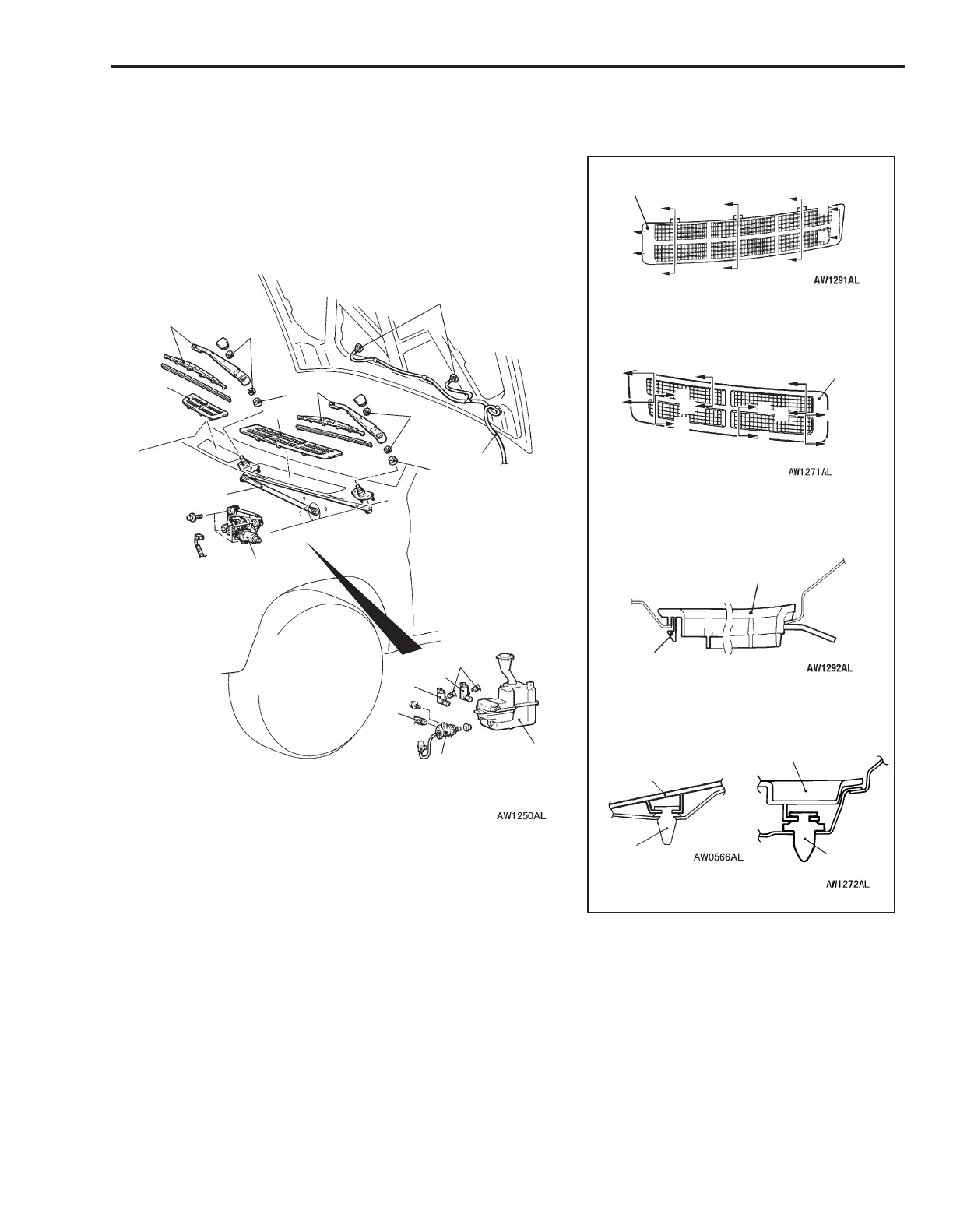

WINDSHIELD WIPER AND WASHER
REMOVAL AND INSTALLATION
Section A ± A
Section B ± B
3
13 Nm
2
4
9
A
A
B
B
7
6
8
1
5
Section C ± C
Clip
Claw
Cli
p
13 Nm
C
C
B
B
A
A
A
A
C
C
C
C
C
C
C
C
C
C
6
5
6
6
5
1
1
3
4
10
11
12
1. Washer hose connection
2. Washer nozzle
Wiper motor and linkage removal
steps
"AA 3. Wiper arm and blade assembly
4. Washer
5. Front deck garnish
<R.H. drive vehicles>
6. Front deck garnish
<L.H. drive vehicles>
AA" 7. Wiper motor
8. Linkage assembly
Washer tank removal steps
D Air cleaner
D Intake duct
1. Washer hose connection
9. Headlamp washer motor
<Vehicles with headlamp washer>
10. Front washer motor
11. Rear washer motor
12. Washer tank assembly
NOTE
For removal and installation of the column switch
assembly (wiper and washer switch), refer to GROUP
37A ± Steering Wheel and Shaft.
