MANUAL TRANSMISSION ± 4WD Indicator Control Unit
22-9
4WD INDICATOR CONTROL UNIT
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
 Seat Assembly (Driver's side) and Rear Seat Cushion
Removal and Installation (Refer to GROUP 52A ±
Seat.)
 Front Scuff Plate (Right) and Quarter Trim (Right)
Removal and Installation (Refer to GROUP 52A ±
Trims.)
 Front Floor Console and Rear Floor Console Removal
and Installation (Refer to GROUP 52A.)
1
2
2
5 Nm
4
3
2

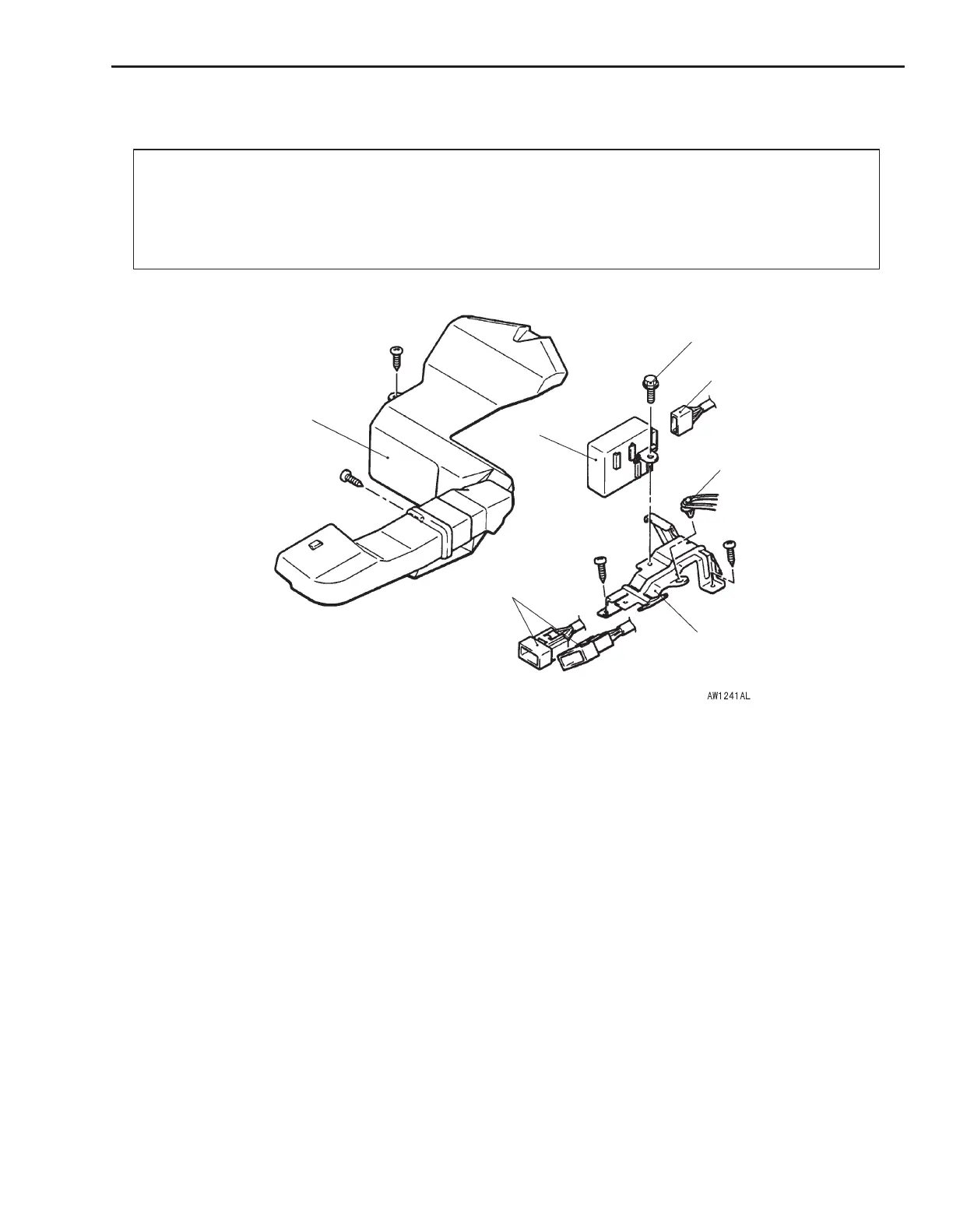

Removal steps
1. Rear heater duct (right)
 Turn up the carpet.
2. Harness connector connection
3. 4WD indicator control unit
4. Bracket
