Moog DM2020 Series User Manual

PN: L-MAM2-E-201
Moog Casella DM2020 Installation and Startup Guide
3.2.5 Power Line Filters

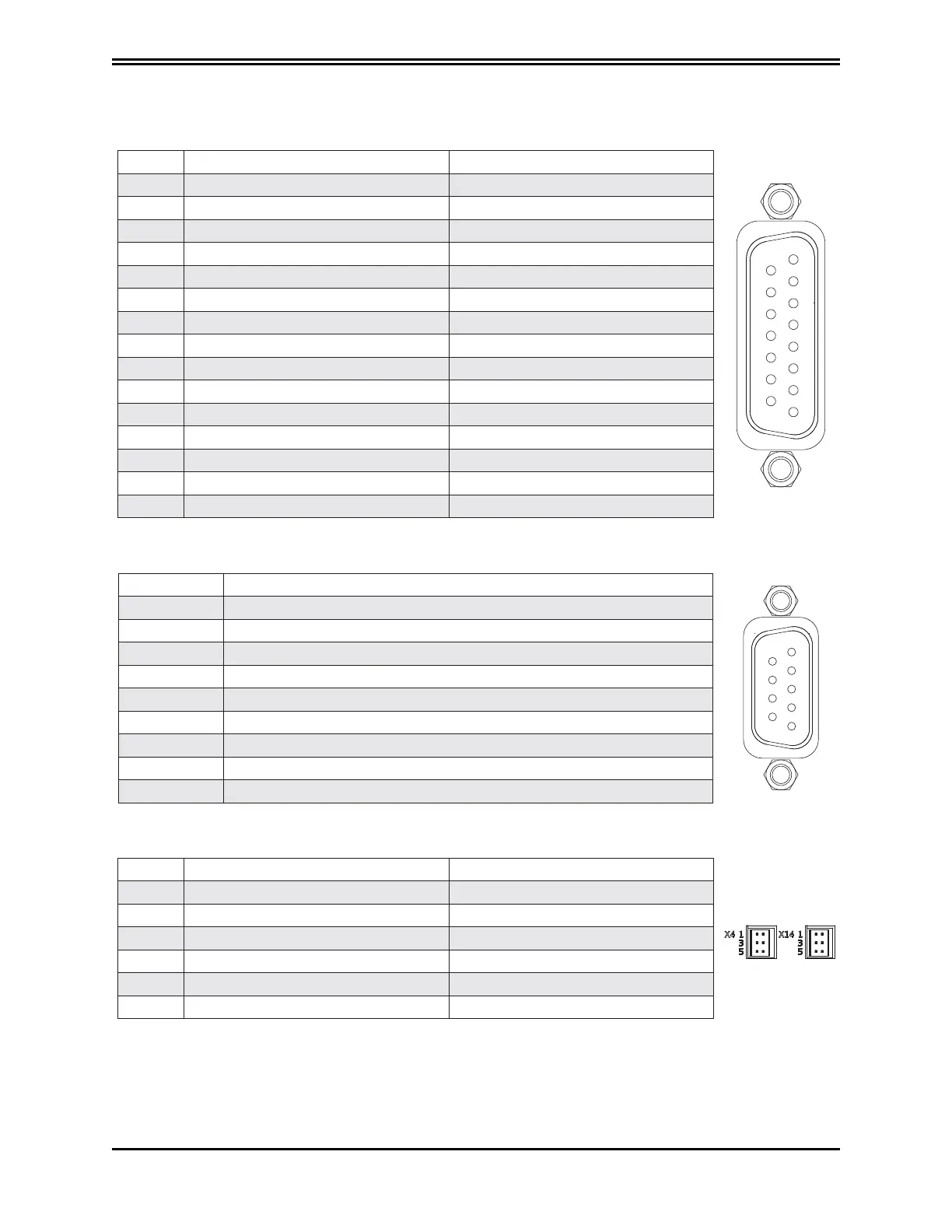

X2 (X12) connector
PIN Digital encoder function “Full digital” encoder function
8
7
6
5
4
3
2
1
15
14
13
12
11
10
9
1 B- n.c.
2 0 V supply 0 V supply
3 A n.c.
4 Up supply Up supply
5 Data + Data +
6 n.c. n.c.
7 Term A Term A
8 CLOCK + CLOCK +
9 B+ n.c.
10 0 V Sense 0 V Sense
11 A+ n.c.
12 Up Sense Up Sense
13 Data Data -
14 Term B Term B
15 CLOCK CLOCK -
Connector X3 (X13) resolver interface
PIN FUNCTION
5
4
3
2
1
9
8
7
6
1 S4
2 S2
3 GND
4 S3
5 S1
6 TERM
7 R2
8 TERM
9 R1
Connector X4 (X14) STO interface
PIN Designation Function
1 +24 V S1 STO power input
2 0 V S1 0 Volt corresponding
3 +24 V S2 STO power input
4 0 V S2 0 Volt corresponding
5 S2 FEEDBACK Channel S2 output
6 S1 FEEDBACK Channel S1 output
47
