Figures 2D and 2E show the layout of the front panel and back panel labels of the moorLDI2 single
visible wavelength scanner units
moorLDI2-VR, moorLDI2-HR
Warning LED’s: 1, Power; 2, Laser ready, 3, The Laser Aperture , is indicated and shown
here schematically by the rectangle above.

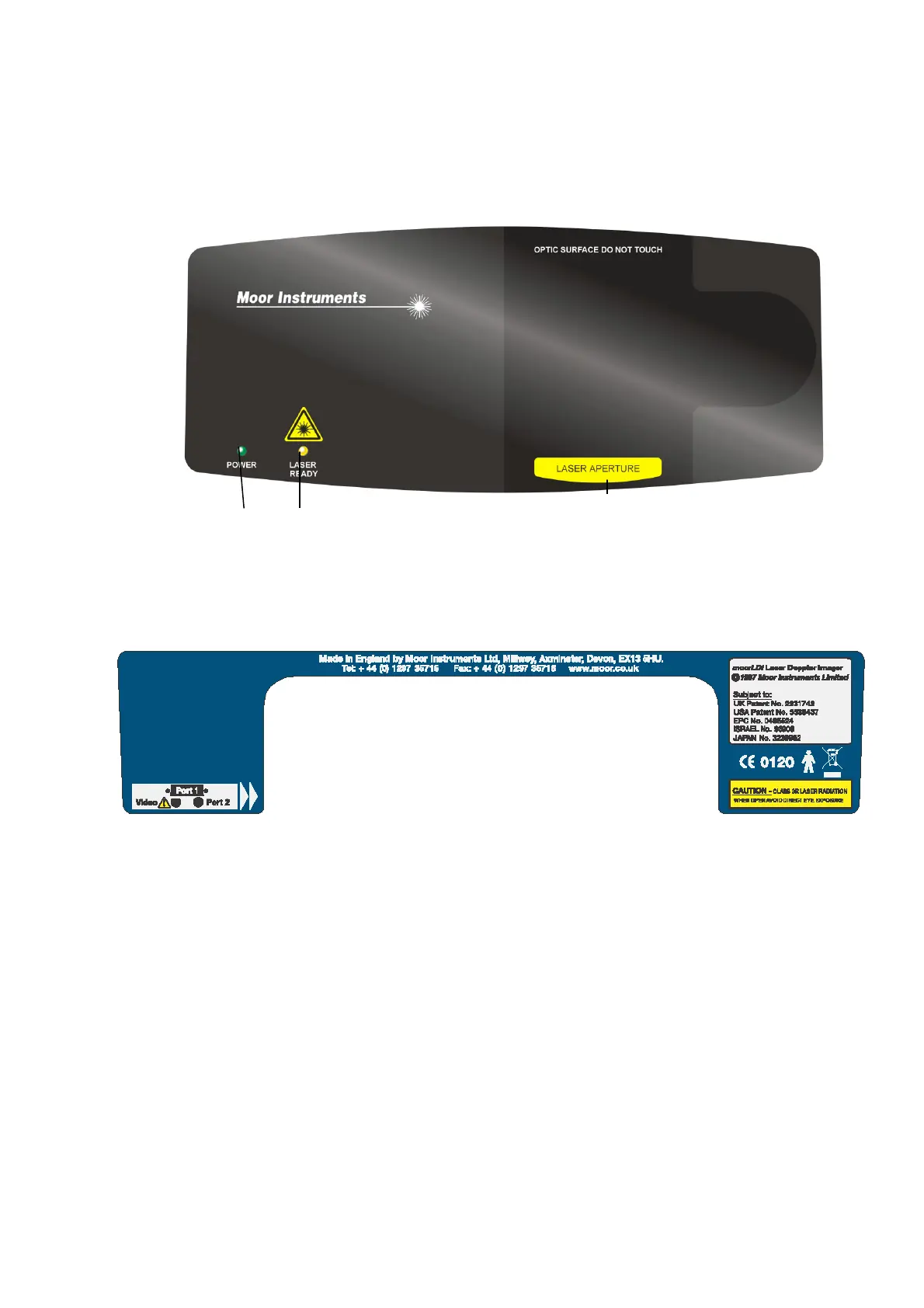

FIGURE 2D - FRONT PANEL OF THE moorLDI2 VISIBLE SCANNER UNIT
FIGURE 2E - BACK PANEL LABELS OF THE moorLDI2 VISIBLE SCANNER UNIT
1
2
3
