4. Service Procedures - Machine Adjustments and Calibration
98 Morgana DocuMaster MFC - Service Manual

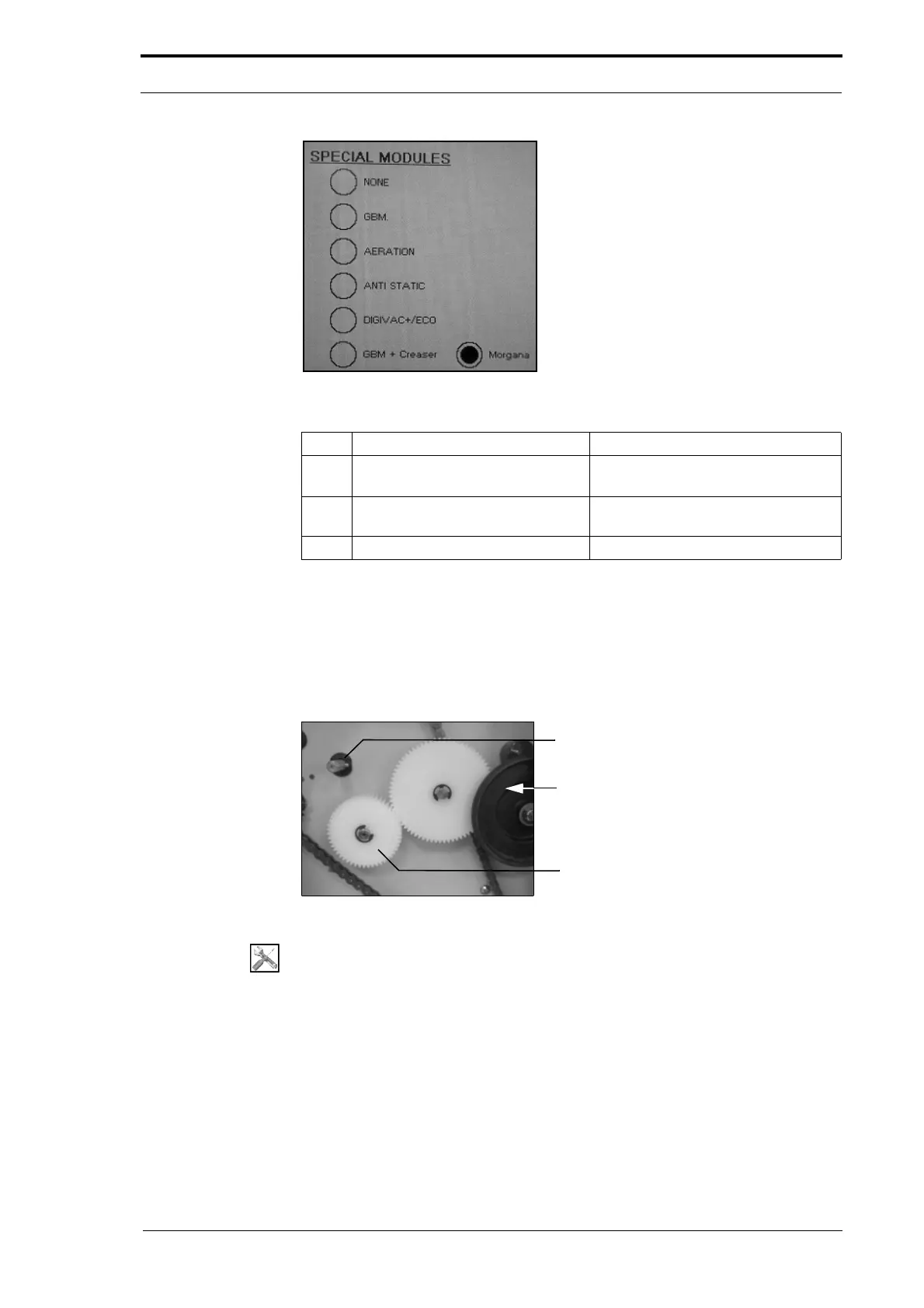

Figure 4.74 Machine Options - Special Modules
Step Action Information
1 Open the
MACHINE OPTIONS setting
page.
(See Section 4.5.24.1).
2 Select
MORGANA from the SPECIAL
MODULES list.
Touch the radio button at the side of
th
e
MORGANA text (see Figure 4.74).
3 Turn the MFC OFF/ON.
4.5.25 Centre the Gathering Area Sidelays
To prevent paper jams it is important that the gathering area sidelays are correctly
referenced to the centre of the MFC. This procedure is necessary when the sidelay
adjustment mechanism has been disconnected.
RH Sidelay Adjustment Shaft
(Gear Removed)
Hand Wheel
LH Sidelay Adjustment Shaft
Figure 4.75 Gathering Area Sidelay Adjustment Shaft
Tools:
• Screwdriver: Small Flat-Blade
• 6” Steel Rule.
