4.6.2 Replace the Blower Motor
Rubber Compression Ring
Plastic Pipe
O-Ring Seal
Nut and Washer
Blower Motor Power Connector

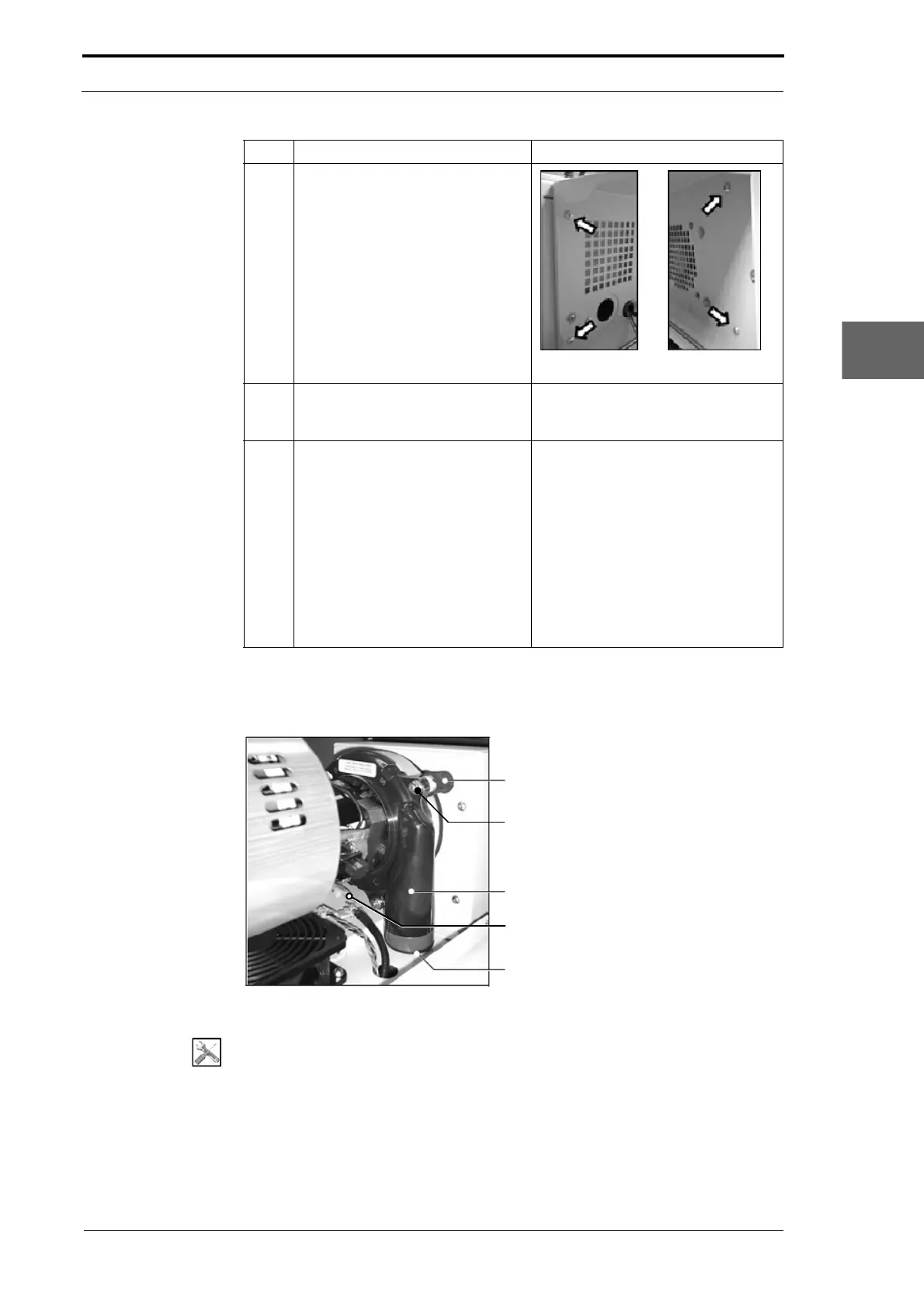

Figure 4.83 The Blower Motor
Tools:

• Allen Key: 3mm
• Spanner: 10mm.
3 Remove the four screws that
attach the CAP to the hinged rear
panel (see Figure 4.82).
Figure 4.82 CAP Screws
4 Close the hinged rear panel. Pull the Windjammer and blower
motor cables through the hinged rear
cover as you close it.
5 Lift the CAP and remove it from the
MF
C.
It is necessary for two people to lift
the CAP.
• Make sure that the area around
the MFC is clear.
• Stand on the two sides of the
MFC.
• Hold below the CAP at the front
and the back.
• Lift the CAP and move it off the
MFC.
Step Action Information
