4. Service Procedures - Machine Adjustments and Calibration
82 Morgana DocuMaster MFC - Service Manual
4.5.17 Adjust the Crease Pressure
To form a defined and even crease the crease blade must be set so that it is correctly
aligned with the crease matrix when the matrix is at the top of its operating stroke.
Diagnostic Procedures
Blade Adjustment Cam
Adjust Crease Matrix
Bolt (2)
Crease Blade at t.d.c.

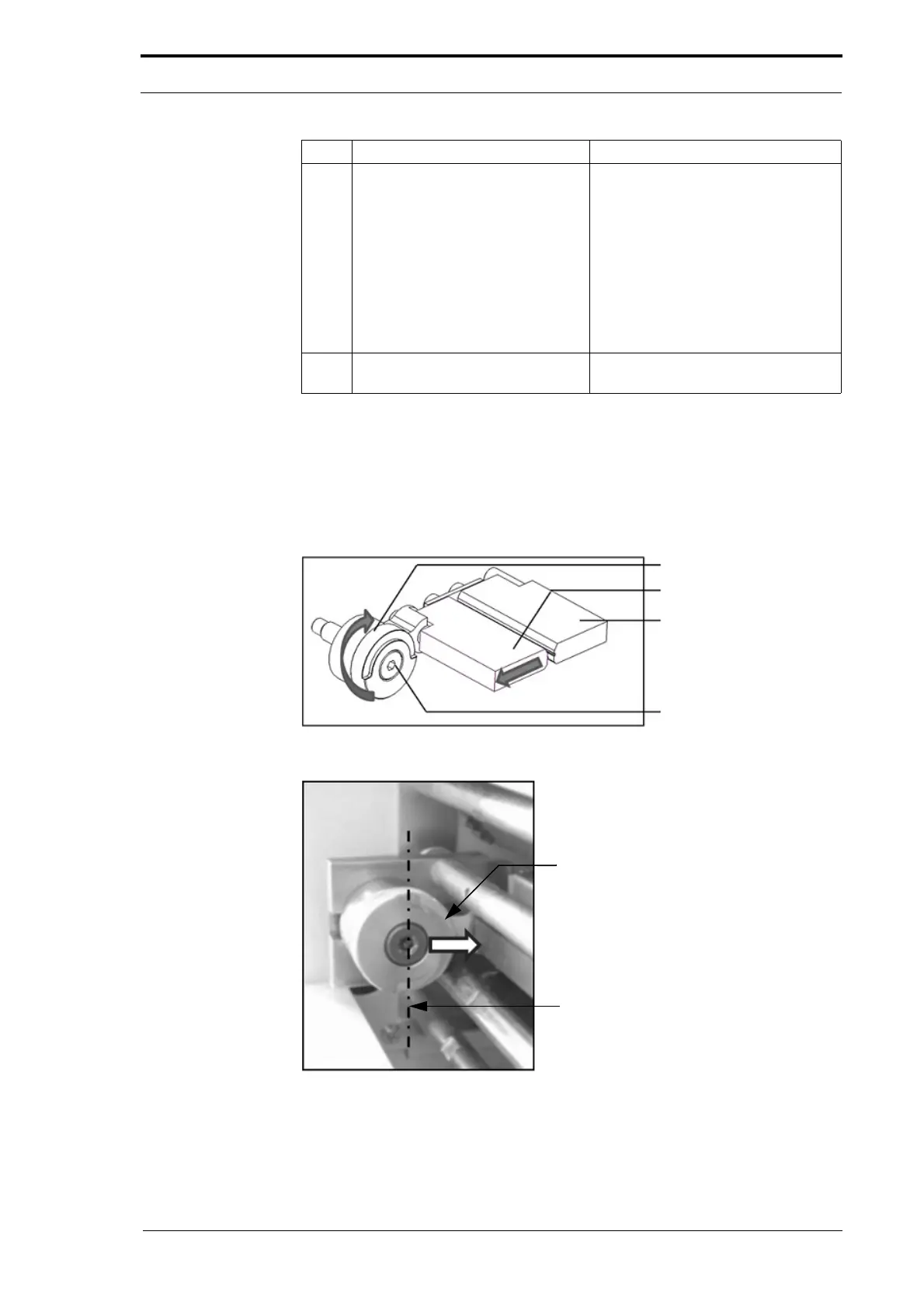

Figure 4.57 Adjust the Crease Blade Pressure
Blade adjustment cam cut-out
faces the blade-set
Centre Line
Figure 4.58 Crease Blade-Set at Minimum Pressure
6 Adjust the DynaTilt home switch.
• Move the mounting lever up so
that the switch actuator touches
the creaser-unit dowel-pin.
• Move the mounting lever up
slowly until the Multimeter
indicates that the DynaTilt home
switch has closed.
• Tighten the locking screw.
• Connect the two wires to the
DynaTilt home switch.
7 Make the MFC do a DynaTilt
reference ch
eck.
(See Section 4.5.16.1).
Step Action Information
