Morgana DocuMaster MFC - Replace the Drive Motor

4. Service Procedures - Replace Components - DRV Module
112 Morgana DocuMaster MFC - Service Manual
4.7.2 Replace the Drive Motor
Drive Pulley
Bolt and Nut (4)

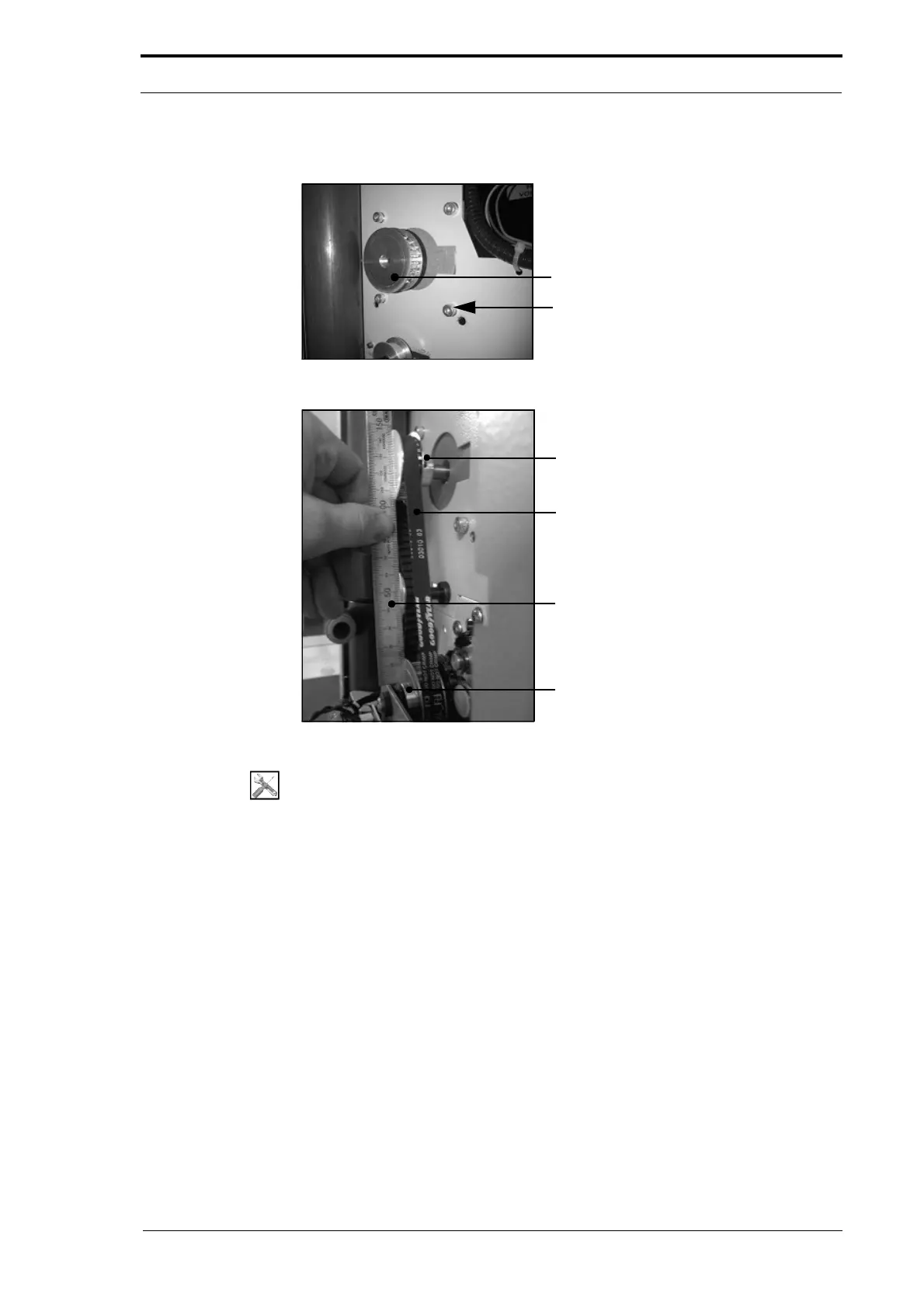

Figure 4.99 Drive Motor Pulley
Drive Pulley
Main Drive Belt
Straight-Edge (6” Rule)
Primary Drive Pulley
Figure 4.100 Align the Drive Pulleys
Tools:

• Allen Key: 2.5mm, 4mm
• Spanner: 8mm
• Pliers: Side Cutters
• 6” Steel Rule.
Before you start:
• Remove the LH side covers (See Section 4.2.6)
• Open the hinged front panel and hinged top panel (See Section 4.2.3)
• Open the hinged rear panel (See Section 4.2.4)
