4. Service Procedures - Replace Components - DRV Module
4
4.7 Replace Components - DRV Module
4.7.1 Remove the DRV Module
The Drive Module (DRV) must be removed from the MFC before you can remove a
feed bin. When you replace components inside the DRV you do not need to remove
the DRV.

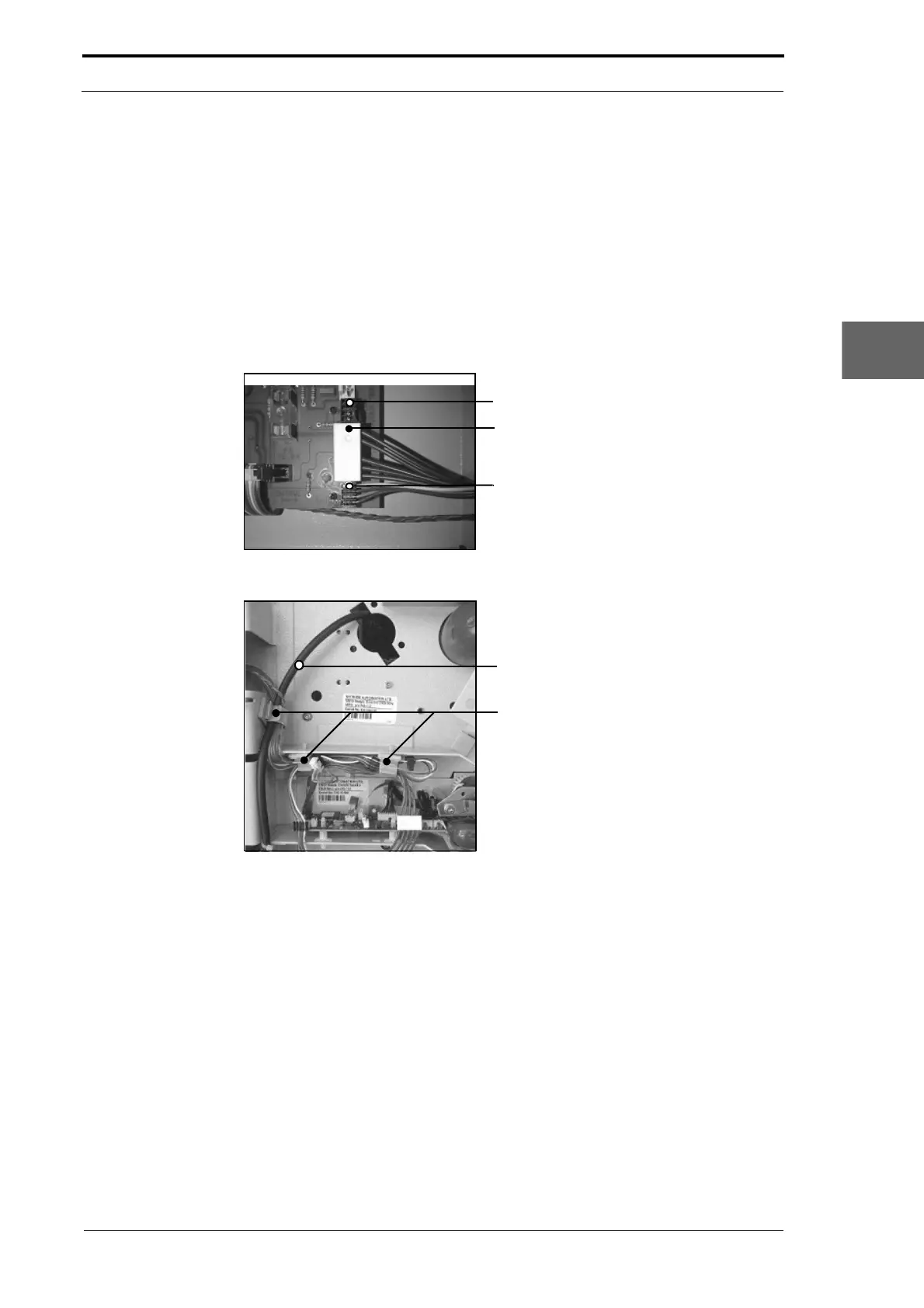

4.7.1.1 Disconnect the Electrical Cables
Link
Power Bus Cable
Data Bus Cable
Figure 4.87 Power and Data Buses
Creaser Module Power Supply Cable
Cable Clamps
Figure 4.88 Signal Interface Connections
