Morgana DocuMaster MFC - Service Manual 9
1. Introduction - Safety Interlocks
1
1.7.2 The Emergency Stop Switch
Drive Module (LH side)
Emergency Stop Switch

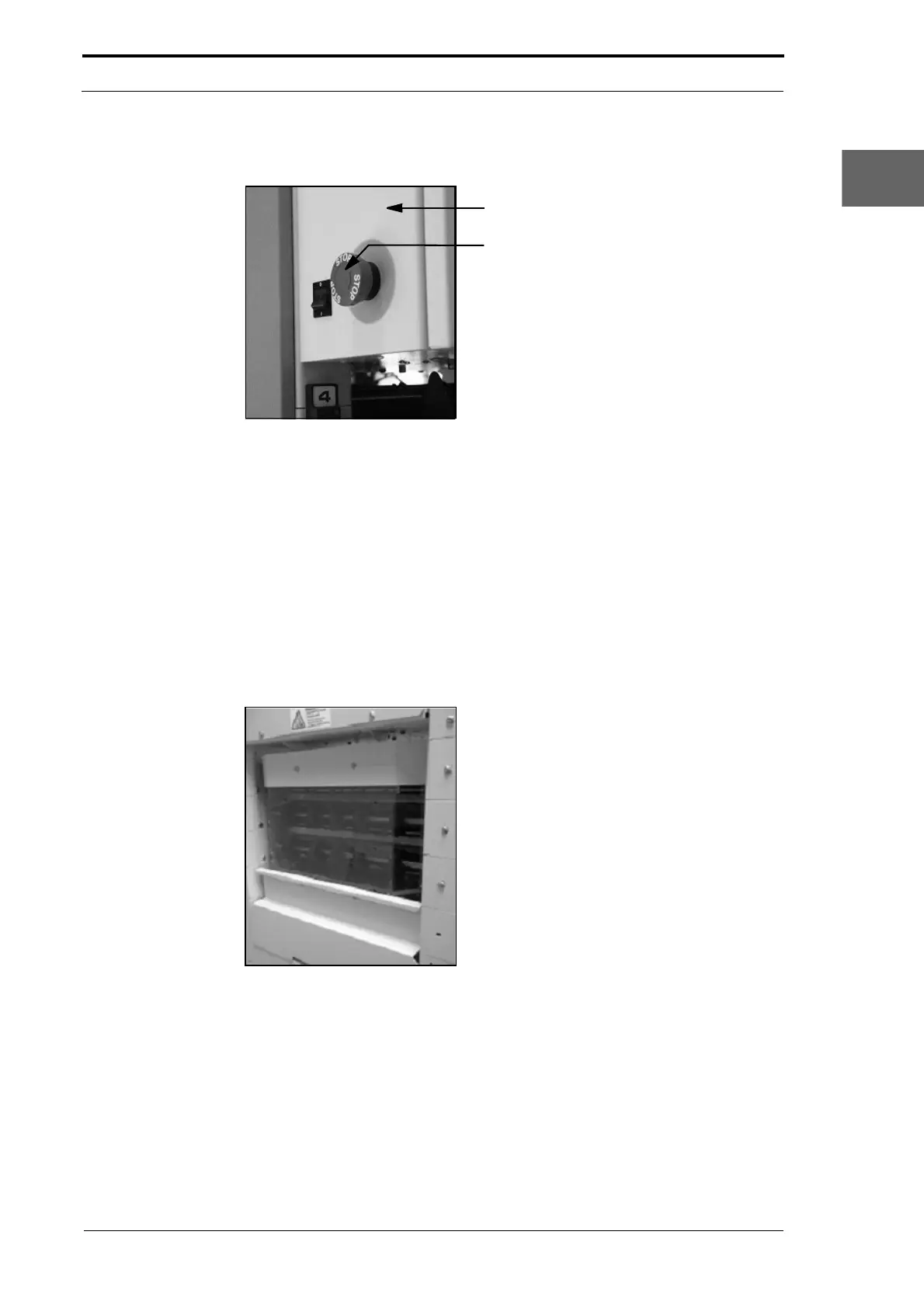

Figure 1.3 Emergency Stop Switch
The emergency stop interlock removes mains power from the drive system when the
emergency stop switch is pushed in.
These systems do not operate when the emergency
stop switch is pushed in:
• the conveyor drive
• the creaser conveyor drive
• the creaser mechanism.
1.7.3 The Rear Guard
Figure 1.4 Rear Guard
The rear guard interlock removes the drive signal when the rear guard is removed from
the MFC.
These systems do not operate when the rear
guard is removed:
• the conveyor drive
• the creaser conveyor drive.
