1.7 Safety Interlocks
The DocuMaster MFC has safety interlocks that:
• Protect the operator when the machine is open for maintenance or to clear a jam.
• Protect a service technician when the machine is open for service procedures.
1.7.1 The Main Input Switch
Main Input Switch

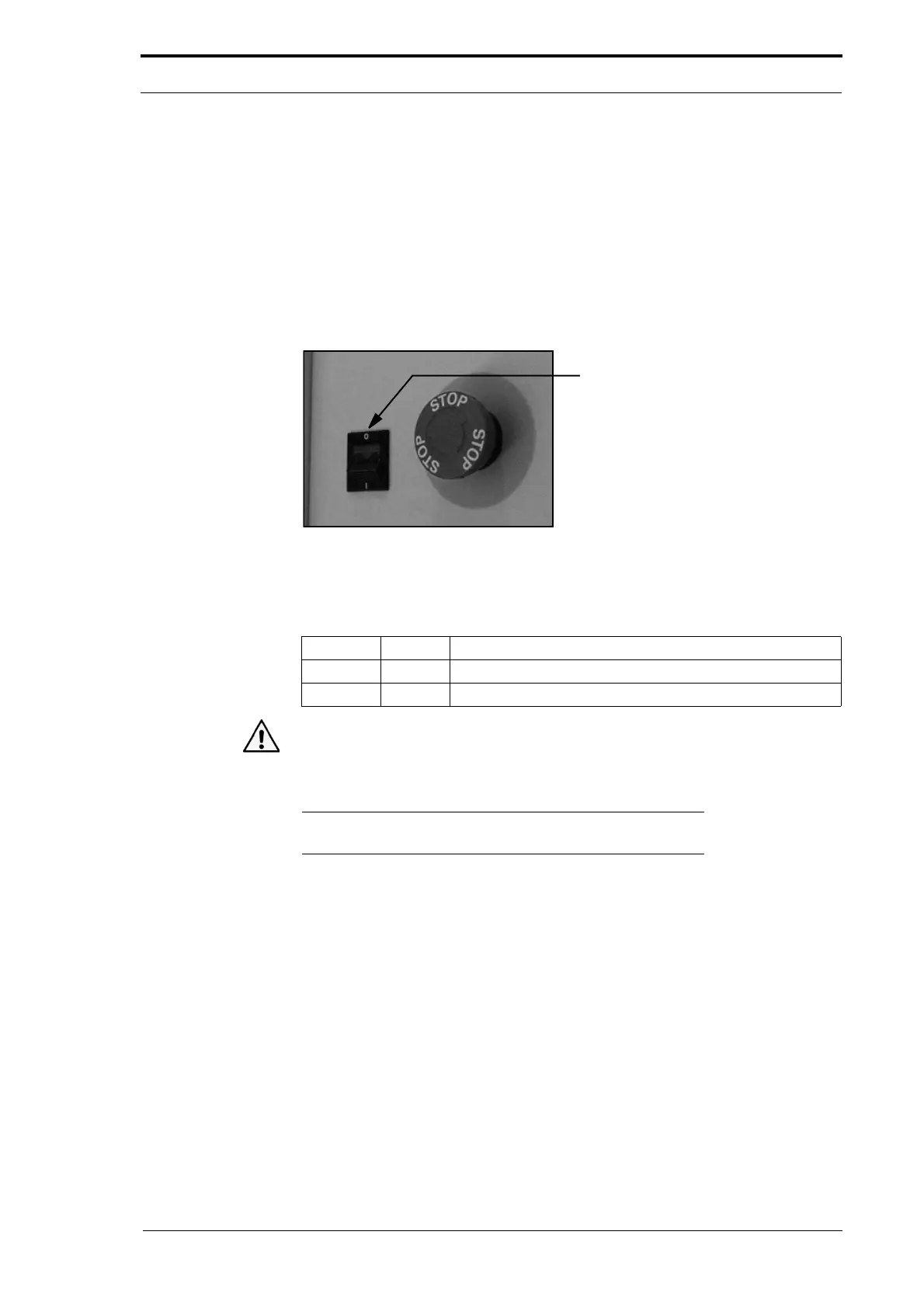

Figure 1.2 MFC Main Input Switch
The main input switch controls the supply of electrical power to the MFC. The switch
has two positions.
Position Status Information
0 OFF The switch stops the supply of electrical power to the MFC
I ON The switch starts the supply of electrical power to
the MFC

Warning: Always remove the main power cord from the MFC when you work on the
CAP, DRV and electrical-cabinet modules. High
-voltage electricity can cause serious
injury and death.
Note:
The mains input switch is illuminated when it is set in the
ON (I) position.
