Morgana DocuMaster MFC - Service Manual 119
4. Service Procedures - Replace Components - Suction Feed Bin
4.8 Replace Components - Suction Feed Bin
4.8.1 Remove a Suction Feed Bin
Each of the feed bins on the MFC can be removed as one module. Remove a single
feed bin if repair or maintenance is necessary. If it is necessary to remove the creaser
module, remove the feed bins as a group (see Section 4.10.1.1).
The procedure that follows gives instructions
on how to remove the top feed bin, but
the same procedure can also be used to remove any other feed bin.
Tray Lift Motor
Screw
Air/Vacuum Valve
Chain Tensioner Plate
Knock-Back Solenoid
Link Cable

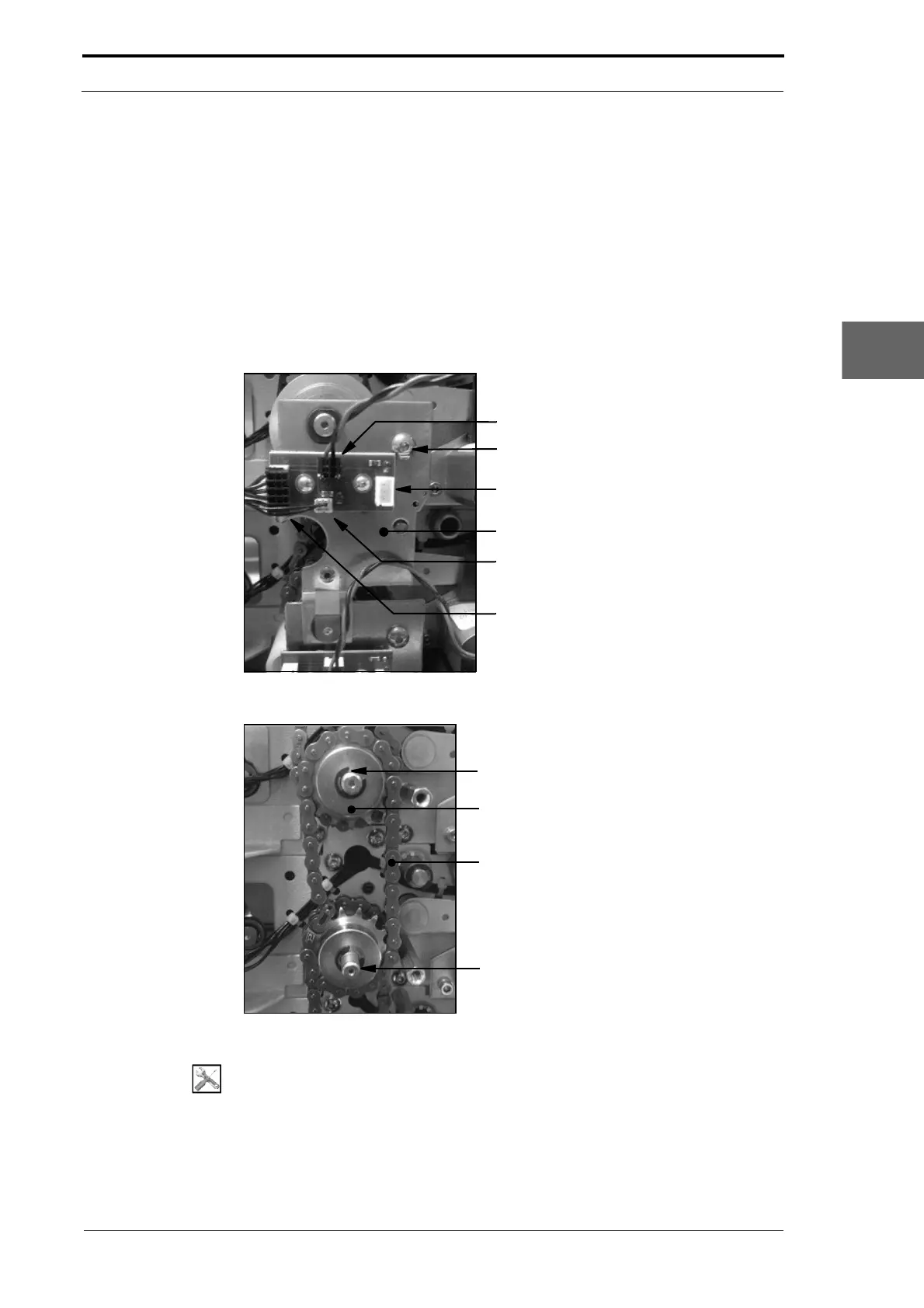

Figure 4.109 Chain Tensioner Plate and Distributor PCB Connections
Circlip
Drive Sprocket
Drive Chain
Drive Shaft
Figure 4.110 Drive Chain and Sprockets
Tools:
• Allen Key: 3mm
• Screwdriver: Small Flat-blade
• Pliers: Side Cutters.
