Morgana DocuMaster MFC - Service Manual 145
4. Service Procedures - Replace Components - Creaser Module
4
4.10 Replace Components - Creaser Module
4.10.1 Remove the Creaser Module
You must remove the creaser module to complete the service procedures that follow:
• 4.10.3 Replace the Input Rollers.
• 4.10.4 Replace the Output Rollers.
• 4.10.6 Replace the Edge-Sensor Set.
• 4.10.7 Replace the Creaser Position Sensor Assembly.
If it is necessary to remove the creaser mo
dule from the MFC, you must first remove
the modules that are above the creaser module. Remove the feed bin modules as a
group, so that you can complete the procedure more quickly.
4.10.1.1 Remove the Feed Bins
Chain Tensioner
The Creaser Module
The Transfer Chain

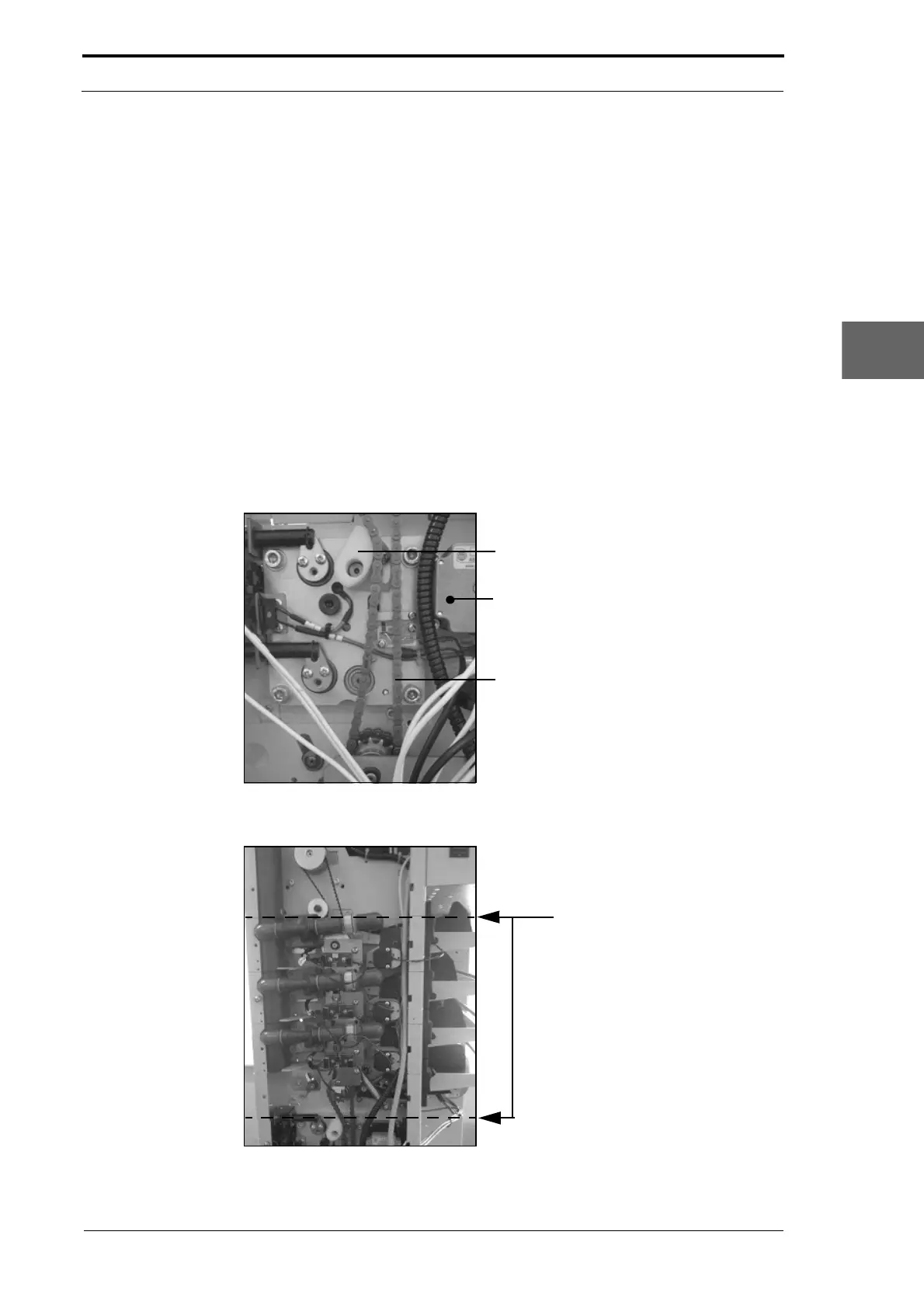

Figure 4.144 The Transfer Chain
Remove the feed bins
as a group
Figure 4.145 The Feed Bins (LH Side)
