7. Electrical and Control System - PCBs
222 Morgana DocuMaster MFC - Service Manual

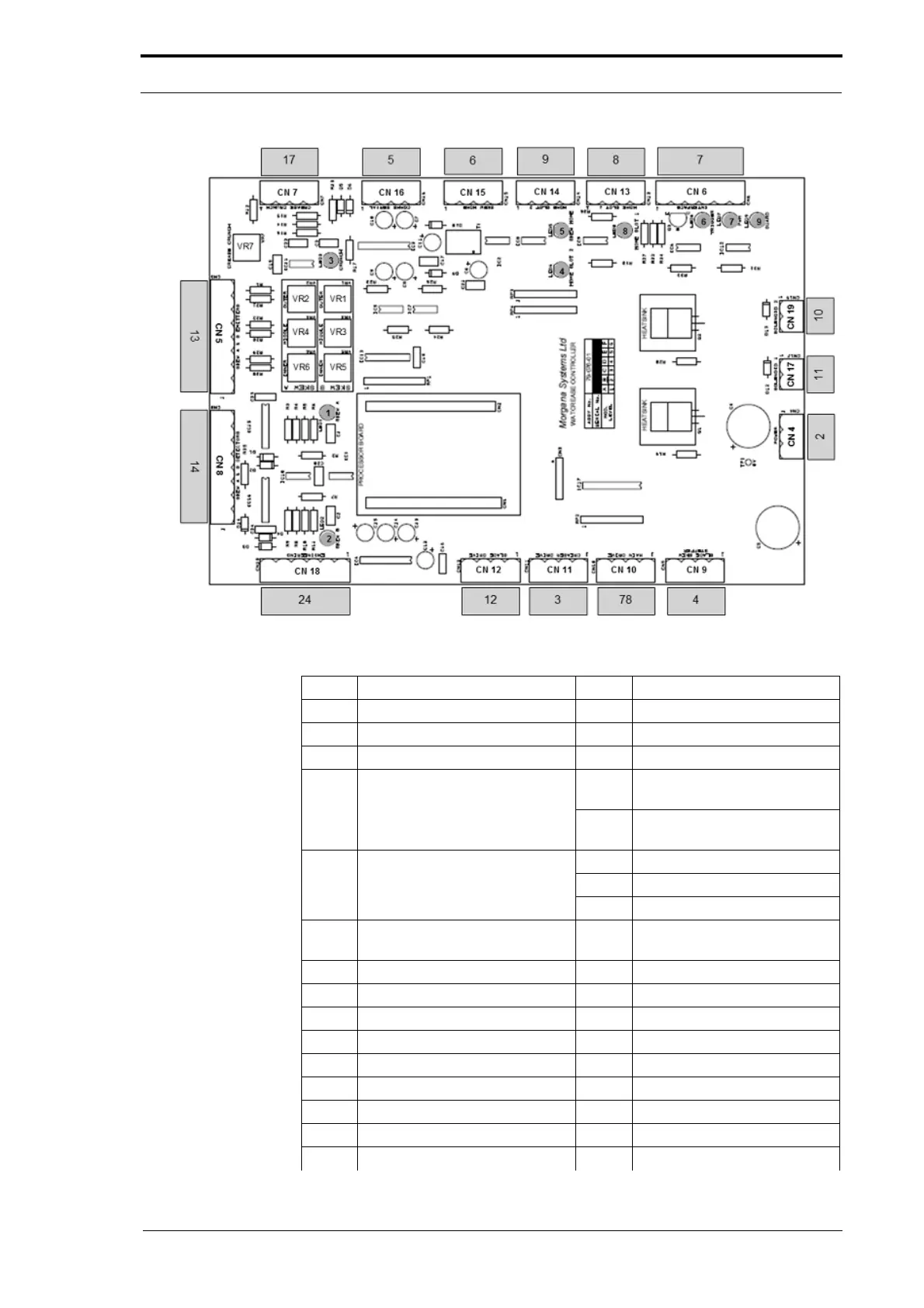

Figure 7.10 Creaser Controller PCB
Description LED LED Function (LED ON)
CN1 Processor PCB
CN2 Processor PCB
CN4 5V/24V Power input
CN5 Edge sensor emitters LED1 Active emitter/sensor in Bank
A blocked
(RH)
LED2 Active emitter/sensor in Bank
B blocked
(LH)
CN6 Creaser/Feeder interface LED6 Feed trigger from feeder
LED7 PWM output to feeder
LED9 Guard (not used)
CN7 Creaser jam sensor LED3 Creaser jam emitter/sensor
blocked
CN8 Edge sensor receivers
CN9 DynaTilt drive signal
CN10 Main drive signal
CN11 Creaser drive signal
CN12 Crease blade drive signal
CN13 Home slot 1 (blade out) LED8 Blade home
CN14 Home slot 2 (crease flag) LED4 Crease flag blocked
CN15 DynaTilt home switch LED5 DynaTilt on home switch
CN16 Serial comms
