Motorola Astro XTL 5000 Basic Service Manual

6881096C73-O June 11, 2003
Disassembly/Reassembly Procedures: Replacement Procedures 8-17
15. Remove the main board by sliding a finger into the provided opening at the front of the
chassis and gently pressing up on the 50-pin connector, lifting up the front of the PCB.

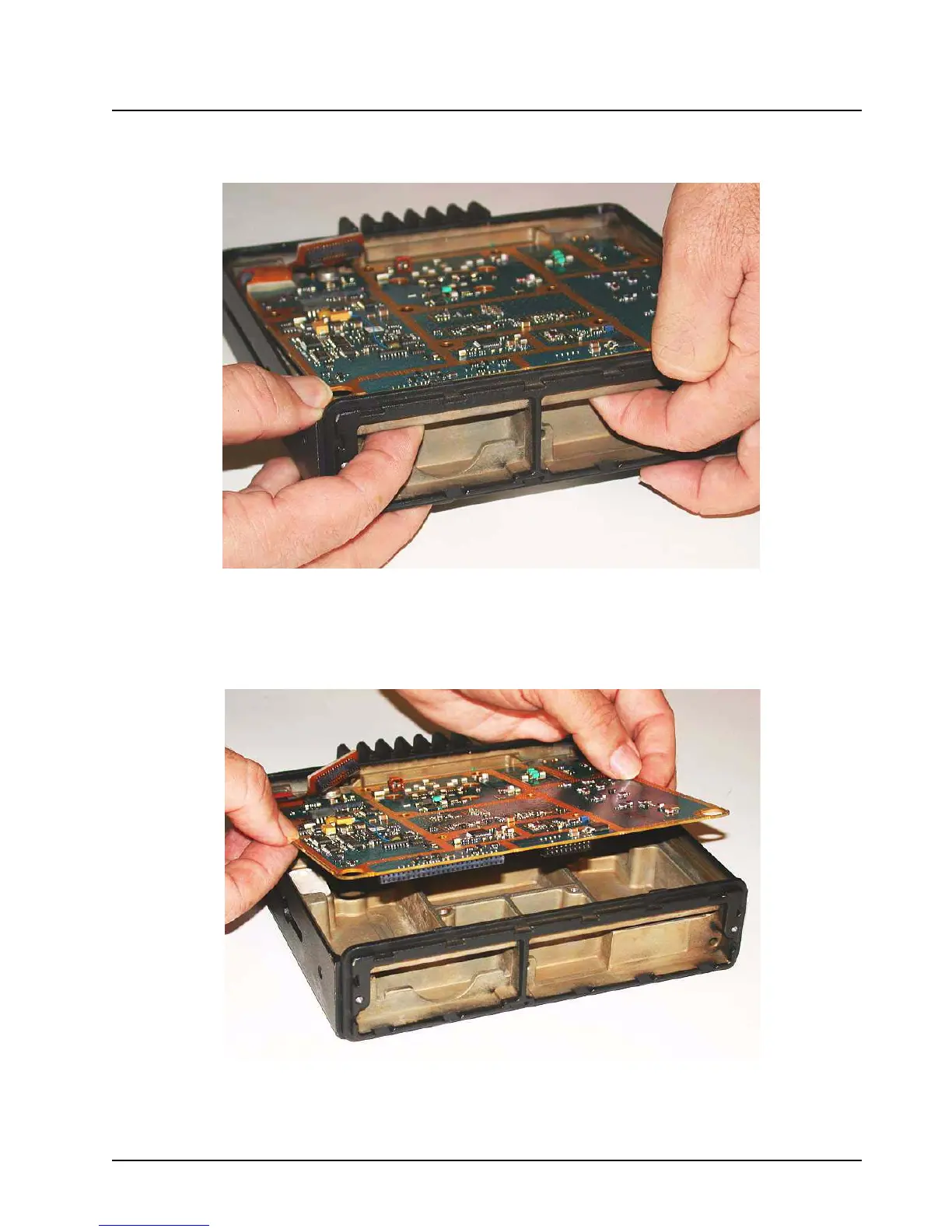

Figure 8-18. Pushing Up the Main Board
16. Then, slide the main board towards the front of the chassis and up and out. Handle the main
board by the edges only, and store it in an antistatic bag.
Figure 8-19. Lifting Out the Main Board
