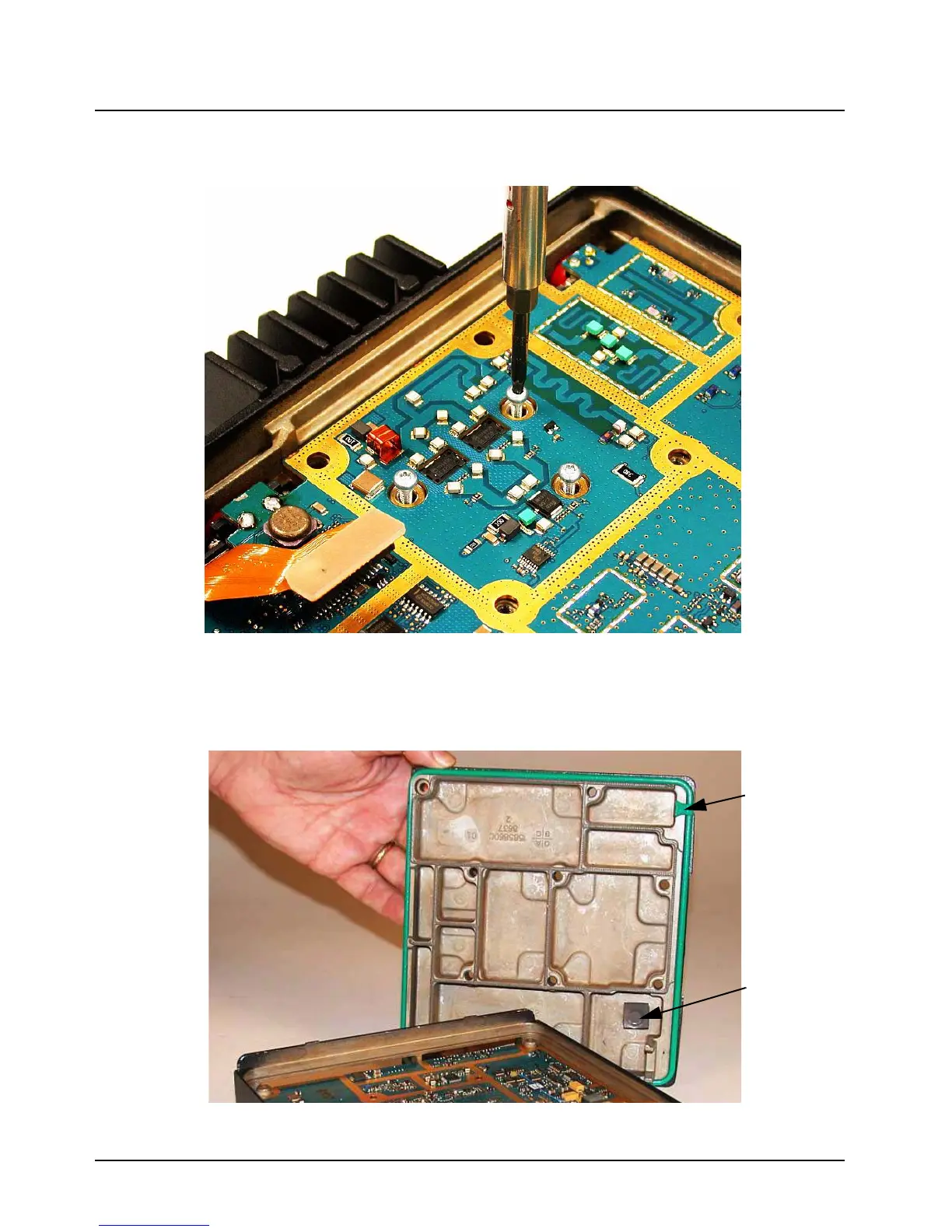

8-24 Disassembly/Reassembly Procedures: Replacement Procedures
6. Insert and torque the three PA screws to 6-8 in.-lbs. Start all three screws prior to torquing
them down.
Figure 8-27. Installing the PA Screws
7. Inspect the reverse polarity thermal pad located on the top cover, and then inspect and seat
the main seal properly on the cover. Be careful to properly align the tab (see figure below).
Figure 8-28. Inspecting the Thermal Pad and Installing the Cover Main Seal
Tab
Thermal
Pad
