Motorola Astro XTL 5000 Basic Service Manual

11-6 Exploded Views and Parts Lists: XTL 5000 (3.5-35 W) Radio Exploded View
June 11, 2003 6881096C73-O
11.5 XTL 5000 (3.5-35 W) Radio Exploded View

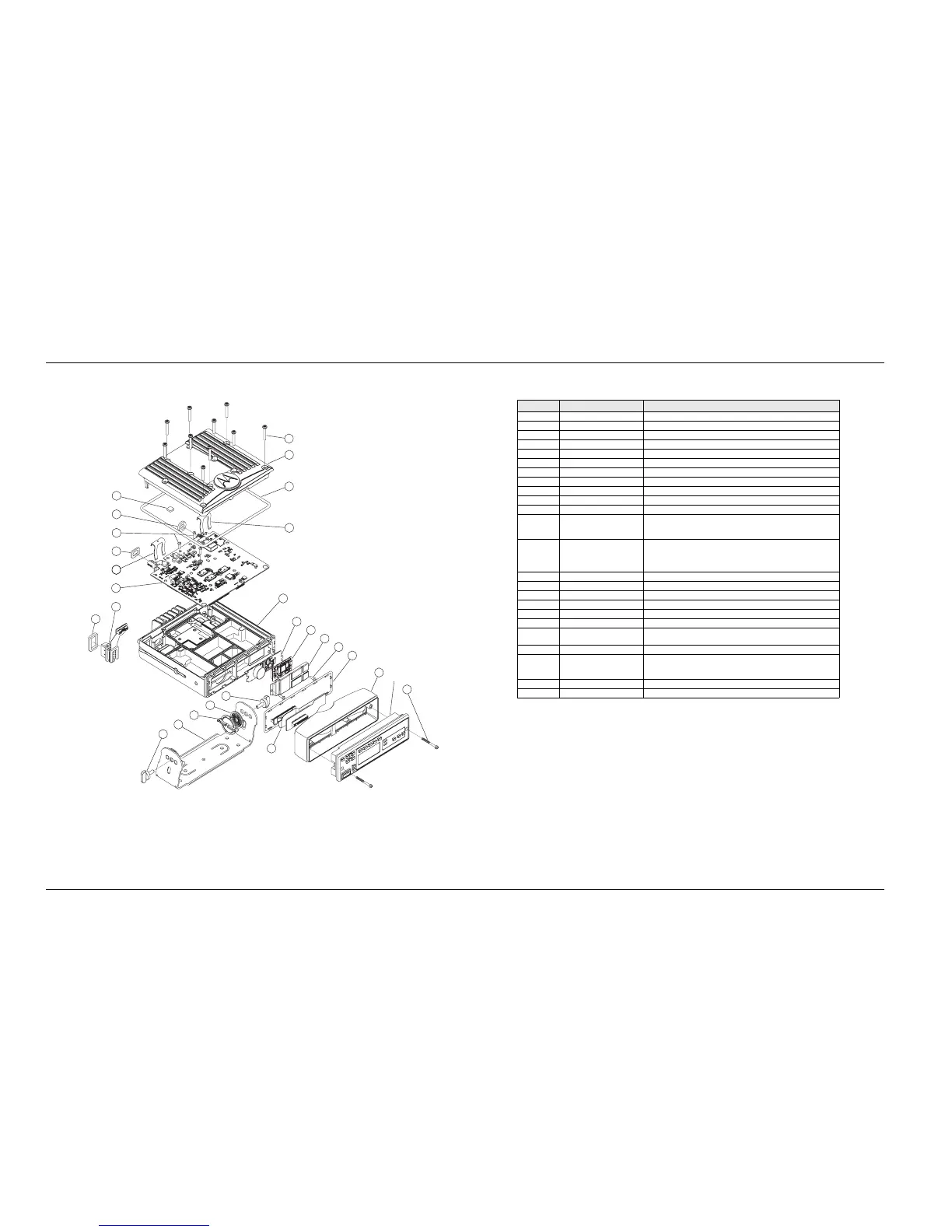

Figure 11-5. XTL 5000 (3.5-35 W) Radio Exploded View
13
14
15
16
17
23
24
21
18
19
20
21
5
8
7
6
4
11
5
1
2
3
12
9
10
22
MAEPF-27637-O
ref.11.2-11.4
Table 11-6. XTL 5000 (3.5-35W) Radio Parts List
Item No. Motorola Part No. Description
1 0385870E01 SCREW ASSEMBLY, TOP COVER
2 1585860C02 COVER, XTL 5000
3 3285495E01 SEAL, MAIN O-RING
4 7585060F01 PAD, THERMAL, GREY
5 4285702E01 CLIP, RF/DC RETENTION
6 3285743E01 SEAL, RF CONNECTOR
7 0310907A20 SCREW, M3X0.5X10 PAN-HEAD
8 3285744E01 SEAL, DC CONNECTOR
9 HUF4017_ PCB ASSEMBLY, MAIN (Includes Items 6 and 8)
10 3285742E01 SEAL, ACCESSORY
11 3085741E01 CONNECTOR, REAR ACCESSORY PORT
12 2785862C02 CHASSIS, XTL 5000
(See Table 8-2, “Chassis Thermal Pad Parts,” on page 8-30 for
thermal pad part numbers.)
13 HLN6876_
or
HLN6877_
PCB ASSEMBLY, SECURE INTERFACE (3-DAY KEY
RETENTION)
PCB ASSEMBLY, SECURE INTERFACE (30- SECOND KEY
RETENTION)
14 --------- MODULE, SECURE
15 2685498E01 SHIELD, SECURE
16 0310907A20 SCREW, M3X0.5X10, PAN-HEAD
17 3285471E01 SEAL, HEADBRIDGE
18 4305425W01 SPACER, INNER
19 4305426W03 SPACER, OUTER
20 HLN6861_ TRUNNION, XTL 5000
INCLUDES 18 (x2), 19 (x2), AND 21 (x2)
21 0305760W02 SCREW, M5.0X0.8X14.9 WING
22 3085020F01
or
3085019F01
FLEX, DASH MOUNT
FLEX, REMOTE MOUNT
23 1585245E01 HOUSING, HEADBRIDGE
24 0380077M07 SCREW, CONTROL HEAD M3X35
Note: _ = The latest version kit. When ordering, refer to your specific kit for this suffix letter.
