6881096C73-O June 11, 2003
Introduction: Control Head Descriptions 1-3
1.4.1 W3 Control Head

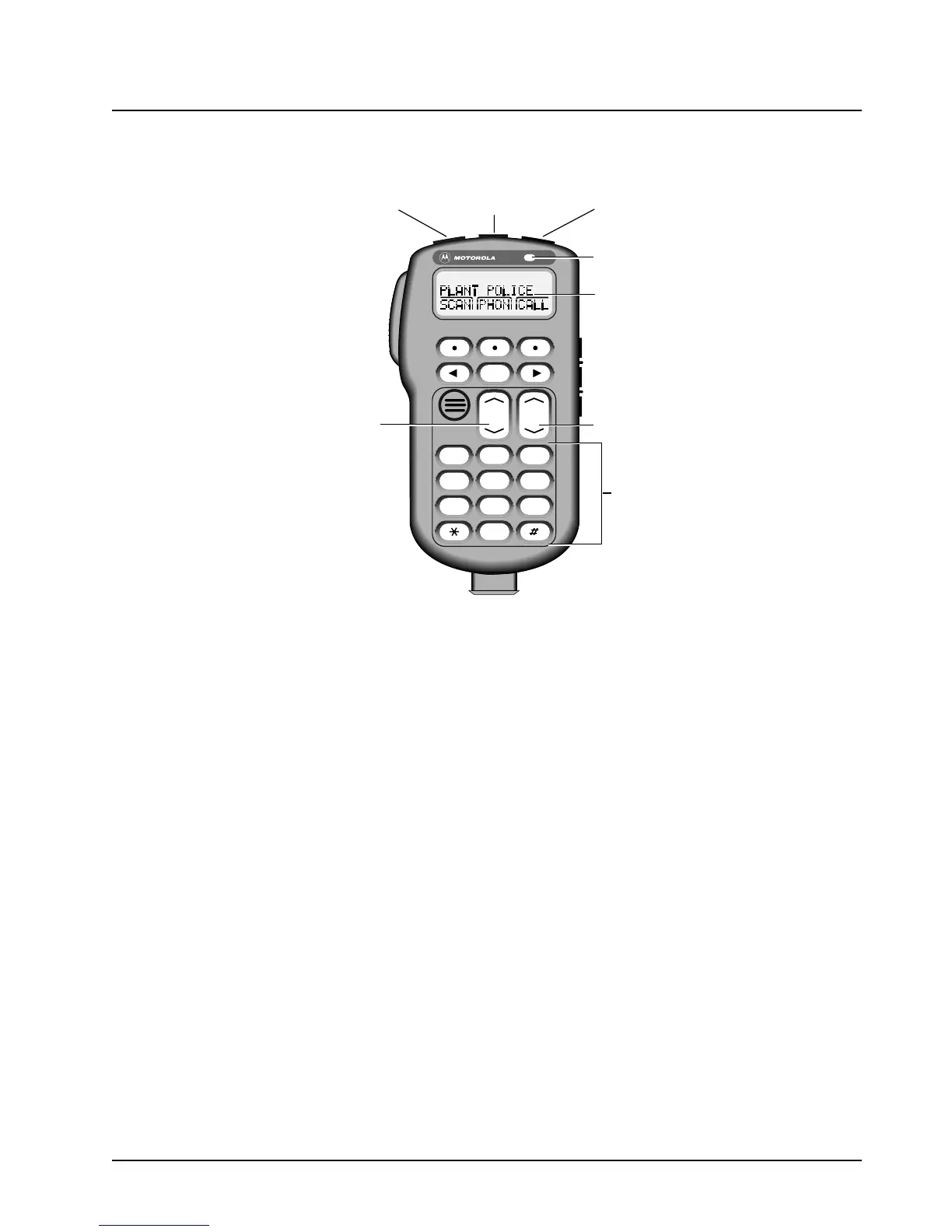

Figure 1-1. W3 Hand-Held Control Head
1.4.2 W3 Controls
On/Off Button (T1) — Turns the radio on and off.
Orange Programmable Button (T2) — Programmed at the factory for emergency. Field-
programmable by a qualified radio technician.
Programmable Button (T3) Field-programmable by a qualified radio technician.
LED Indicator Green/red light-emitting diode indicates operating status.
•Display Two-line x 14-character display provides visual information about many radio
features.
•Keypad Provides control of, and data interface with, many features.
Programmable Side Button 1 (S1) Field-programmable by a qualified radio technician.
Programmable Side Button 2 (S2) Field-programmable by a qualified radio technician.
Programmable Side Button 3 (S3) Field-programmable by a qualified radio technician.
Mode Control Is used for selecting modes and programming menus.
Volume Control Is used for selecting the volume level, editing names, and making certain
radio adjustments.
Push-To-Talk (PTT) Button Engages the transmitter.
MAEPF-27650-O
MODE
HOME
2
ABC
1
QZ
3
DEF
4
GHI
5
JKL
6
MNO
7
PRS
8
TUV
9
WXY
0
VOL
Side Button 1 (S1)
Side Button 2 (S2)
Side Button 3 (S3)
On/Off
Button
(T1)
Push-To-Talk
(PTT) Button
LED
Indicator
Alphanumeric
Keypad
Volume
Control
Mode Control
Orange Programmable
Button
(T2)
Programmable
Button
(T3)
Display
