Motorola Astro XTL 5000 Basic Service Manual

June 11, 2003 6881096C73-O
8-10 Disassembly/Reassembly Procedures: Replacement Procedures
6. Remove the plastic headbridge by squeezing in the center of the top and bottom sides of the
part and pulling away from the transceiver.
NOTE:Be careful to avoid pulling on the flex.

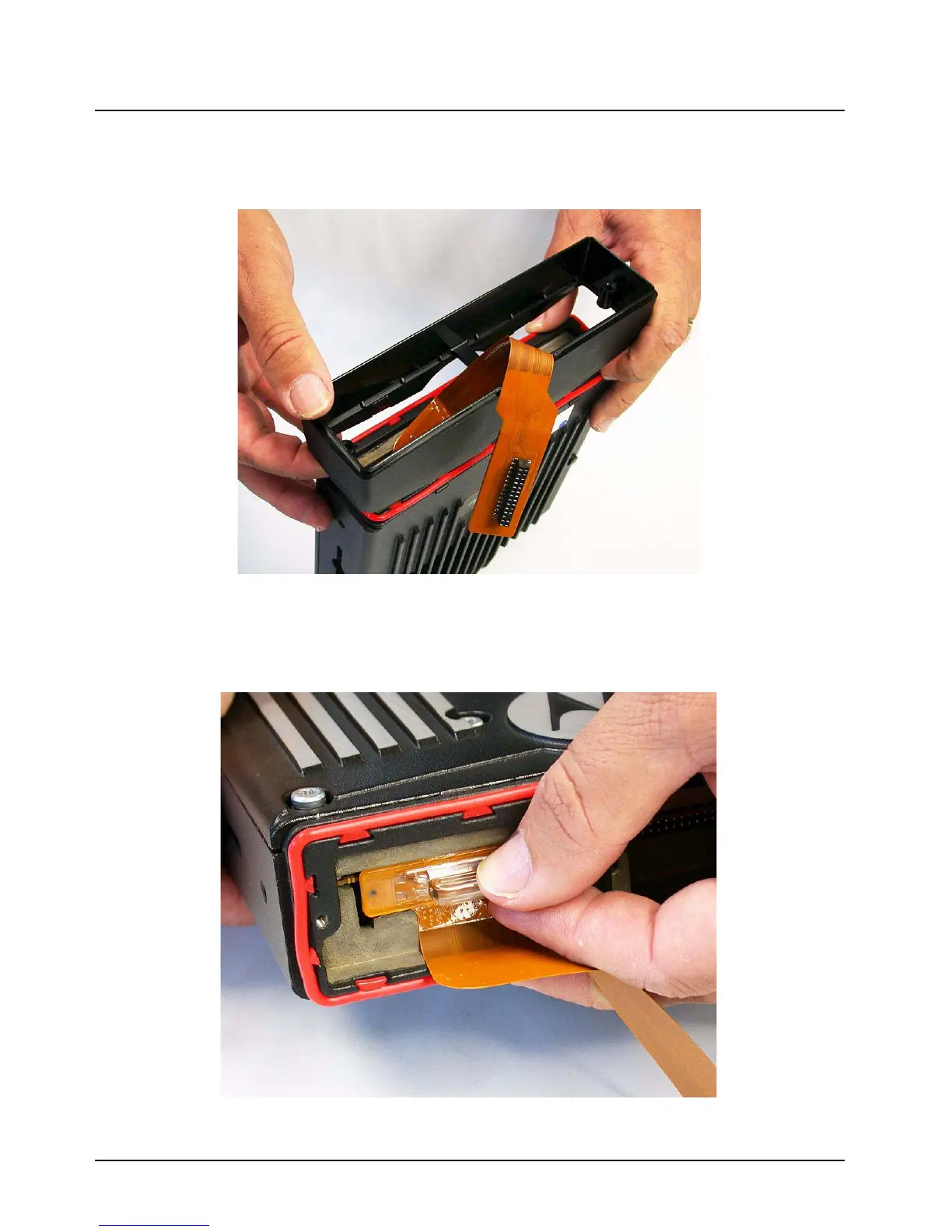

Figure 8-6. Removing the Headbridge
7. Carefully remove the control-head flex from the transceiver by grasping the provided handle
and separating it from the connector.
Figure 8-7. Removing the Flex (Main-Board Connector)
