6881096C73-O June 11, 2003
Disassembly/Reassembly Procedures: Replacement Procedures 8-23
5. Connect the J2 rear accessory connector flex to the PCB.

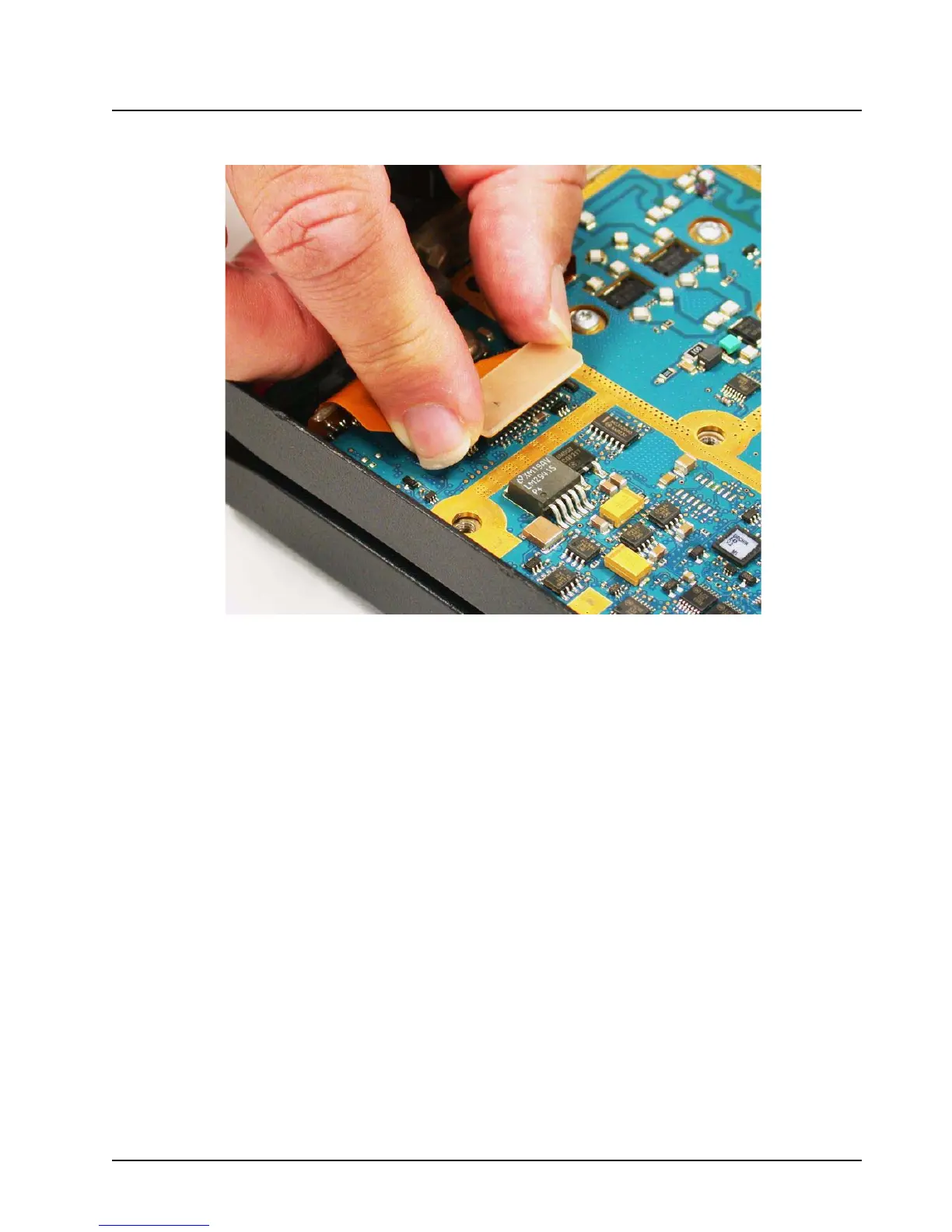

Figure 8-26. Connecting the J2 Rear Accessory Connector Flex to the Main Board
