Exploded Views and Parts Lists: Handlebar Installation (Control Head and Speaker Mounted Together 11-9
6881096C73-O June 11, 2003
11.9 Handlebar Installation (Control Head and Speaker Mounted Together

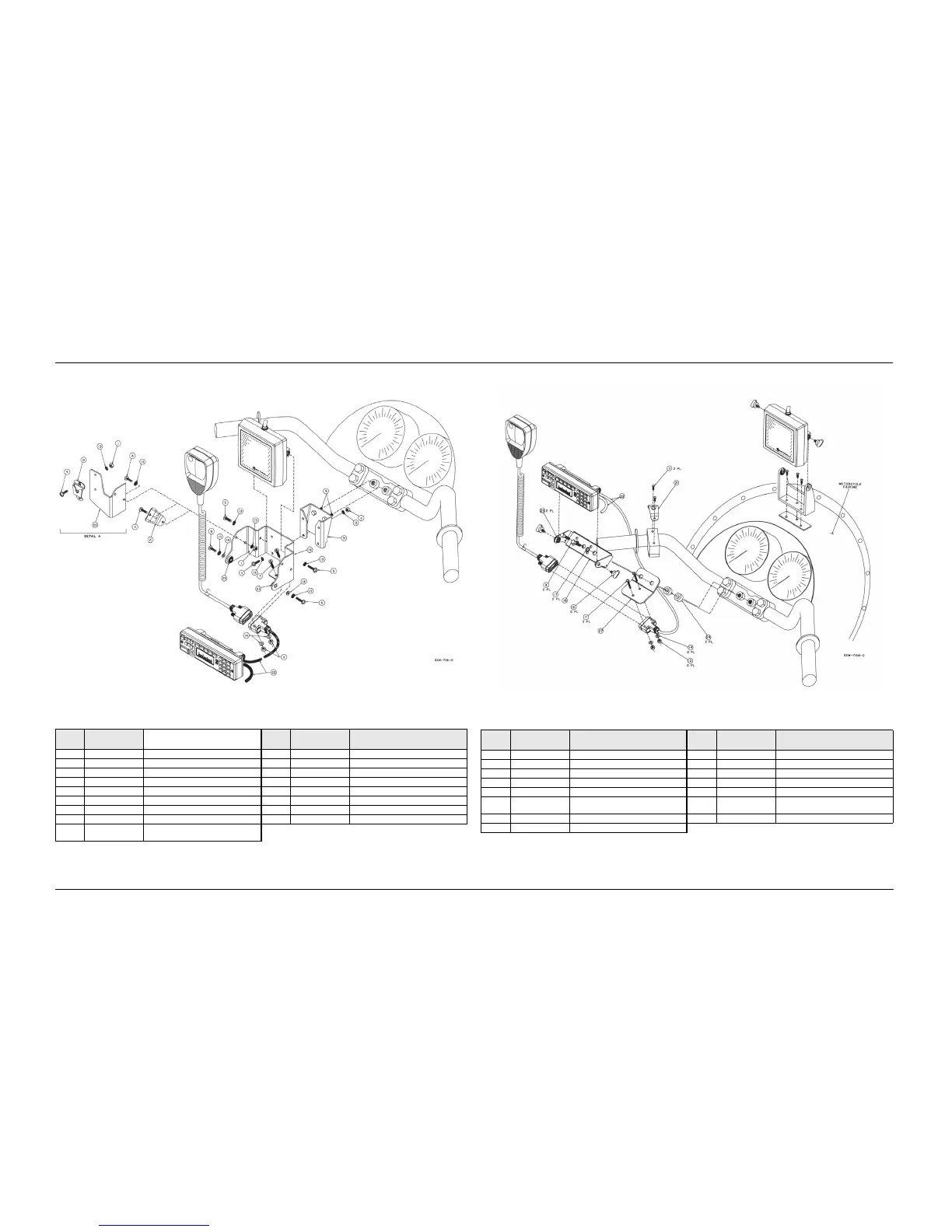

Figure 11-9. Handlebar Installation (Control Head and Speaker Mounted Together) Exploded View
* This is a customer-supplied part.
** These parts are provided in the hang-up clip for mounting the hang-up clip on surfaces that are not metallic and/or are not grounded to the
motorcycle chassis.
11.10 Handlebar Installation (Control Head and Speaker Mounted Separately)
Figure 11-10. Handlebar Installation (Control Head and Speaker Mounted Separately) Exploded View
* This is a customer-supplied part.
** These parts are provided in the hang-up clip for mounting the hang-up clip on surfaces that are not metallic and/or are not grounded to the
motorcycle chassis.
Table 11-10. Handlebar Installation (Control Head and Speaker Mounted Together) Parts List
Item
No.
Motorola Part
No.
Description
Item
No.
Motorola Part
No.
Description
1 0200001355 Nut, hex, 8-32 x 5/16 x 1/8 (4 used) 19 0780200P01 Bracket, control head/speaker
2 0205681N03 Nut, hex, M5 x 0.8-6H 8.87 (6 used) 20 0780201P01 Bracket, mic extension
4 0307644M19 Screw, 8-32 x 7/16 (4 used) 21** 0180743T91 Eyelet, spring & bracket
5 0380114M03 Screw, M5 x 0.8 x 12 (6 used) 22 See model charts Cable, control head
6 0380114M04 Screw, M5 x 0.8 x 16 (2 used) 23 4380128N01 Spacer, trunnion (4 used)
7 0380114M05 Screw, M5 x 0.8 x 30 (2 used) See model charts Hardware kit, motorcycle
9* Screw, M8 (2 used) See model charts Adapter kit, control head/speaker, incl:
13 0400002647 Lockwasher, #10 ext. tooth (19 used) 31 0780041R01 Bracket, mounting, handlebar
14 0400128991 Washer, flat 0.234 x 0.5 x 0.048 (4
used)
Table 11-11. Handlebar Installation (Control Head and Speaker Mounted Separately) Parts List
Item
No.
Motorola Part
No.
Description
Item
No.
Motorola Part
No.
Description
2 0205681N03 Nut, hex, M5 x 0.8-6H 8.87 (6 used) 21** 0180743T91 Eyelet, spring & bracket
7 0380114M05 Screw, M5 x 0.8 x 30 (2 used) 22 See model charts Cable, control head
8 0384244C06 Screw, wing, black (4 used) 23 4380128N01 Spacer, trunnion (4 used)
9* Screw, M8 (2 used) See model charts Hardware kit, motorcycle
11** 0312002A01 Screw, self-drilling (2 used) See model charts Adapter kit, control head/speaker, incl:
14 0400128991 Washer, flat 0.234 x 0.5 x 0.048 (4
used)
24 4380042R01 Spacer, bushing (2 used)
17* Lockwasher, M8, ext. tooth (2 used) 27 0780046R01 Bracket, mic cable
18 0780127N01 Trunnion, remote mount
