11-4 Exploded Views and Parts Lists: W5 and W7 Pushbutton Control Head Exploded View
June 11, 2003 6881096C73-O
11.3 W5 and W7 Pushbutton Control Head Exploded View

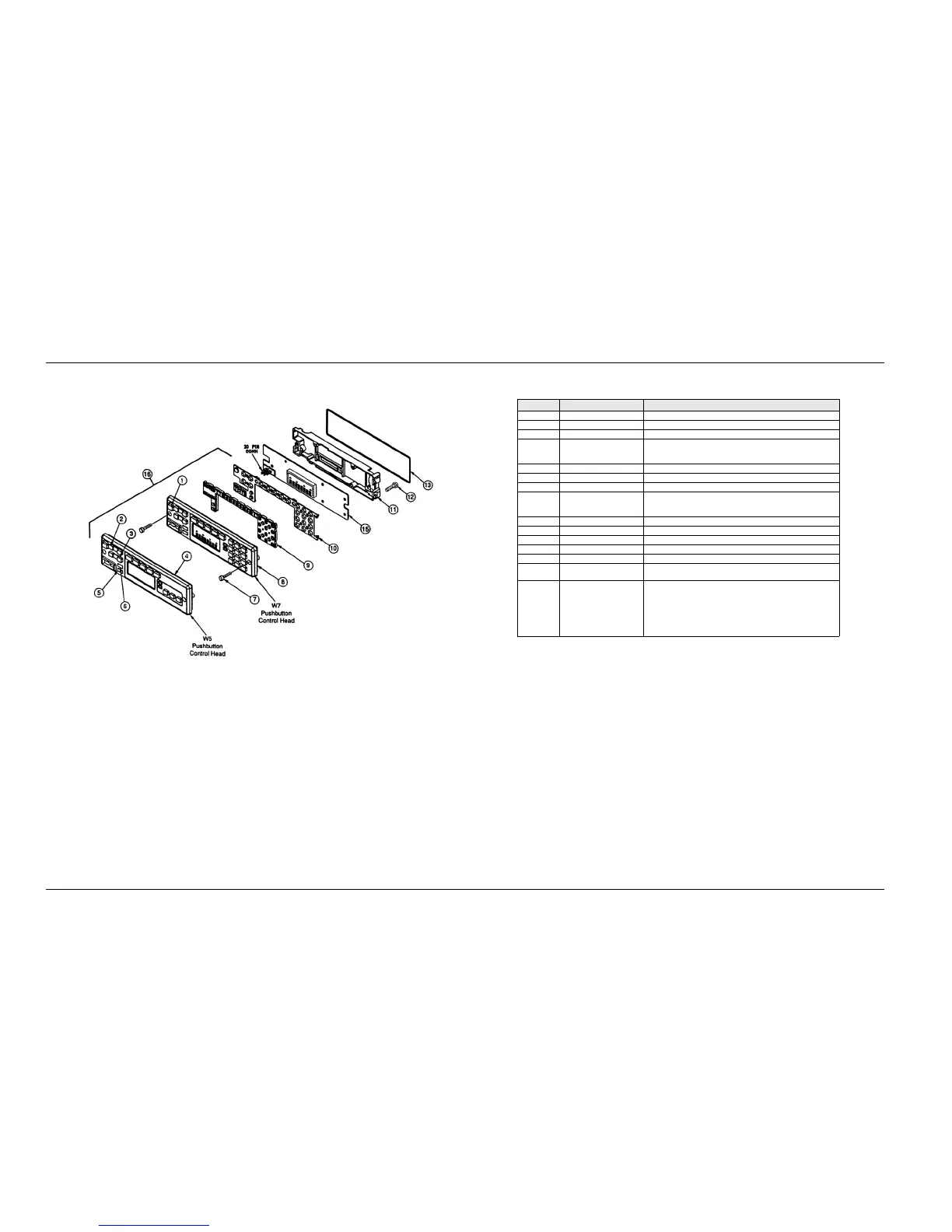

Figure 11-3. W5 and W7 Pushbutton Control Head Exploded View
Table 11-4. W5 and W7 Pushbutton Control Head Parts List
Item No. Motorola Part No. Description
1 3880227M04 SWITCH, On/Off Cap
2 3880009P01 SWITCH, Mode Rocker
3 3880009P02 SWITCH, Volume Rocker
4 1580020S23 or
1580020S25 or
1580020S27
HOUSING, W5 Front Cover (Mobile)
HOUSING, W5 Front Cover (Motorcycle)
HOUSING, W5 Front Cover (Rear)
5 3880092J05 PUSHBUTTON, HOME
6 3880092J05 PUSHBUTTON, DIM
7 0380077M07 SCREW, (Qty 2)
8 1580020S22 or
1580020S24 or
1580020S26
HOUSING, W7 Front Cover (Mobile)
HOUSING, W7 Front Cover (Motorcycle)
HOUSING, W7 Front Cover (Rear)
9 6180017S01 LIGHTPIPE
10 7580012S03 KEYPAD
11 4380019S02 SPACER, Internal Frame
12 0310945A14 SCREW, Tapping (Qty 7)
13 3280289L02 GASKET, Housing
15 HLN6396_ or
HLN6563_
BOARD, Control Head (Mobile)
BOARD, Control Head (Motorcycle)
16 0180049S13 or
0180049S15 or
0180049T16
0180049S12 or
0180049S14 or
0180049T15
ASSEMBLY, W5 Front Cover (Mobile)
ASSEMBLY, W5 Front Cover (Motorcycle)
ASSEMBLY, W5 Front Cover (Rear)
ASSEMBLY, W7 Front Cover (Mobile)
ASSEMBLY, W7 Front Cover (Motorcycle)
ASSEMBLY, W7 Front Cover (Rear)
Item 16 includes items 1, 2, 3, 4 or 8, 5, 6, 9, and 10
Notes: _ = The latest version kit. When ordering, refer to your specific kit for this suffix letter.
The HKN4356_ Radio Cable is used to remote mount the W5 and W7 Control Head.
Universal Crypto Module (UCM) part numbers and descriptions are listed in the Encryption chapter of
this manual.
The dash-mount flex (3085020F01) is used to connect the W5 and W7 control heads to the
transceiver.
