Disassembly/Reassembly Procedures: Replacement Procedures 8-25
8. Place the cover on the chassis and seat it properly. You can compress the cover and chassis
together to squeeze the seal into place and make torquing the screws easier.

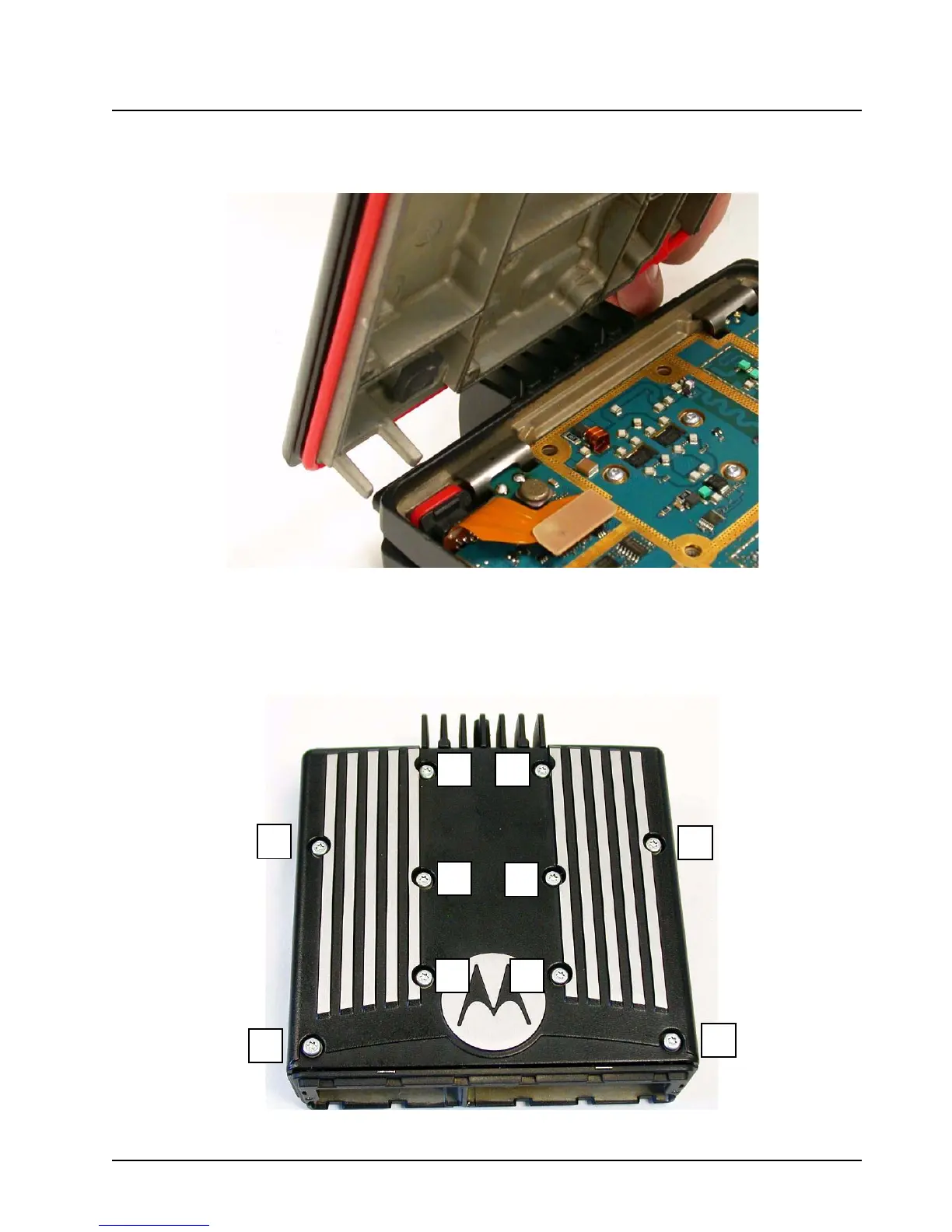

Figure 8-29. Preparing to Place the Top Cover on the Chassis
9. Inspect and reassemble the sealing washers to the ten (10) top cover screws, and then
torque down screws in the indicated order.
All the screws must be torqued to 24-28 in.-lbs, and you should follow the torque sequence
shown in Figure 8-30 at least twice to ensure that each screw is torqued down all the way.
Figure 8-30. Securing the Top Cover to the Chassis
7
5
8
6
1
2
9 10
3 4
