11-8 Exploded Views and Parts Lists: Interconnect Board and Assembly
11.8 Motorcycle Radio Remote-Mount Control Head with Speaker and
Microphone

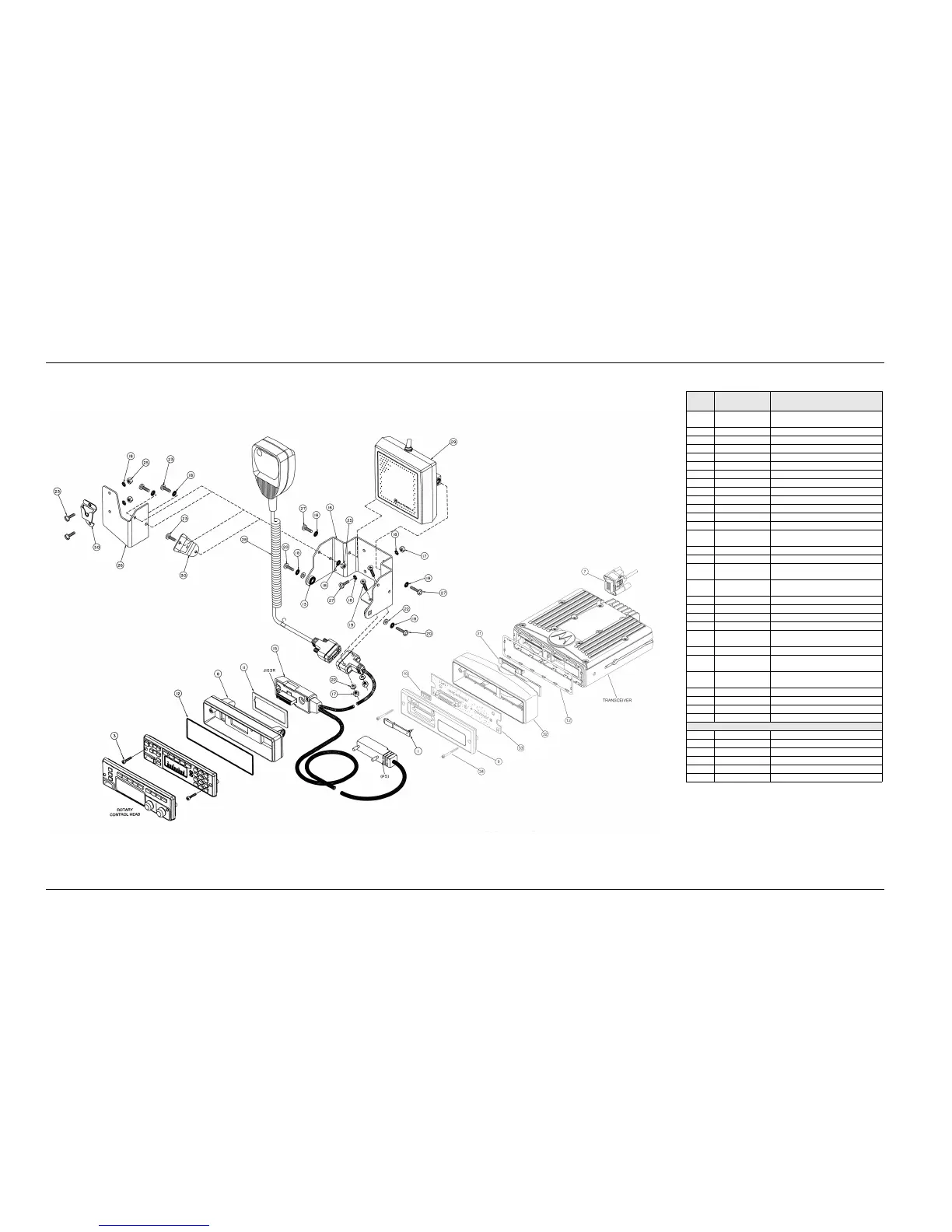

Figure 11-8. Motorcycle Radio Remote-Mount Control Head with Speaker and Microphone
Table 11-9. Motorcycle Radio Remote-Mount Control Head with
Speaker and Microphone Parts List
Item
No.
Motorola
Part No.
Description
– See Model Chart Motorcycle hardware kit
SECURENET
– See Model chart Motorcycle hardware kit
1 38-80064P01 Cap, SECURENET connector
3 03-80077M01 Screw, front-mount (4 used)
7 HLN6890_ Cable, accessory, motorcycle
8 15-80293L03 Housing, back remote rework
9 15-80062P12 Housing, front remote SECURENET
10 32-80063P02 Gasket, SECURENET
11 32-80231M01 Gasket
12 32-80289L02 Gasket, housing
13 43-80128N01 Spacer, trunnion (2 used)
14 32-85471E01 Seal, headbridge
15 See Model Chart Control-head cable, 22-conductor
16 07-80200P01 Bracket, control-head/speaker-
mounting
17 02-05681N03 Nut, hex, M5 x 0.8-6H x 8.87 (6 used)
18 04-00002647 Lockwasher #10 ext (14 used)
19 03-80114M05 Screw, machine, M5 x 0.8 x 30 mm
(2 used)
20 03-80114M04 Screw, machine, M5 x 0.8 x 16 mm
(2 used)
22 04-00128991 Washer, 0.234 x 0.5 x 0.048 (4 used)
23 03-07644M19 Screw, machine, 8-32 x 7/16 (4 used)
25 02-00001355 Nut, hex, 8-32 x 5/16 x 1/8 (4 used)
26 07-80201P01 Bracket, extension
27 03-80114M03 Screw, machine, M5 x 0.8 x 12 mm
(2 used)
28 See Model Chart Microphone and coiled cord
29 — Speaker (see Figure 11-14 on
page 11-11)
30 01-80743T91 Spring and bracket eyelet
(HLN5391A)
31 30-86019F01 Remote flex
32 15-85245E01 Housing, headbridge
33 HLN6884_ Motorcycle interconnect board
34 03-80077M07 Screw, control-head, M3 x 35 mm
Non-Referenced Parts
03-12002A01 Screw, self-drilling (2 used)
03-12002C01 Screw, self-drilling*
07-80357N01 Back-up plate*
01-80750T52 DC grounding wire
29-00824456 Lug*
07-80127N02 Trunnion, remote**
Note:
_= The latest version kit. When ordering, refer to your specific kit
for this suffix letter.
* = These parts are provided in the hang-up clip for mounting
the hang-up clip on surfaces that are not metallic and/
or are not grounded to the motorcycle chassis.
.**= Used to mount the control head when the speaker and
control head are mounted separately.
