11-10 Exploded Views and Parts Lists: Fuel-Tank Console Installation (Control Head and Speaker Mounted Together)
June 11, 2003 6881096C73-O
11.11 Fuel-Tank Console Installation (Control Head and Speaker Mounted Together)

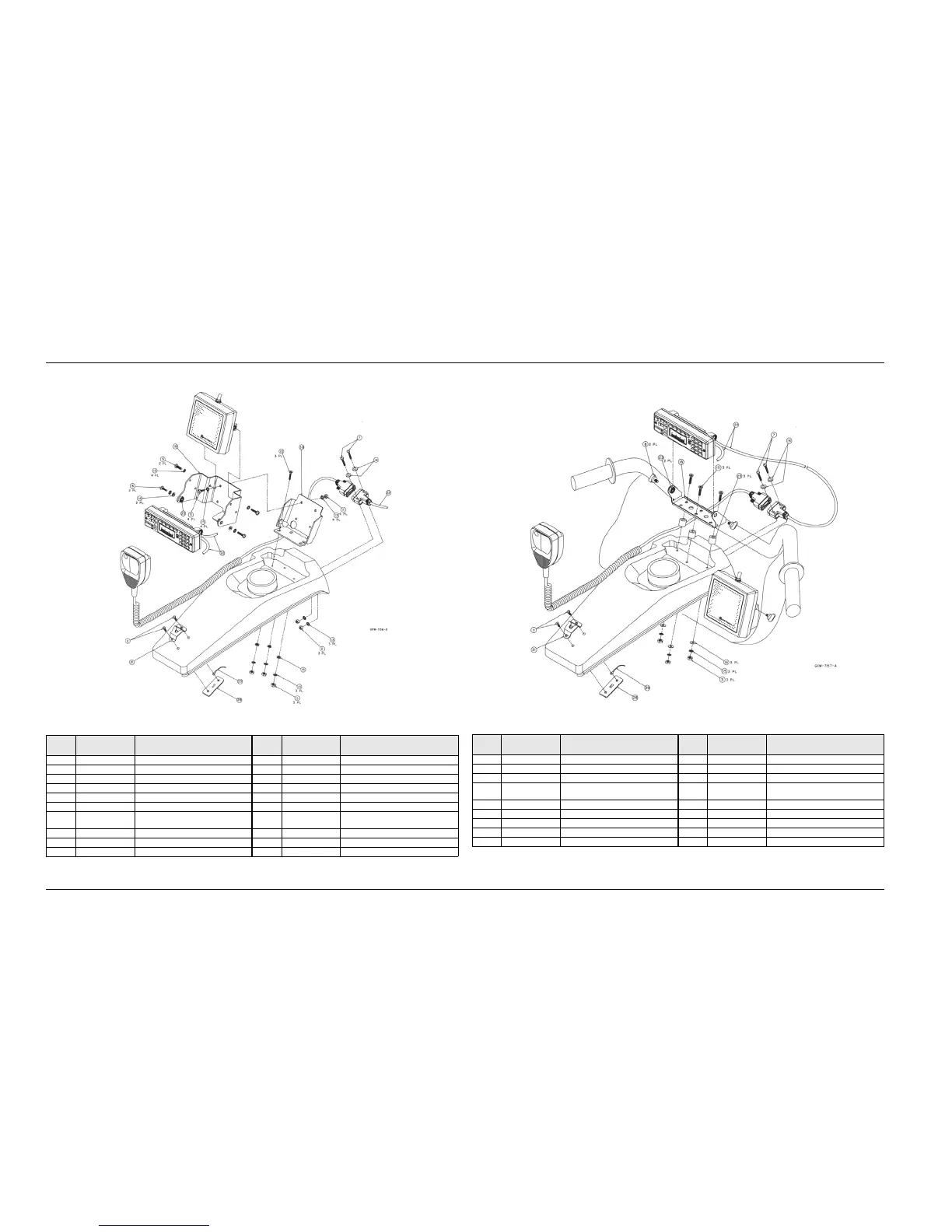

Figure 11-11. Fuel-Tank Console Installation (Control Head and Speaker Mounted Together) Exploded View
* These parts are provided in the hang-up clip for mounting the hang-up clip on surfaces that are not metallic and/or are not grounded to the
motorcycle chassis.
11.12 Fuel-Tank Console Installation (Control Head and Speaker Mounted
Separately)
Figure 11-12. Fuel-Tank Console Installation (Control Head and Speaker Mounted Separately) Exploded View
* These parts are provided in the hang-up clip for mounting the hang-up clip on surfaces that are not metallic and/or are not grounded to the
motorcycle chassis.
Table 11-12. Fuel-Tank Console Installation (Control Head and Speaker Mounted Together) Parts List
Item
No.
Motorola Part
No.
Description
Item
No.
Motorola Part
No.
Description
2 0205681N03 Nut, hex, M5 x 0.8-6H 8.87 (6 used) 23 4380128N01 Spacer, trunnion (4 used)
5 0380114M03 Screw, M5 x 0.8 x 12 (6 used) 28* 0780257N01 Plate, backup
6 0380114M04 Screw, M5 x 0.8 x 16 (2 used) 29* 0180750T52 Grounding wire, DC
7 0380114M05 Screw, M5 x 0.8 x 30 (2 used) See model charts Hardware kit, motorcycle
11* 0312002A01 Screw, self-drilling (2 used) See model charts Adapter kit, control head/speaker, incl:
13 0400002647 Lockwasher, #10 ext. tooth (19 used) 3 0200009644 Nut, 1/4-20 x 7/16 x 3/16 (3 used)
14 0400128991 Washer, flat 0.234 x 0.5 x 0.048 (4
used)
10 0300001908 Screw, machine, 114-20 x 3/4 (3 used)
19 0780200P01 Bracket, control head/speaker 15 0400139951 Lockwasher, 114 (3 used)
21* 0180743T91 Eyelet, spring & bracket 16 0400136592 Washer, flat, 1/4 (3 used)
22 See model charts Cable, control head 30 0780028R01 Bracket, mounting
Table 11-13. Fuel-Tank Console Installation (Control Head and Speaker Mounted Separately) Parts List
Item
No.
Motorola Part
No.
Description
Item
No.
Motorola Part
No.
Description
7 0380114M05 Screw, M5 x 0.8 x 30 (2 used) 29* 0180750T52 Grounding wire, DC
8 0384244C06 Screw, wing, black (4 used) See model charts Hardware kit, motorcycle
11* 0312002A01 Screw, self-drilling (2 used) See model charts Adapter kit, control head/speaker, incl:
14 0400128991 Washer, flat 0.234 x 0.5 x 0.048 (4
used)
3 0200009644 Nut, 1/4-20 x 7/16 x 3/16 (3 used)
18 0780127N01 Trunnion, remote mount 10 0300001908 Screw, machine, 114-20 x 3/4 (3 used)
21* 0180743T91 Eyelet, spring & bracket 15 0400139951 Lockwasher, 114 (3 used)
22 See model charts Cable, control head 16 0400136592 Washer, flat, 1/4 (3 used)
23 4380128N01 Spacer, trunnion (4 used) 25 4380042R02 Spacer, bushing (3 used)
28* 0780257N01 Plate, backup 32 Screw
