Motorola Astro XTL 5000 Basic Service Manual

Chapter 6 Radio Alignment Procedures
6.1 Introduction
This section describes both receiver and transmitter radio alignment procedures.
6.2 ASTRO XTL 5000 Tuner Software
A personal computer (PC) and Tuner Software are required to align the radio. Please refer to the
CPS Programming Installation Guide (Motorola part number 6881095C44) for installation and setup
procedures for the software. To perform the alignment procedures, the radio must be connected to
the computer and to a universal test set, as shown in the following figure.

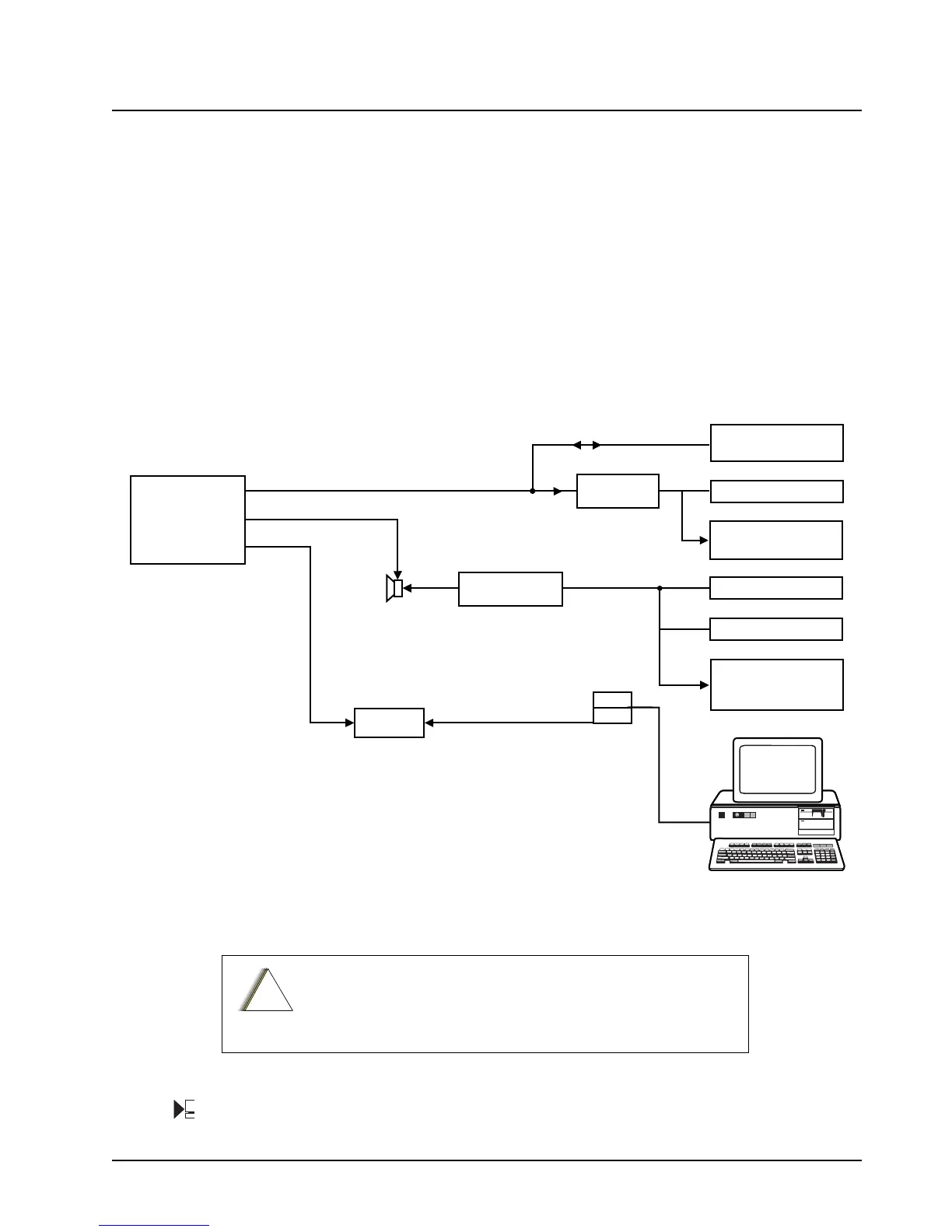

Figure 6-1. Radio Alignment Test Setup
Select Tuner from the Start menu. To read the radio, use the File
➝ Read Device menu or click on
. Figure 6-2 on page 6-2 illustrates how the alignment screens are organized. To access a
screen, double-click on the desired screen name in the Tuner menu.
These procedures should only be attempted by qualified
service personnel. Failure to perform alignment procedures
properly may result in seriously degraded radio or system
performance.
RX
HKN6155
TX
GND
COMMUNICATIONS
ANALYZER
WATTMETER
RADIO
MATCHING
TRANSFORMER
CONTROL
HEAD
TEST
SPEAKER
RF PORT
For dash-mount applications, the program/flash cable (HKN6155)
is connected to the microphone port on the control head.
For remote-mount applications, the program/flash cable is connected
to the FLASHport connector on the front face of the radio (P506).
Do not attempt to use a microphone while the cable is connected.
*
*
COMPUTER
SINAD METER
AC VOLTMETER
RX
COMMUNICATIONS
ANALYZER
Vert/SINAD Dist/
DVM Counter
OR
AGILENT 8901
MODULATION
ANALYZER
RF
ATTENUATOR
MAEPF-27657-O
!
