Motorola Astro XTL 5000 Basic Service Manual

Exploded Views and Parts Lists: Motorcycle Interconnect Board and Assembly 11-7
6881096C73-O June 11, 2003
11.6 Motorcycle Interconnect Board and Assembly

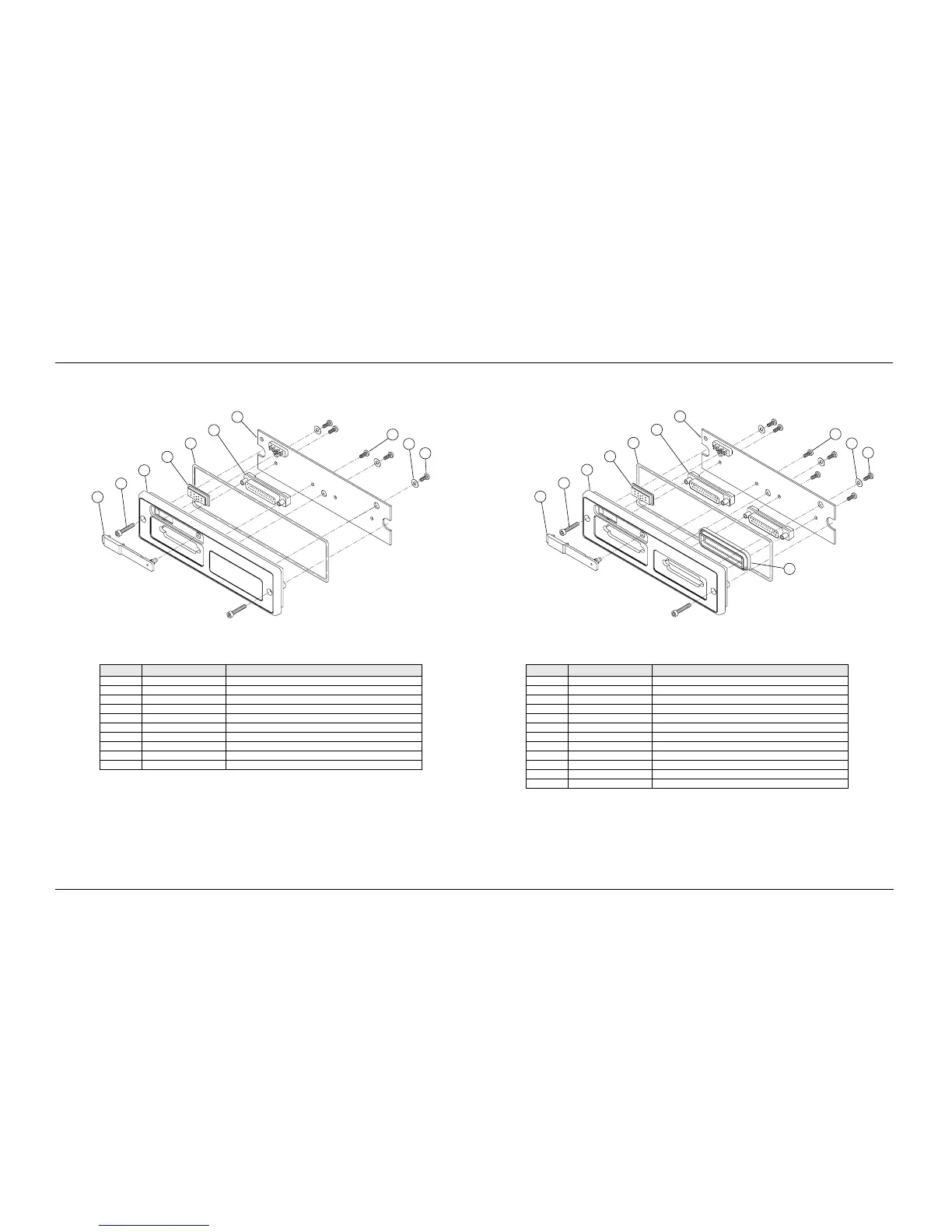

Figure 11-6. Motorcycle Interconnect Board and Assembly Exploded View
11.7 Interconnect Board and Assembly
This illustration (Figure 11-7) represents the interconnect board for all control heads, except the motorcycle.
Figure 11-7. Interconnect Board and Assembly Exploded View
Table 11-7. Motorcycle Interconnect Board and Assembly Parts List
Item No. Motorola Part No. Description
1 3880064P01 CAP, DVP Connector
2 0380077M07 SCREW, Front Mount
3 1580062P12 HOUSING, Remote Front
4 3280063P01 GASKET, DVP Connector
5 3280289L02 GASKET, O-Ring
6 0980159P01 CONNECTOR, D-Sub
7 HLNxxxx_ BOARD, Interconnect (See dealer for applicable kit number.)
8 300139581 SCREW, Mach 4-40X5/16 P
9 400131974 WASHER, Flt.130.312
10 0310945A11 SCREW, Tapping P3.12X1.27X8
Notes: _ = The latest version kit. When ordering, refer to your specific kit for this suffix letter.
The remote-mount flex (P/N 3085019F01) is used to connect all interconnect assemblies to the
transceiver.
1
2
3
4
5
6
7
8
9
10
MAEPF-27661-O
Table 11-8. Interconnect Board and Assembly Parts List
Item No. Motorola Part No. Description
1 3880064P01 CAP, DVP Connector
2 0380077M07 SCREW, Front Mount
3 1580062P11 HOUSING, Remote Front
4 3280063P01 GASKET, DVP Connector
5 3280289L02 GASKET, O-Ring
6 0980159P01 CONNECTOR, D-Sub
7 HLNxxxx_ BOARD, Interconnect (See dealer for applicable kit number.)
8 300139581 SCREW, Mach 4-40X5/16 P
9 400131974 WASHER, Flt.130.312
10 0310945A11 SCREW, Tapping P3.12X1.27X8
11 3280025R01 GASKET, Remote
Not shown 1580005G01* COVER, Dust
Notes: _ = The latest version kit. When ordering, refer to your specific kit for this suffix letter.
* = Used when the option cable is not used or when the radio is stowed.
The remote-mount flex (P/N 3085019F01) is used to connect all interconnect assemblies to the
transceiver.
1
2
3
4
5
6
7
8
9
10
11
MAEPF-27662-O
