Motorola Astro XTL 5000 Basic Service Manual

6881096C73-O June 11, 2003
Disassembly/Reassembly Procedures: Replacement Procedures 8-29
18. Insert the control head to the transceiver.

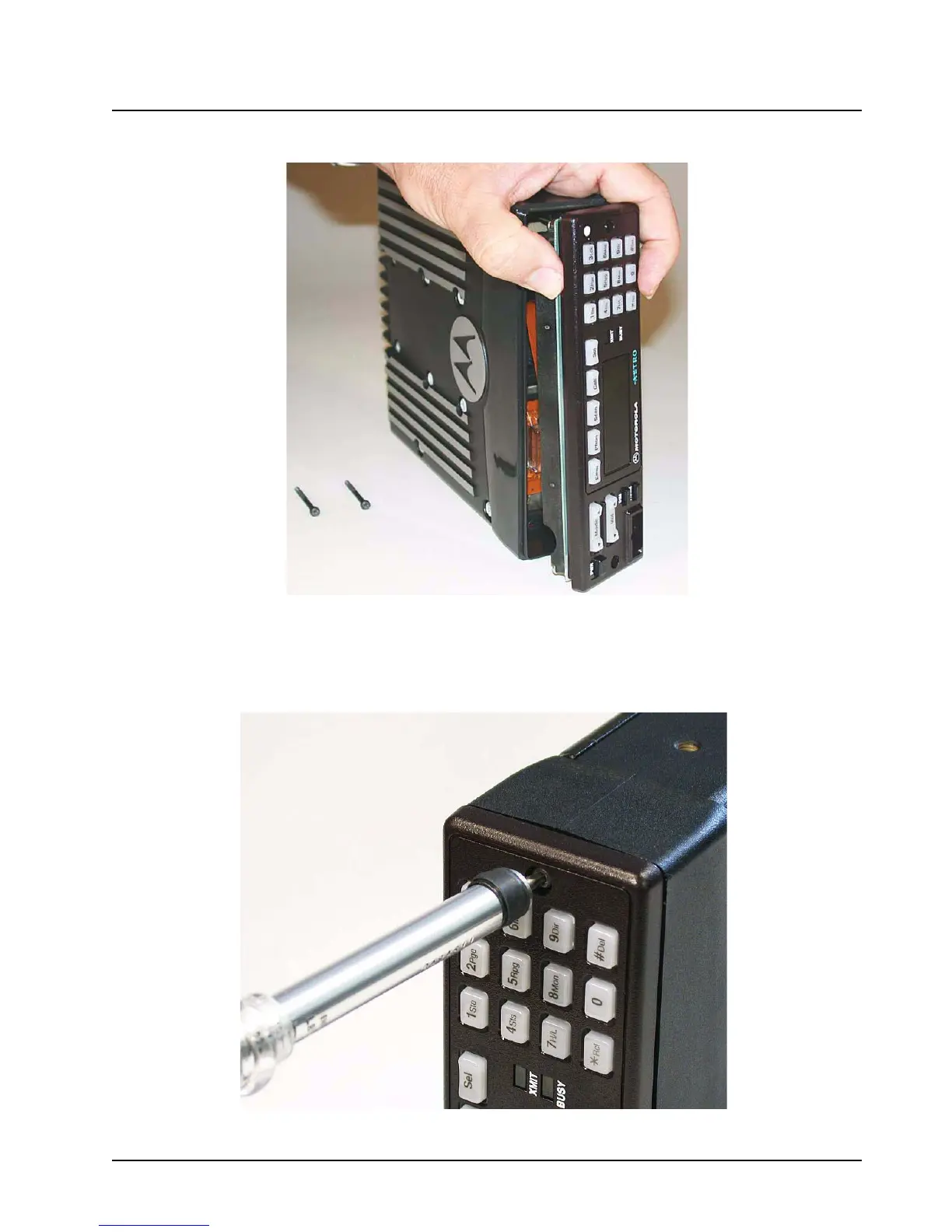

Figure 8-36. Inserting the Control Head Into the Transceiver
19. Secure the control head to the transceiver with the two screws using the 2.5 mm hex-key bit.
Apply 6-8 in.-lbs. of torque for each screw.
Figure 8-37. Installing the Control-Head Screws
