Disassembly/Reassembly Procedures: Replacement Procedures 8-9
3. Firmly grasp the front panel of the control head, and carefully remove the control-head
assembly from the radio. Be careful not to pull on the attached flex.

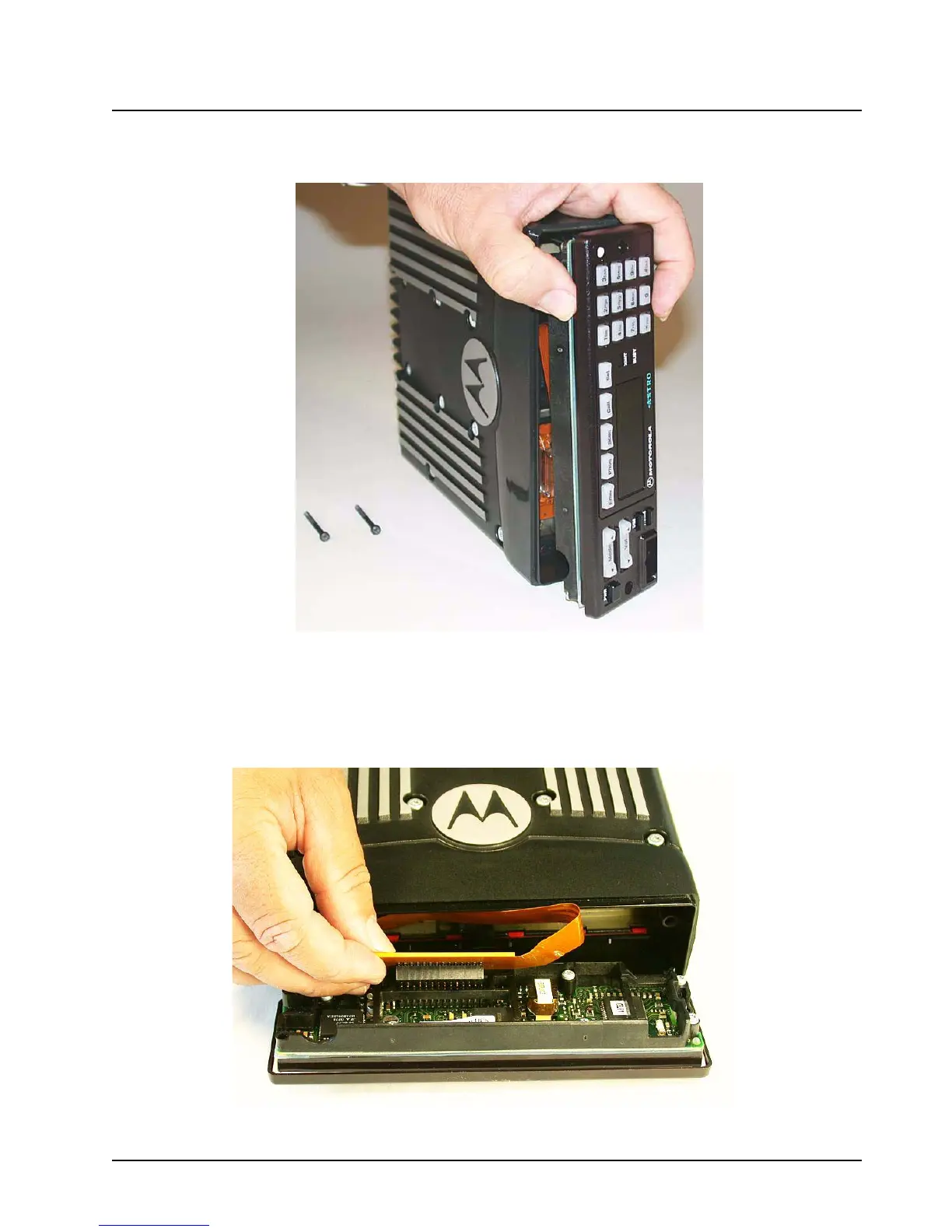

Figure 8-4. Removing the Control Head
4. Lay the control head face down on a clean, flat surface, being careful not to scratch or mar
the face of the display.
5. Carefully disconnect the control-head flex from the control head or remote interconnect
panel, and set the control head aside.
Figure 8-5. Removing the Flex (Control-Head Connector)
