6881096C73-O June 11, 2003
Disassembly/Reassembly Procedures: Replacement Procedures 8-21
3. Tilt the main board and slide it into place, taking care to line up the RF and DC connectors
with the holes in the back of the chassis. Push back and down on the front of the main board
to fully seat it.
Ensure that the main board alignment holes are positioned over the chassis alignment
bosses and that the main board is fully seated.

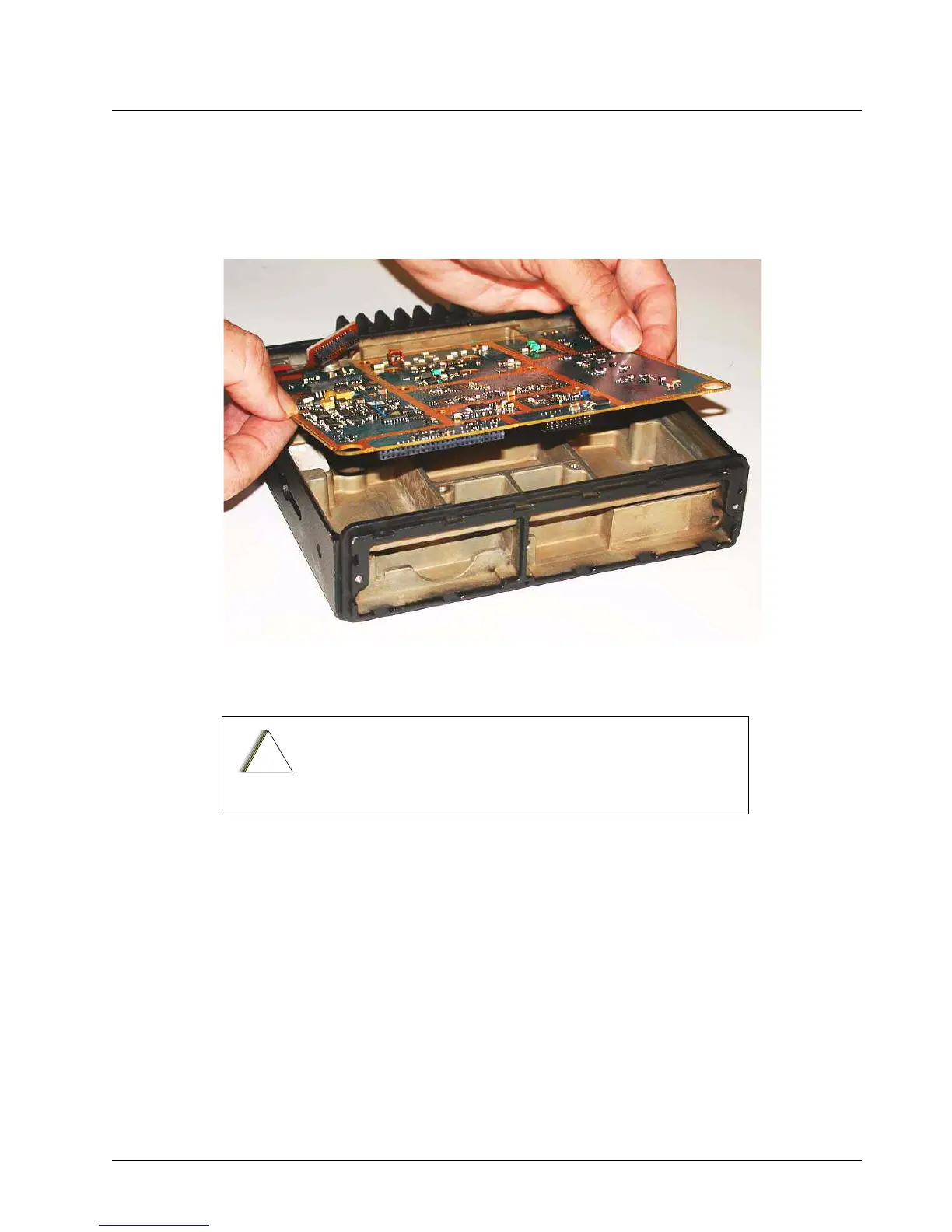

Figure 8-23. Inserting the Main Board into the Chassis
Do not leave the main board in the chassis for extended
periods of time without the RF/DC retention clips, or damage
to the board connectors may occur.
!
C a u t i o n
