June 11, 2003 6881096C73-O
8-12 Disassembly/Reassembly Procedures: Replacement Procedures
9. For secure option-equipped radios, do the following prior to disassembly of the transceiver:
a. Remove the two screws holding the secure (UCM) shield in place.
b. Pull the UCM shield away from the assembly and remove it.
c. Insert a flathead screwdriver into the space in the upper-left corner of the secure pocket,
and gently pry the secure interface board (universal encryption module) away from the
chassis.

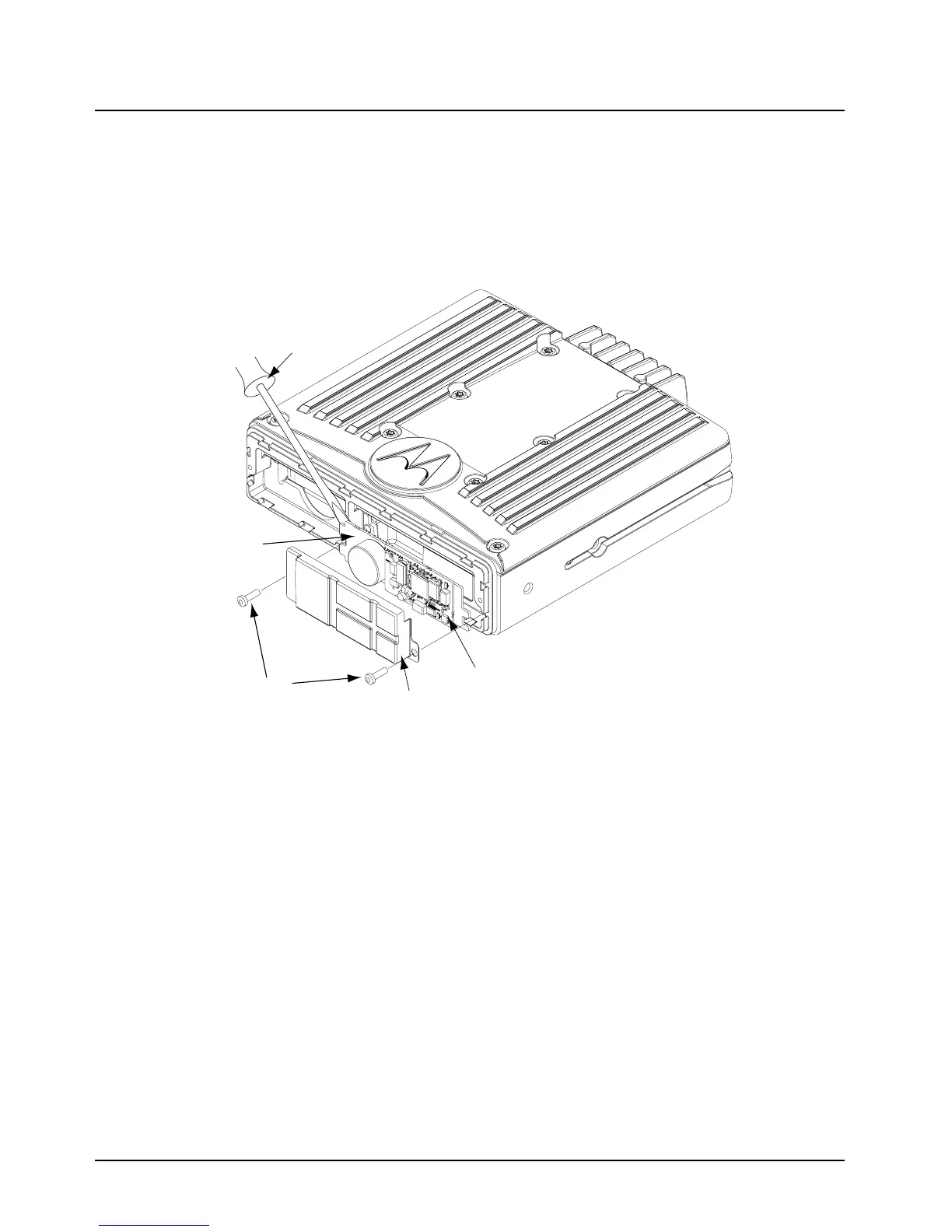

Figure 8-10. Removing the Secure Interface Board
Universal
Encryption
Module
Secure
Shield
Screws
Secure
Interface
Board
Flat
Blade
Screwdriver
MAEPF-27658-O
