June 11, 2003 6881096C73-O
8-8 Disassembly/Reassembly Procedures: Replacement Procedures
8.2.4.2 Reassembly
1. Reconnect the interconnect flex to the radio, noting proper alignment of the mating
connections.
2. Reassemble the front panel into the radio and replace the screws.
3. Torque the screws to 6-8 in.-lbs.
8.2.5 Radio Disassembly
Use the following procedure to disassemble your radio:
1. Ensure all accessory connections, power, antenna, and microphone are unplugged.
If the radio is a remote-mount radio, disconnect the remote-mount control cable from the front
of the transceiver.
2. Remove the two front control-head screws using a 2.5 mm hex-key bit. Save them for later
use.

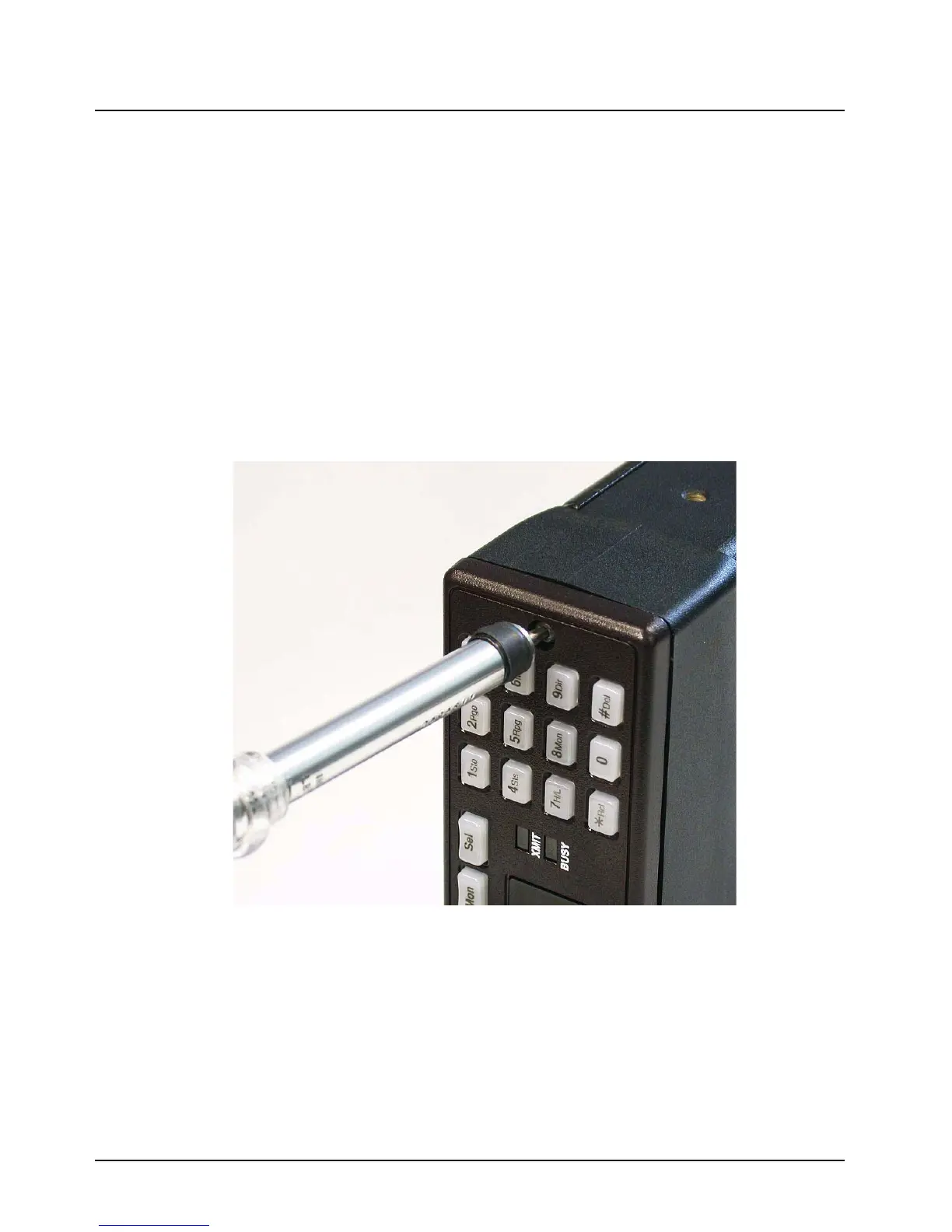

Figure 8-3. Removing the Front Panel Screws
To Next Page
